Rethinking Crusher Station Design: Why Equipment Layout Matters in Rock Breaking Operations

Rethinking Crusher Station Design: Why Equipment Layout Matters in Rock Breaking Operations

In mining and quarrying processing, crusher performance is often associated with throughput, power consumption, and equipment capacity. Yet another factor deserves equal attention: the way the crushing station is designed.

The arrangement of the crusher, feed hopper, grizzly, access platforms, and supporting structures determines how efficiently the entire station operates. When oversize rocks become trapped or material flow is interrupted, the available working space and the accessibility of the affected area can directly influence how quickly normal production resumes.

This is where fixed rock breaker boom system becomes more than a rock-breaking tool. When considered during the design of a crushing station, they can form an integral part of a more practical and efficient plant layout.

Space Is a Valuable Engineering Resource

Crushing stations are rarely designed with unlimited space. In underground mines, available dimensions may be restricted by tunnel profiles, geological conditions, and existing infrastructure. In surface operations, structural steelwork, conveyors, maintenance platforms, and other equipment compete for the same working area.

Introducing additional mobile equipment into these environments is not always practical. Movement can be restricted, access routes may be limited, and positioning equipment near the crusher can create further operational complications.

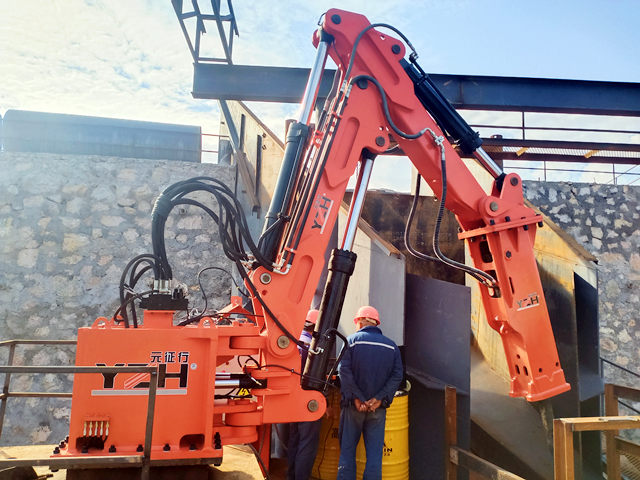

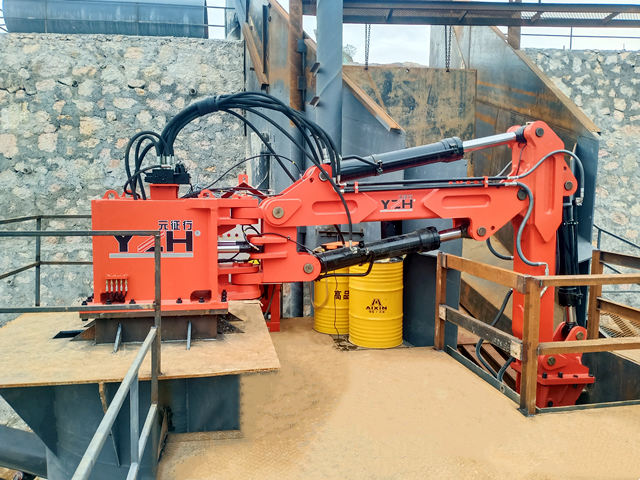

A fixed rock breaker boom system offers a different approach. Permanently installed at a carefully selected position, it can provide access to critical working areas without requiring a separate machine to enter the station for each intervention.

The key is to evaluate the boom's working envelope alongside the rest of the installation rather than treating it as an independent addition.

Designing Around the Real Working Area

A successful installation begins with understanding where rock breaking is actually required.

For example, a primary crusher may experience blockages at several points around its feed opening. A grizzly installation may require access across a wider screening area, while an ore pass application may involve restricted access and different positioning requirements.

These differences influence the mounting location, boom geometry, articulation range, and breaker orientation.

During engineering, designers should consider the complete working envelope, potential interference with surrounding structures, and the positions needed to reach common blockage locations. Three-dimensional modelling can help evaluate clearances and identify potential conflicts before equipment is manufactured or installed.

This process can reduce the need for expensive modifications later in the project.

Making Better Use of Existing Infrastructure

Not every improvement requires a completely new crushing station.

Many mining facilities operate with established structures that have served production requirements for years. As throughput targets change or equipment is upgraded, these facilities may need additional rock-breaking capability without extensive reconstruction.

A retrofit installation can provide a practical option, provided the existing structure is suitable for the loads involved and the required operating clearances can be achieved.

The assessment should include the mounting foundation, structural loading, hydraulic power supply, electrical interfaces, and maintenance access. Where necessary, modifications to the supporting steelwork or foundation may be required.

By evaluating these factors early, plant operators can determine whether a fixed rock breaker boom system can be incorporated into the existing layout and what engineering work the installation will involve.

Maintenance Access Should Be Part of the Design

Space planning is not only about where equipment operates. It is also about how that equipment will be inspected, serviced, and repaired.

Hydraulic hoses, lubrication points, breaker tools, and major components all require appropriate access. If these areas are difficult to reach, routine maintenance can become unnecessarily complicated.

A well-planned layout considers service clearances and component removal paths from the beginning. It also accounts for safe isolation procedures and the movement of maintenance personnel.

These details may have little effect on the initial appearance of a crushing station, but they can make a meaningful difference throughout the equipment's service life.

From Individual Machines to Integrated Solutions

Modern crushing plants increasingly require equipment to work together as a coordinated system. A fixed rock breaker boom system should therefore be considered in relation to the crusher, feed arrangement, control station, and surrounding infrastructure.

Depending on the application, integration may include remote-control equipment, camera systems, electrical interlocks, and connections to existing plant control systems.

The objective is to create an installation in which each component has a clearly defined role and the complete system supports the operating requirements of the plant.

Good integration begins with good engineering. The earlier equipment suppliers and plant designers coordinate, the easier it becomes to address layout constraints, installation requirements, and future maintenance needs.

YZH: Engineering for Real-World Applications

At YZH, we recognize that the performance of a fixed rock breaker boom system depends on more than the specifications of the boom and hydraulic breaker. Its installation environment, working envelope, mounting arrangement, and integration with surrounding equipment are equally important considerations.

Our solutions are developed for demanding applications across mining, quarrying, aggregate processing, and other industrial sectors, with configurations tailored to project-specific requirements.

Whether the project involves a new crushing station or an existing facility requiring an upgrade, careful application engineering helps ensure that the selected system fits the available space and performs the tasks for which it is intended.

An efficient crushing station is not simply a collection of high-performance machines. It is a coordinated system in which every piece of equipment has the space, access, and capability it needs to do its job.
