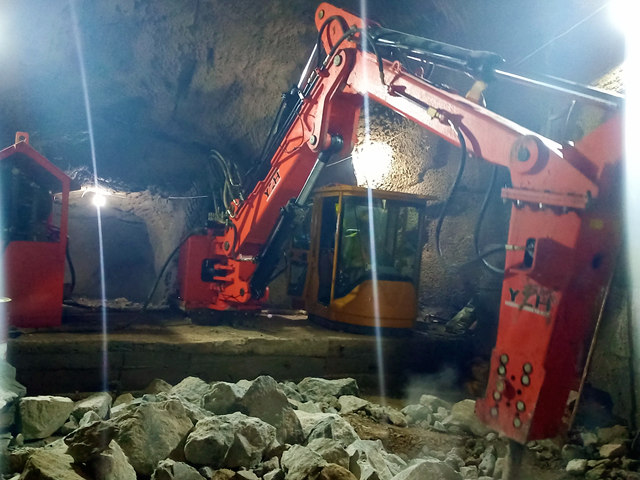

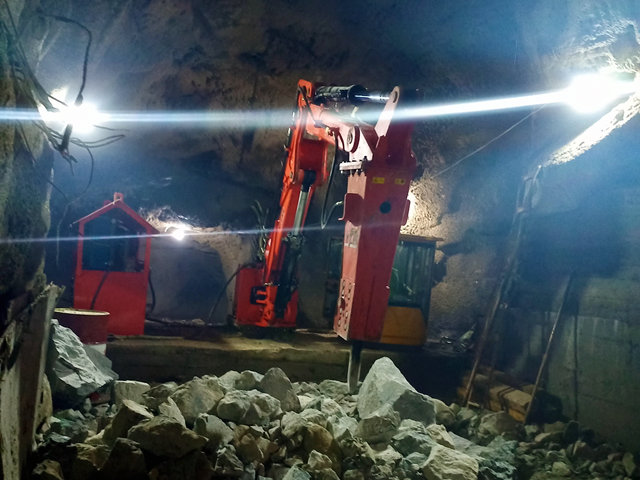

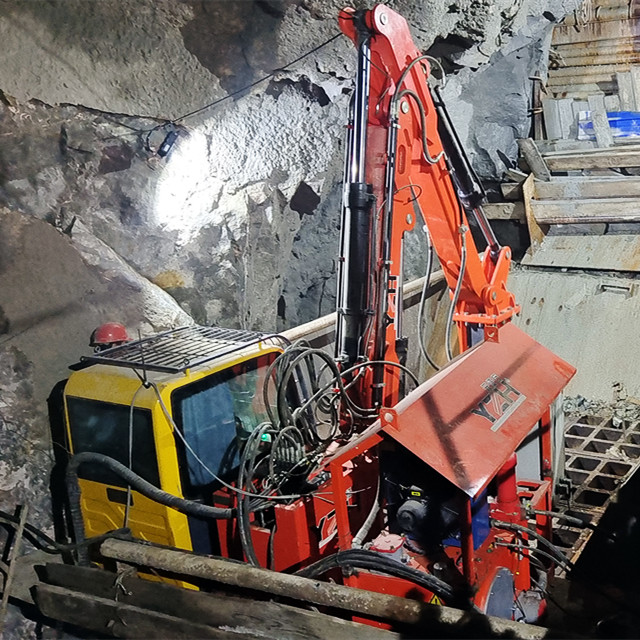

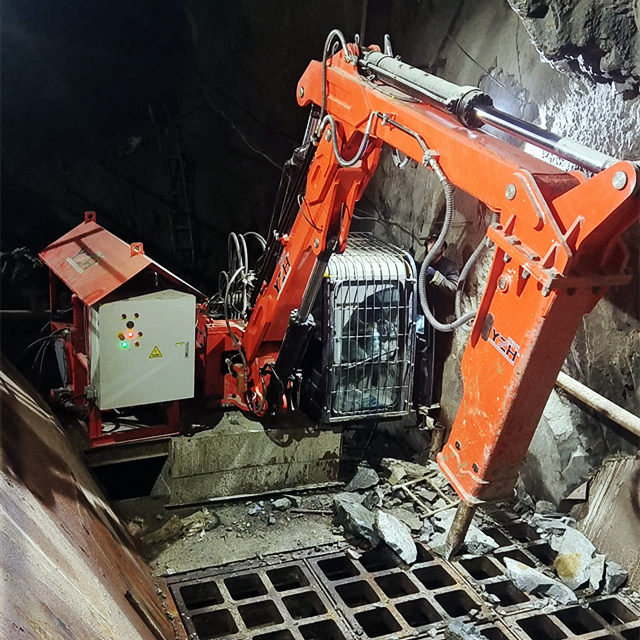

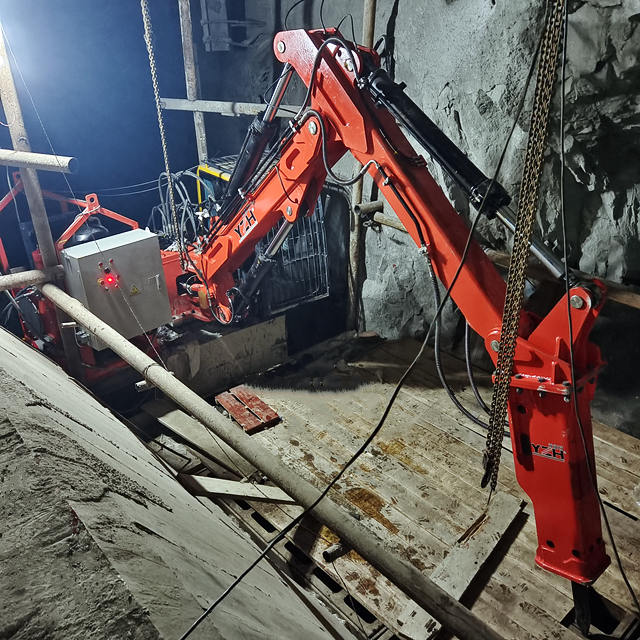

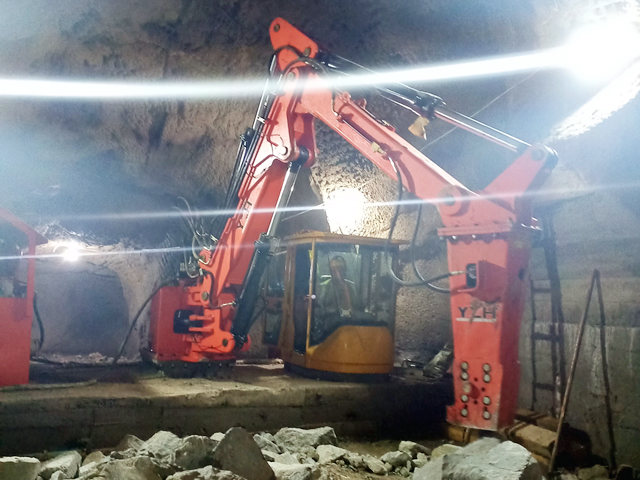

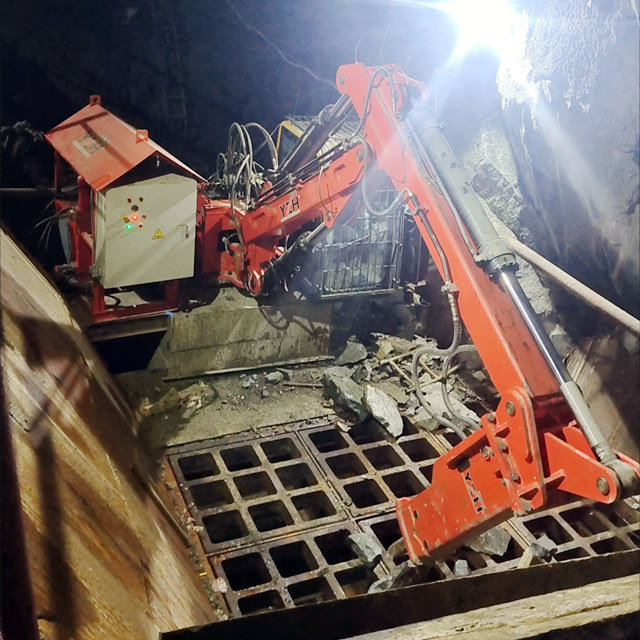

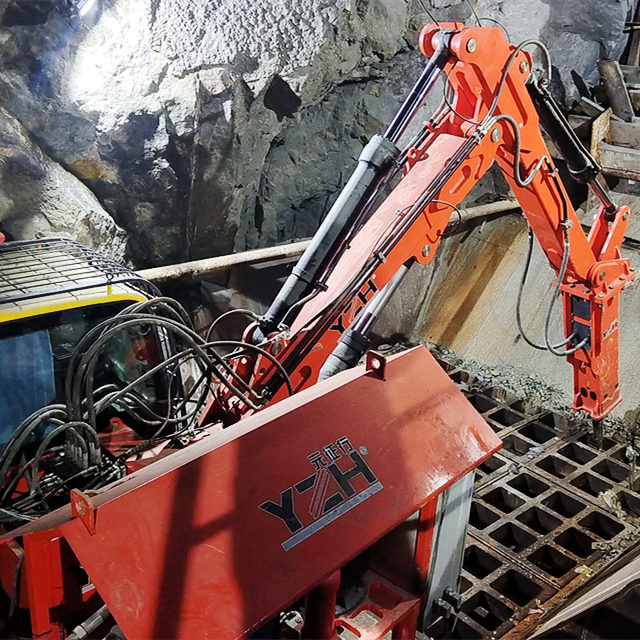

YZH Cabin-Controlled Pedestal Rock Breaker Boom Systems at Underground Environment
YZH pedestal rock breaker boom systems are robust and versatile hydraulic machines designed to break oversized rocks, boulders, or solidified materials in heavy-duty industrial settings. Mounted on a fixed pedestal, YZH pedestal rock breaker boom systems enhance productivity and safety in operations where manual rock breaking or explosive blasting is impractical or hazardous.
Functions of YZH Pedestal Rock Breaker Boom Systems
The primary function of YZH pedestal rock breaker boom systems are to fragment large rocks or hardened material accumulations that obstruct crushers, grizzly screens, feeders, or hoppers in mining, quarrying, and material processing. They ensure smooth material flow, prevent blockages, and reduce downtime in production lines.
Key Features of YZH Pedestal Rock Breaker Boom Systems
1. Heavy-duty construction: Built with high-strength steel, YZH pedestal rock breaker boom systems withstand harsh environments, extreme loads, and repetitive impacts.
2. Hydraulic power: Operated by a hydraulic system, YZH pedestal rock breaker boom systems deliver precise, high-impact blows via a hydraulic hammer attached to the boom.
3. Safety enhancements: Remote-controlled operation of YZH pedestal rock breaker boom systems minimizes worker exposure to hazardous zones, falling debris, or vibrations.
4. Modular Design: YZH pedestal rock breaker boom systems can be customized with different boom lengths, hammer sizes, and mounting configurations to suit specific site requirements.
Advantages of YZH Pedestal Rock Breaker Boom Systems
1. Increased efficiency: YZH pedestal rock breaker boom systems reduce reliance on manual labor or explosives, speeding up material processing.
2. Cost-effective: YZH pedestal rock breaker boom systems lower operational costs by minimizing crusher blockages and maintenance downtime.
3. Enhanced safety: Operators can control YZH pedestal rock breaker boom systems from a safe distance, reducing workplace accidents.
4. Durability: YZH pedestal rock breaker boom systems are engineered for longevity, even in abrasive or high-vibration environments.
5. Environmental compliance: YZH pedestal rock breaker boom systems eliminate the noise, dust, and air pollution associated with blasting.
Specification of YZH Pedestal Rock Breaker Boom Systems:
| Model No. | Unit | BB600 |
| Max. horizontal working radius | mm | 8430 |
| Max. vertical working radius | mm | 6330 |
| Min. vertical working radius | mm | 2300 |
| Max. working depth | mm | 5810 |
| Rotation | ° | 170 |
