YZH Static Pedestal Boom System– Grizzly Feeder’s Essential Clearing Companion
In the front line of material handling, the grizzly feeder plays a vital role in filtering oversized material before it reaches the primary crusher. But when large boulders clog the bars or form bridging layers, production grinds to a halt. That's where YZH static pedestal boom system comes in — providing precise, automated breaking power to keep your operation flowing.

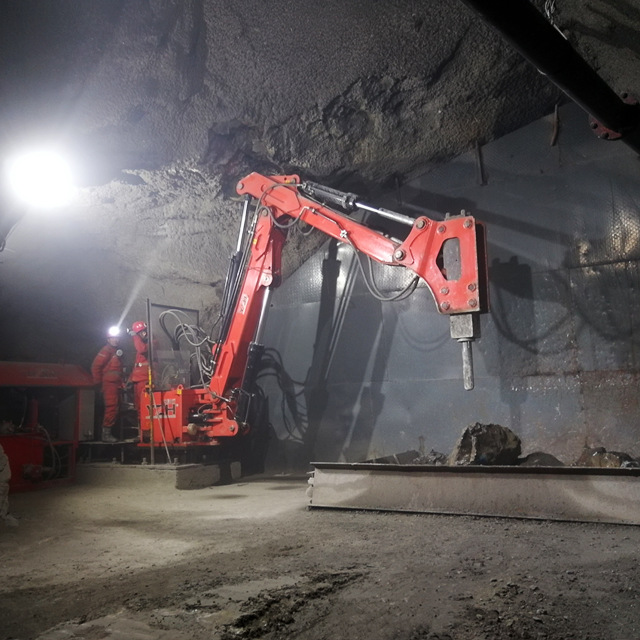

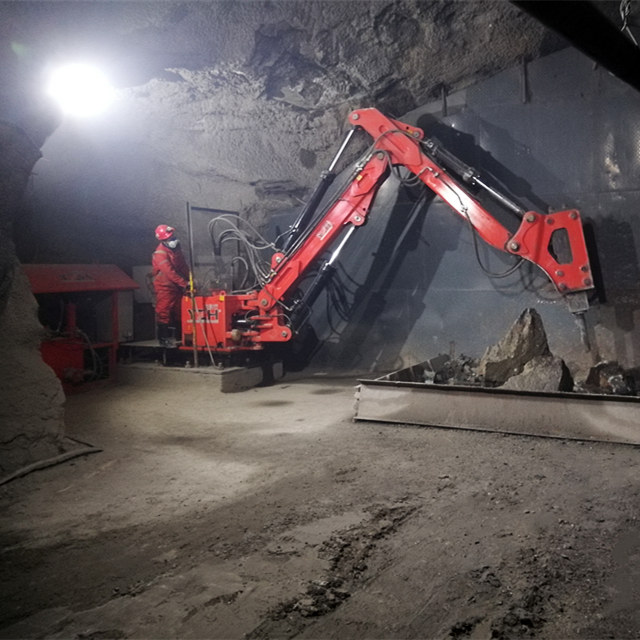

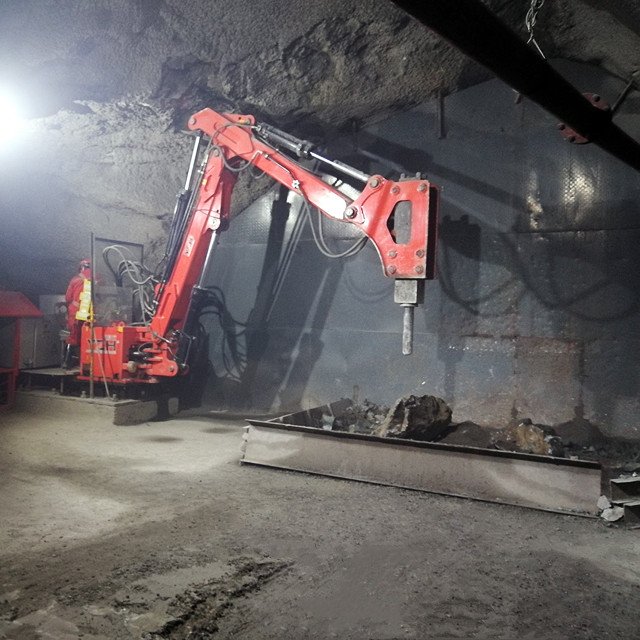

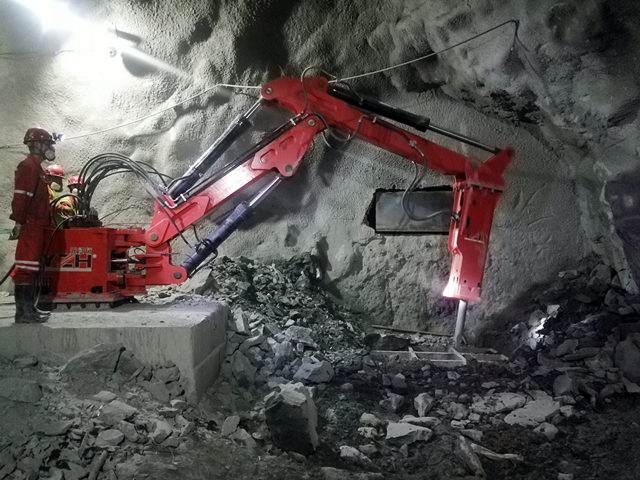

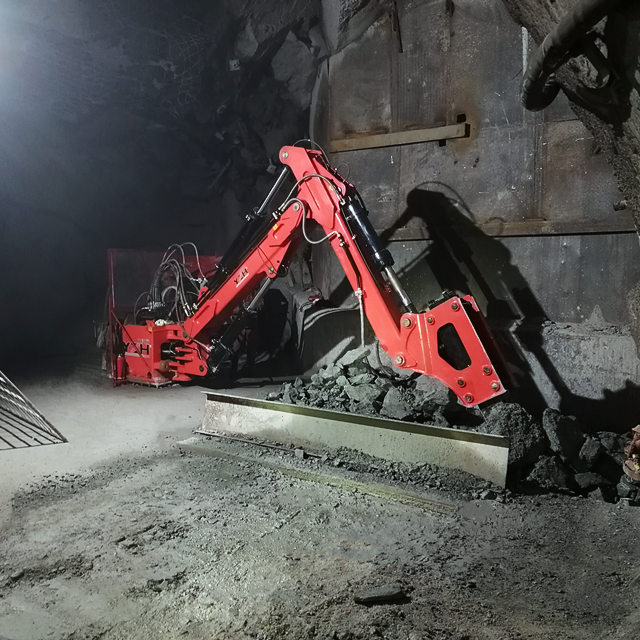

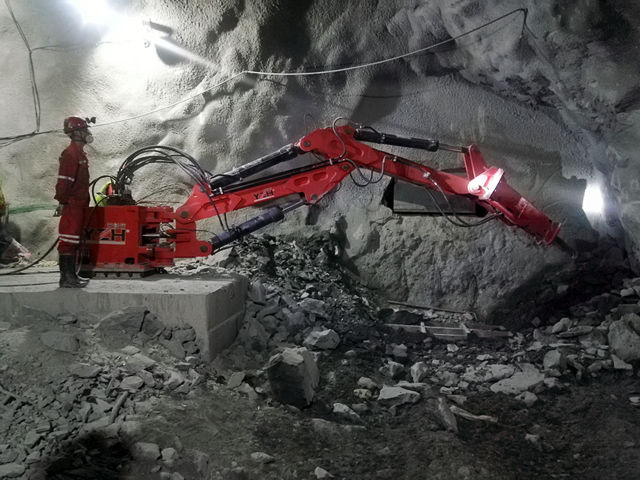

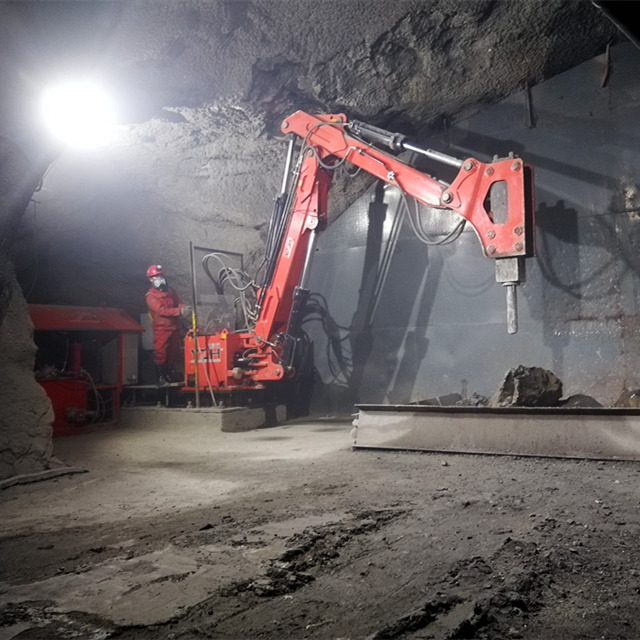

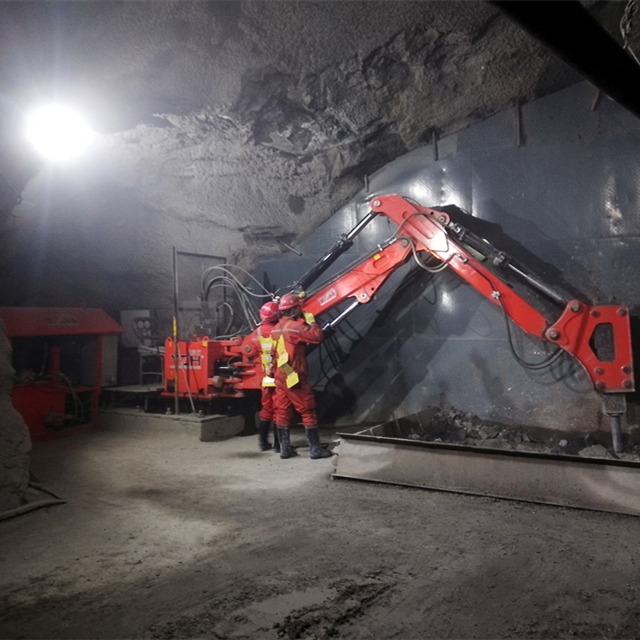

Installed adjacent to the grizzly, YZH static pedestal boom system is designed to eliminate oversize jams, reduce reliance on risky manual labor, and optimize the efficiency of your entire crushing circuit.
Optimized for Oversize Management
YZH static pedestal boom system features a pedestal-mounted boom paired with a high-impact hydraulic hammer, purpose-built to handle rock too big for the grizzly's bar spacing. With programmable or manual control, it effortlessly breaks up stuck material or pushes it through the grid — restoring uninterrupted flow to downstream processes.
Whether you're processing shot rock, blasting ore, or exploiting aggregate, YZH static pedestal boom system ensures your grizzly works at full capacity, without constant operator intervention.
Key Components & Performance Features
Rotating Boom – Engineered for full coverage of the grizzly area with smooth, powerful movement.
Heavy-Duty Hydraulic Hammer – Capable of fracturing even the hardest stone types.
Rigid Pedestal – Provides secure, vibration-resistant anchoring on concrete or structural steel.
Remote or Local Operation – Can be controlled from a safe distance using joystick stations or integrated control panels.
Durable Hydraulic System – Designed for continuous use with stable pressure and minimal maintenance.
What This System Delivers
1. Faster Material Throughput
No more delays due to bridging — the breaker keeps material moving and evenly fed.
2. Increased Equipment Life
Prevents damaging oversized material from reaching the crusher inlet.
3. Fewer Shutdowns
Eliminates frequent stoppages to manually remove or blast oversize rocks.
4. Safer Work Conditions
Reduces risk to personnel by replacing dangerous clearing methods near grizzlies.
5. Year-Round Reliability
Performs consistently in hot, cold, wet, or dusty environments — built for tough sites.
Where It Belongs
1. Primary Dump Stations in Mining Sites
Positioned over grizzly hoppers receiving raw material directly from haul trucks.
2. Aggregate and Quarry Grizzly Installations
To manage irregular rock sizes and protect crushing systems from overload.
3. Cement and Lime Plants
Where efficient pre-crushing size control is essential for kiln or mill input.
4. Portable and Semi-Mobile Systems
Can be configured to integrate with modular grizzly feeders or relocatable plants.
Adaptable to Your Plant Layout
Each YZH static pedestal boom system is customized to match your grizzly's size, orientation, and work cycle. Available in various boom lengths, breaker energy ratings, and hydraulic configurations — it's a flexible solution to a universal challenge.
Specification of YZH Static Pedestal Boom System
| Model No. | Unit | BBN450 |
| Max. horizontal working radius | mm | 6500 |
| Max. vertical working radius | mm | 5430 |
| Min. vertical working radius | mm | 2235 |
| Max. working depth | mm | 3370 |
| Rotation | ° | 170 |
