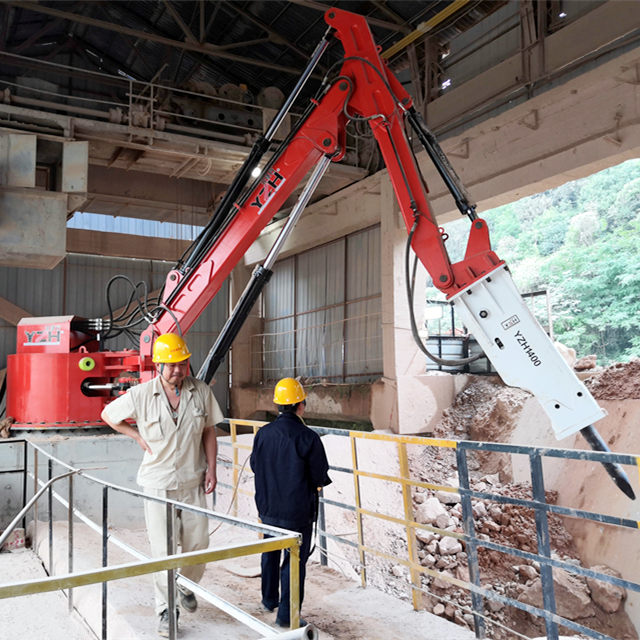

YZH fixed boom rock breaker system represents a robust integration of hydraulic engineering and structural durability, purpose-built to handle oversize rocks and material jams at the critical inlet points of crushers and hoppers. Whether positioned over jaw crushers, gyratory crushers, dump hoppers, or grizzly feeders, this fixed boom solution empowers operations with uninterrupted material flow, heightened safety, and improved equipment longevity.

From open-pit mineral extraction to deep underground ore processing, our stationary boom systems deliver reliability in every strike—day after day, shift after shift.

Complete System Composition

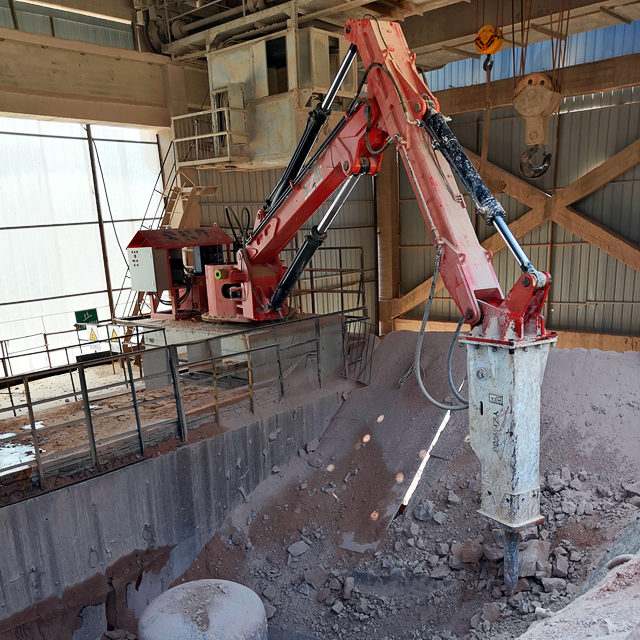

1. Foundation Pedestal

Engineered steel pedestal ensures structural stability.

Shock-absorbing base options mitigate vibration impact.

Multiple geometries (round, rectangular, or lattice structure) for flexible installation.

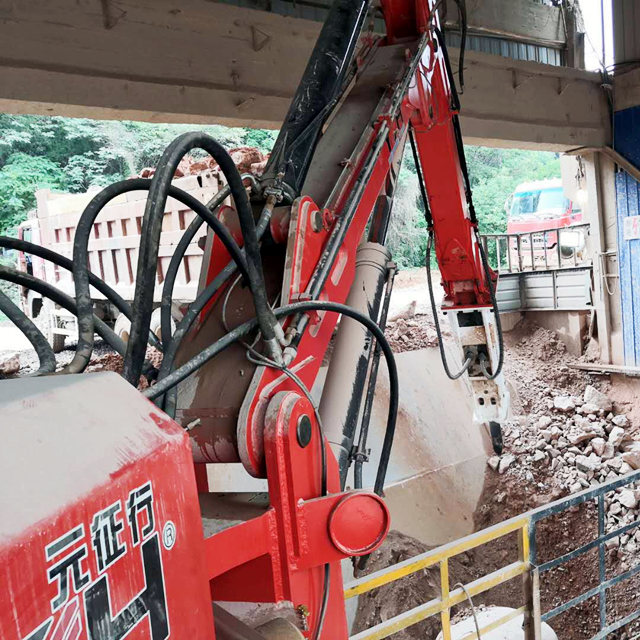

2. Hydraulic Boom Mechanism

Articulated booms with 2–3 pivot points for wide spatial coverage.

Reinforced box-section design for strength under dynamic load.

Grease-lubricated joints, replaceable bushings, and hardened pins.

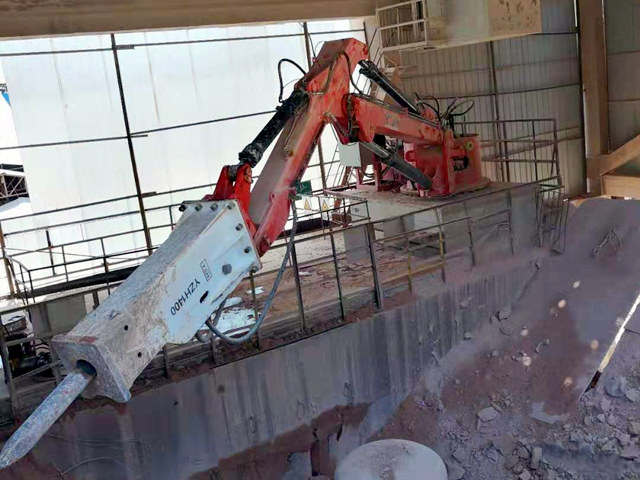

3. Hydraulic Rockbreaker Tool

Available in various energy classes to suit site requirements.

Compatible with interchangeable tips: moil, chisel, wedge, blunt.

Delivers targeted impact to break bridged or oversized material.

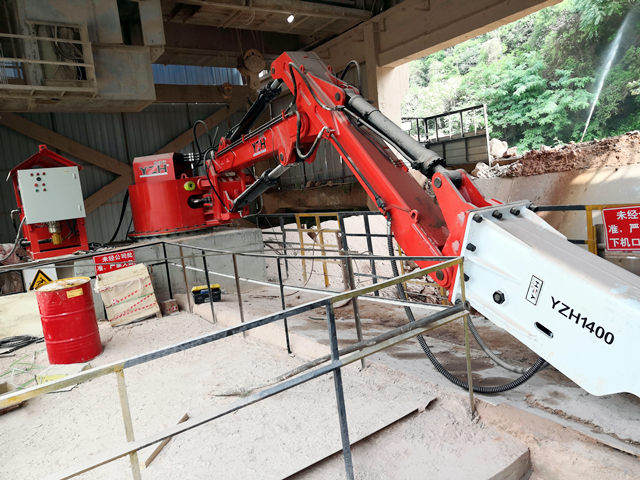

4. Hydraulic Power Unit (HPU)

High-pressure hydraulic circuit with load-sensing logic.

Enclosed reservoir with inline and return filtration, thermostatic cooling, and pressure relief.

Option of diesel engine drive for off-grid applications.

5. Operator Interface & Control System

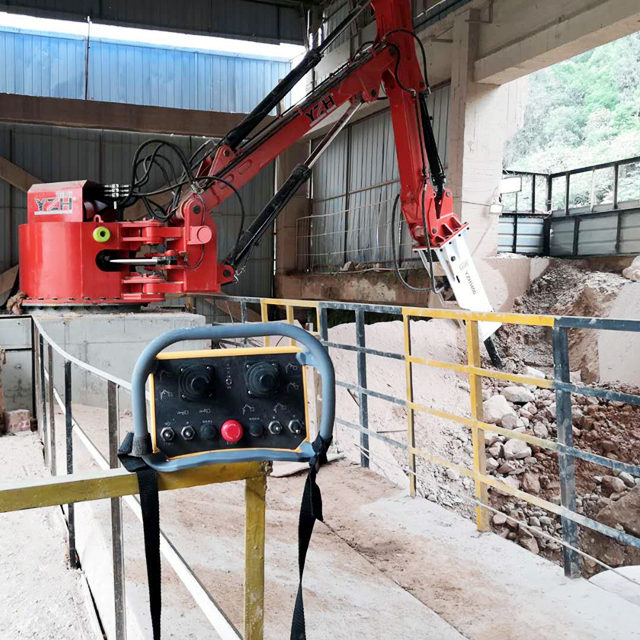

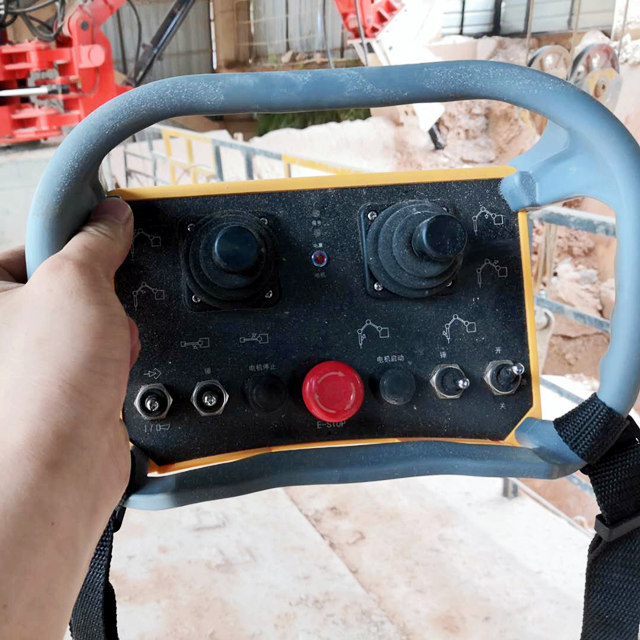

Wired joystick control station or radio remote control system.

Optional 5G teleoperation control system, enabling automated boom movement, preset positions (deploy, park), remote video monitoring, and full control over 5G or industrial wireless network.

Safety interlocks, pressure alarms, and emergency stop integrated.

Application and Advantages

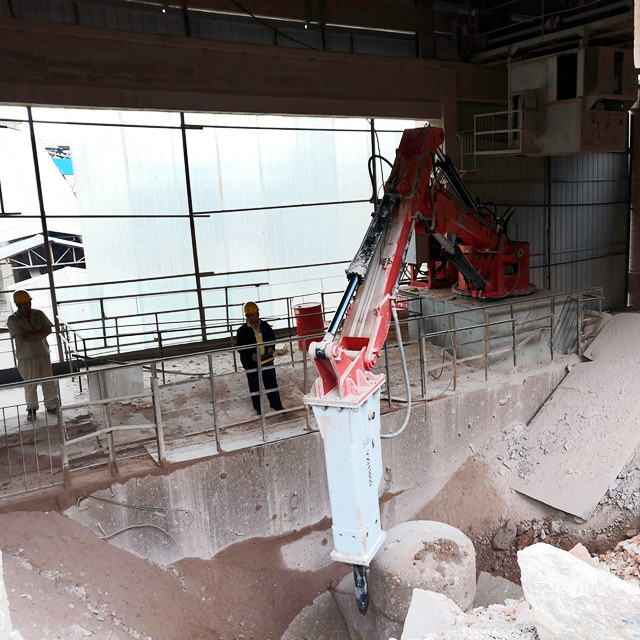

1. Jaw Crushers

Positioned over the feed inlet.

Breaks oversized boulders preventing chamber blockage.

Prevents jaw plate damage from excessive material size.

2. Gyratory Crushers

Installed above the spider cap or feed funnel.

Removes suspended or bridged material before it causes system-wide stoppage.

3. Grizzly Feeders

Clears obstructions between grizzly bars.

Ensures consistent separation of fines and oversize material.

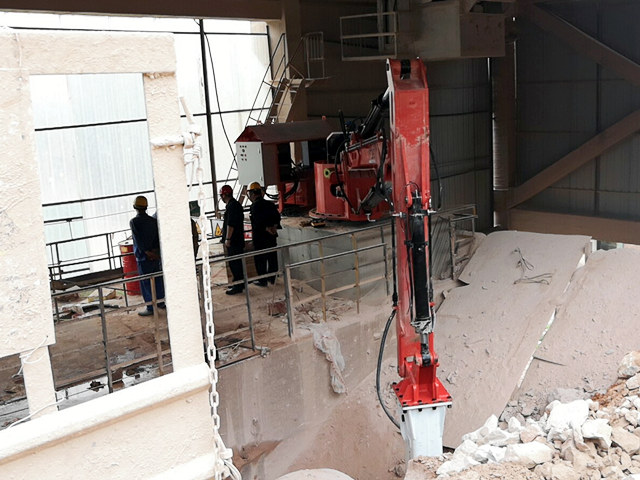

4. Dump Hopper Entry

Prevents rock arching during truck unloading.

Maintains steady material flow to the crusher intake.

5. Mobile Crushers

Compact boom version integrated into portable crushing plants.

Enables onsite mobility with reliable breaking performance.

6. Underground Installations

Space-efficient models for confined areas.

Remote or automated control avoids operator entry into high-risk zones.

Technical Specifications

Model No.: BC690

Boom Weight (Without Hammer): 6945kg

Max. Horizontal Working Radius: 9980mm

Max. Vertical Working Radius: 7640mm

Min. Vertical Working Radius: 3000mm

Max. Height: 6400mm

Max. Working Depth: 6230mm

Rotation: 170°

Pedestal Size: Φ1680X1975

Power of Hydraulic Power Unit: 55-75kw

Tool Diameter: 135-140mm

Impact Energy: 5420-6780Joules

Max. Oil Flow of Hammer: 150-180l/min

Min. Oil Flow of Hammer: 130-120l/min

Blow Frequency: 350-800bpm

Max. Operating Pressure: 180bar

Min. Operating Pressure: 160bar

Hydraulic Hammer Model: YZH1350-YZH1400

Hammer Dimension: YZH1350 for 2847X575X710, YZH1400 for 2793X575X710

Hydraulic Power Unit Model: Y55PP-Y75PP

Ambient Temperature: -45℃ to 75℃

Package Inclusions

1. Fixed boom rock breaker system

2. Hydraulic power unit (HPU)

3. Hydraulic hammer

4. Embedded parts and remote control bracket

5. Installation accessories box

6. Maintenance spare parts box

7. Optional spare parts & toolbox

8. Electrical and hydraulic schematic diagram

9. Parts manual & User manual

Why Choose a Fixed Boom Rock Breaker System?

Reliability: Built for non-stop 24/7 operation in harsh industrial settings.

Precision: Accurate control reduces over-breaking and material loss.

Efficiency: Increases crusher uptime, boosts productivity, and reduces labor costs.

Scalability: Modular and customizable to grow with your operation.

Built for Adverse Conditions:

Reinforced welding & ribbed boom geometry

Sealed electronic enclosures (IP65 available)

High-impact resistant paint and zinc primer finish

Cold-start heater kits for arctic environments

Sand/dust-proof hydraulic seals and fittings

Explosion-proof systems for underground applications

Why Choose YZH?

1. More than 20 years of production experience and rich field service experience.

2. Professional and creative R&D team.

3. ISO9001:2015, ISO14001:2015, ISO45001:2018 and CE Certification.

4. China Price&China Speed.

5. Engineered for Continuous Duty – Suitable for 24/7 mining and crushing environments.

6. Highly Customizable – Modular boom sizes, power packs, breaker options, and control types.

7. End-to-End Support – From design and manufacturing to installation, commissioning, training and after-sale service.
