Selecting the right breaker boom system for a gyratory crusher is crucial for ensuring efficient operation and safety in mining and quarrying applications. Gyratory crushers are designed to handle large volumes of material, but they can also be prone to blockages caused by oversized rock. A properly sized and configured breaker boom system can help clear these blockages quickly and safely.
In this guide, we will discuss the key factors to consider when selecting a breaker boom for your gyratory crusher, including reach, hammer size, pedestal positioning, and operational efficiency. For those interested in general pedestal boom solutions, you can visit our main page at https://www.yzhbooms.com/.
Gyratory crushers are widely used in large-scale mining operations for their ability to process high volumes of material efficiently. However, due to their design, they can encounter issues with oversized rocks that can create blockages and lead to costly downtime.
A correctly sized pedestal rock breaker boom system provides several benefits:
Efficiently breaks oversized rock, reducing downtime
Enhances safety by allowing operators to clear blockages from a safe distance
Improves productivity by maintaining a continuous flow of material
Minimizes manual rock breaking, reducing the risk of injury
To understand more about the different types of breaker boom systems, you can refer to our Pedestal Rock Breaker Boom Systems page.

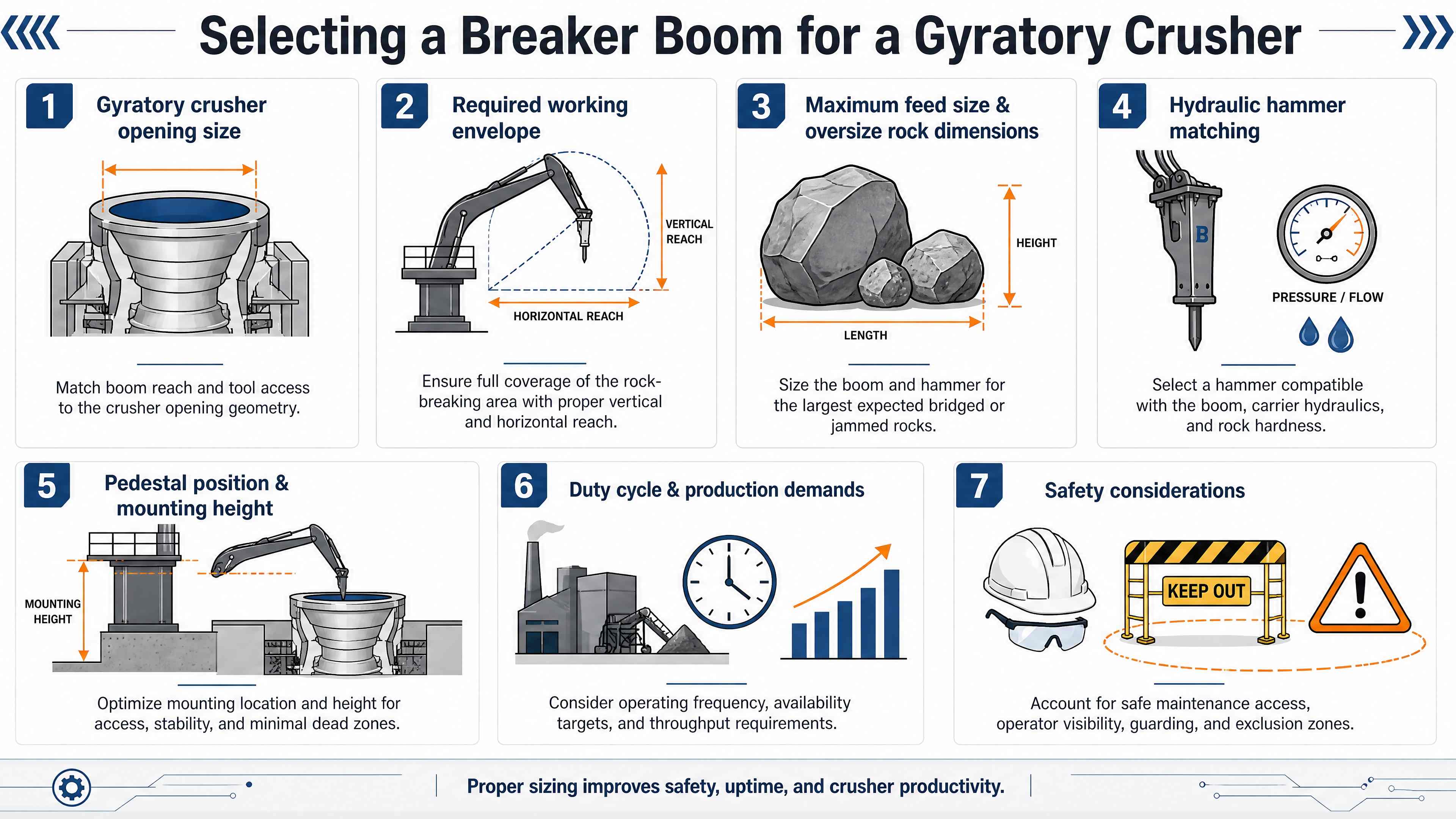

The first step in selecting a breaker boom for a gyratory crusher is to measure the actual opening size of the crusher.
Key dimensions to consider include:
Width of the crusher opening
Depth of the feed area
Height from the pedestal to the working zone
Distance from the mounting position to the center of the opening
The breaker boom must be able to reach the entire opening and effectively clear any blockages. This includes access to both the center and the edges of the crusher mouth.
If the boom cannot cover the full opening, operators may struggle to break material at the edges or may have to work at inefficient angles, leading to increased downtime.
While many focus on boom length, the working envelope is the more critical factor in determining the right size.
The working envelope includes:
Horizontal reach
Vertical reach
Depth of penetration into the crusher area
Swing angle
Effective hammer working angle
Clearance from surrounding structures
It’s essential that the hammer can approach oversized rock from effective angles. A boom that is too long or too short may not provide the necessary leverage or control, leading to ineffective breaking and increased wear on the equipment.
For more information about how to optimize your breaking operations, check our general guide on how to choose the right pedestal rock breaker boom system.
The size of the rocks being processed is another important factor in selecting a breaker boom.
Key questions include:
What is the maximum feed size?
How large are the oversize rocks that typically cause blockages?
Are oversize rocks common or infrequent?
What is the hardness of the rock?
If the application frequently handles large, hard rocks, the breaker boom system must be designed to accommodate these conditions. This may require a more robust boom structure and a hydraulic hammer capable of delivering sufficient impact energy.

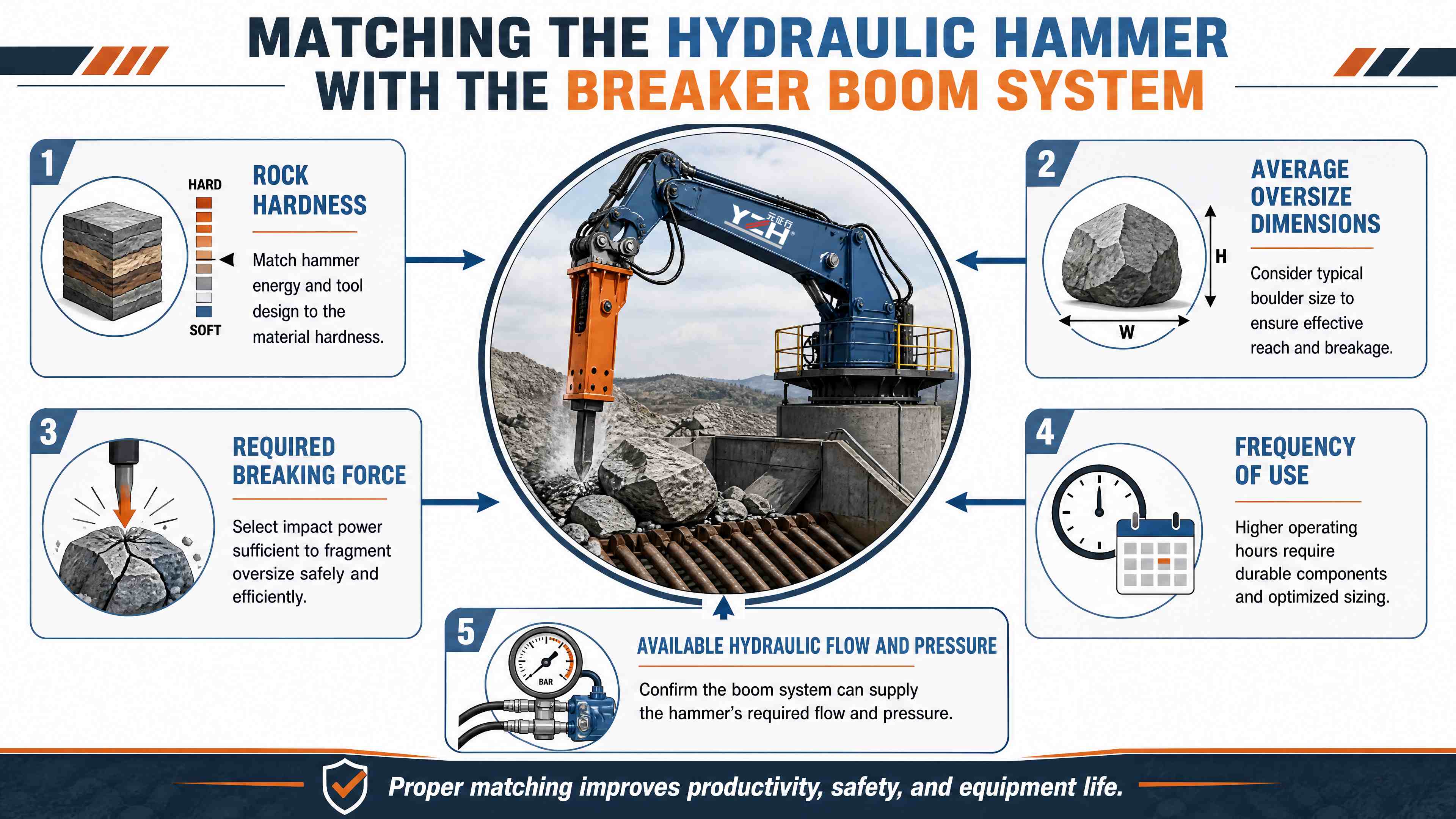

The hydraulic hammer and the breaker boom must be selected together as an integrated system.
For a gyratory crusher application, the hammer must provide enough impact energy to break oversized rocks effectively, while also being compatible with the boom's structural and hydraulic capabilities.
Key factors to consider include:
Rock hardness
Average oversize dimensions
Required breaking force
Frequency of use
Available hydraulic flow and pressure
An improperly matched hammer can lead to inefficient breaking, increased wear, and potential damage to the boom system. For more information on hydraulic hammers, visit our Hydraulic Hammers page.
The position of the pedestal can significantly affect the required boom size for a gyratory crusher.
Different mounting positions may necessitate different boom geometries. For example:
A pedestal mounted too far from the crusher may require a longer reach
A higher mounting point may affect the hammer's working angle
Nearby structures may restrict movement and swing
The correct placement of the pedestal is essential to ensure that the boom can operate effectively without sacrificing safety or efficiency.
Not all gyratory crushers operate under the same workload.
Some plants may only need occasional breaking when oversized rocks cause blockages. Others may require frequent breaker use due to high throughput and continuous oversize feed.
Consider the following:
How often will the breaker be used?
Is the work light-duty or heavy-duty?
What is the plant’s production capacity?
Are there any specific environmental conditions (dust, moisture, etc.)?
Heavy-duty applications often require stronger structural components and more durable hydraulic systems. A light-duty system may not hold up under demanding conditions, leading to increased maintenance costs and downtime.

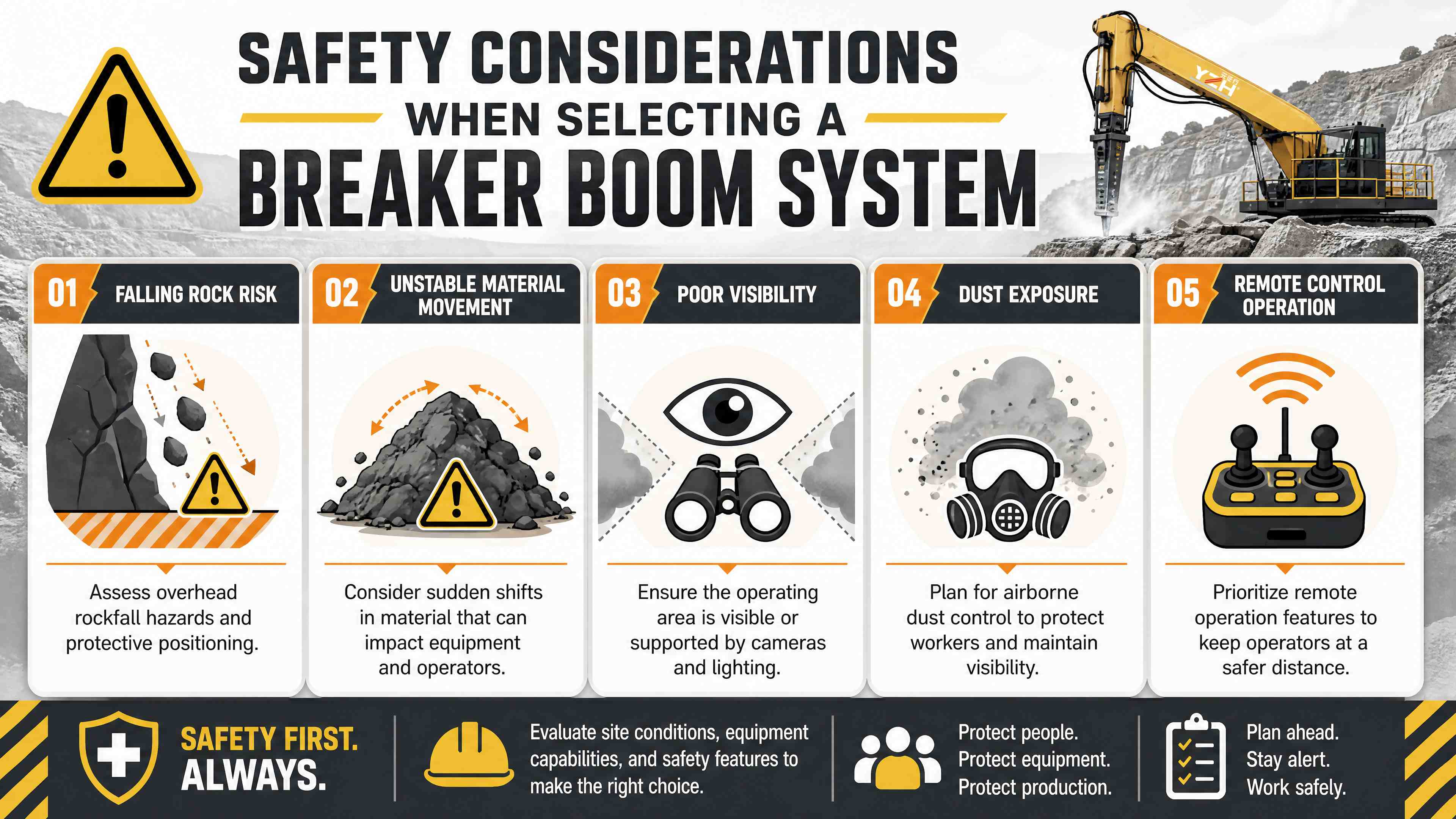

Safety is a primary concern when installing a breaker boom system at a gyratory crusher.
Without a properly designed system, operators may face hazards such as:
Falling rock
Unstable material movement
Poor visibility near the feed opening
Dust exposure
Dangerous manual intervention
A correctly sized boom system improves safety by allowing operators to clear blockages from a safe distance, reducing the risk of accidents.
Safety features such as remote control operation and emergency stop systems should also be considered when selecting a breaker boom.
The best way to ensure the correct boom size is to review the actual layout drawing of the crusher.
A layout drawing helps confirm:
Real reach requirements
Coverage of the crusher opening
Pedestal location
Clearance limitations
Hammer approach angle
Without accurate drawings, recommendations may be based on assumptions. With proper site information, a manufacturer can provide a more precise and effective solution.
For technical inquiries, feel free to reach out through our Contact Us page.
Buyers often make several common mistakes when selecting a breaker boom for a gyratory crusher:
The lowest-cost option may not provide the reliability or performance needed for your application.
Focusing solely on boom length can lead to poor performance if the working angles are not optimal.
An incompatible hammer can reduce effectiveness and lead to increased wear.
Even a well-sized boom can underperform if it is mounted incorrectly.
If production capacity increases, an undersized system may quickly become inadequate.
Avoiding these mistakes can help reduce downtime and maintenance costs, improving overall operational efficiency.
To receive an accurate recommendation for a gyratory crusher breaker boom system, prepare the following information:
Gyratory crusher model
Crusher opening dimensions
Maximum feed size
Material type and hardness
Layout drawing or site photos
Preferred pedestal position
Mounting height
Control method preference
Operating frequency
Project location
The more detailed your information, the easier it is for the manufacturer to recommend the right boom size and hammer combination.
An experienced manufacturer typically follows a structured process for selecting a breaker boom:
Review the gyratory crusher type and opening size
Analyze the layout drawing and pedestal location
Define the required working envelope
Evaluate oversize rock dimensions and hardness
Match the hydraulic hammer to the specific application
Confirm structural demands and duty cycle
Recommend a standard or customized solution
This process ensures that the selected breaker boom system meets the specific needs of the operation.
For more details about our manufacturing capabilities, visit https://www.yzhbooms.com/about-us/.
Choosing the right breaker boom for a gyratory crusher is essential for maintaining efficient operation and ensuring safety in heavy-duty applications.
The correct system must match:
Gyratory crusher opening dimensions
Required reach and coverage
Maximum oversize rock size
Material hardness
Hydraulic hammer specifications
Pedestal positioning
Duty cycle requirements
Working with an experienced manufacturer can provide the best results, ensuring that you receive a properly sized and configured system for your specific needs.
To learn more about our available options, visit https://www.yzhbooms.com/ and send your crusher model, layout drawing, and project details for a technical recommendation.
The most critical factor is the actual working envelope, including reach, coverage, and effective hammer angle.
No. The model is useful, but the actual layout, pedestal position, rock size, and operational demands are also critical.
Not necessarily. The correct size depends on the opening dimensions, site layout, and specific operational conditions.
The pedestal position affects reach, hammer angle, swing range, and overall efficiency. Poor placement can lead to performance issues.
No. The hammer and boom should be selected together as a complete system for optimal performance.
You should provide the gyratory crusher model, opening size, layout drawing, site photos, feed material details, mounting position, and project location.
