BHB450
YZH
Product Description
Quickly and efficiently break oversized rocks and clear blockages in the crusher feed area without halting production. The BHB450 ensures your operations run continuously, maximizing throughput and profitability.

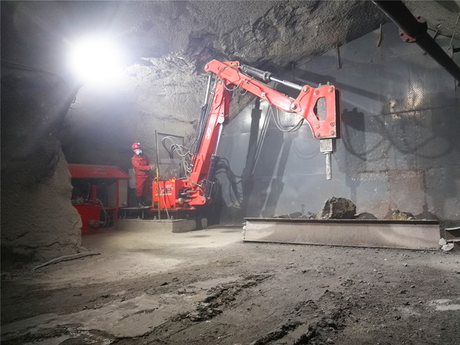

By allowing operators to control the boom and hammer from a safe and remote location, the system removes personnel from the immediate vicinity of the crusher opening, drastically reducing the risk of accidents and injuries.
The Static Pedestal Boom is delivered as a comprehensive package. The combination of the boom, hammer, power unit, and controls are engineered to work together seamlessly for reliable performance and straightforward installation.
With a 360° rotation and significant horizontal and vertical reach, the BHB450 is designed to service a wide range of crusher sizes and plant layouts. Its powerful hydraulic hammer delivers the force needed to handle even the toughest materials.

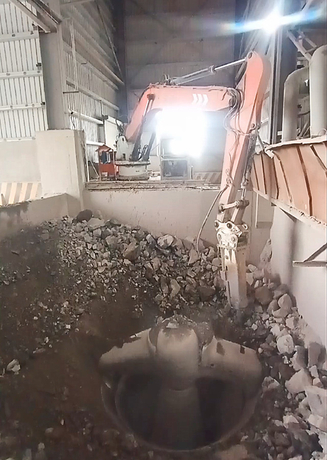

Primary Crushing Stations: Breaking oversized feed in gyratory and jaw crushers.
Aggregate Plants: Ensuring consistent material flow and preventing bottlenecks.
Mining Operations: Managing oversized ore at grizzlies and feed points.
Cement and Industrial Plants: Clearing blockages in hoppers and feed chutes.
| Parameter | Dimension |
|---|---|
| Model Number | BHB450 |
| Max. Horizontal Reach (R1) | 6,960 mm |
| Max. Vertical Reach (R2) | 4,900 mm |
| Min. Vertical Reach (R3) | 1,730 mm |
| Max. Working Depth (H2) | 4,600 mm |
| Slew Rotation | 360° |
Note: The system is paired with a hydraulic hammer and power unit best suited for the application. Please consult with our specialists for a customized configuration.
