Underground VS. Surface Pedestal Rock Breaker Boom System

Underground VS. Surface Pedestal Rock Breaker Boom System

Pedestal rock breaker boom system is used in both underground and surface mining operations to manage oversize material and ensure uninterrupted material flow. However, while the core function remains the same, the system design, installation approach, and operational requirements can differ significantly between underground and surface environments.

Understanding these differences is essential for choosing the right system for your site.

1. Space and Layout Constraints

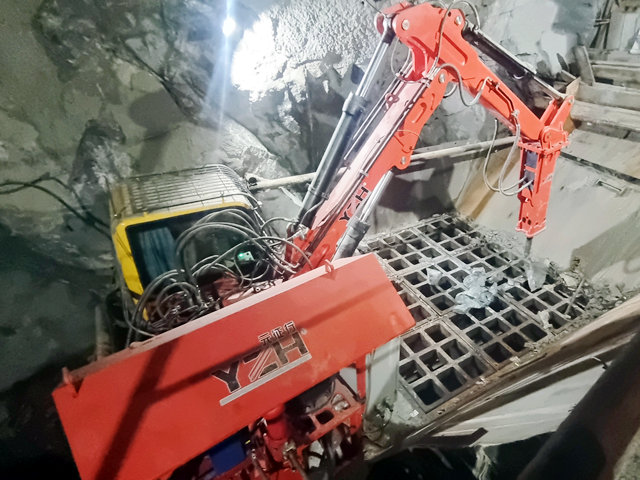

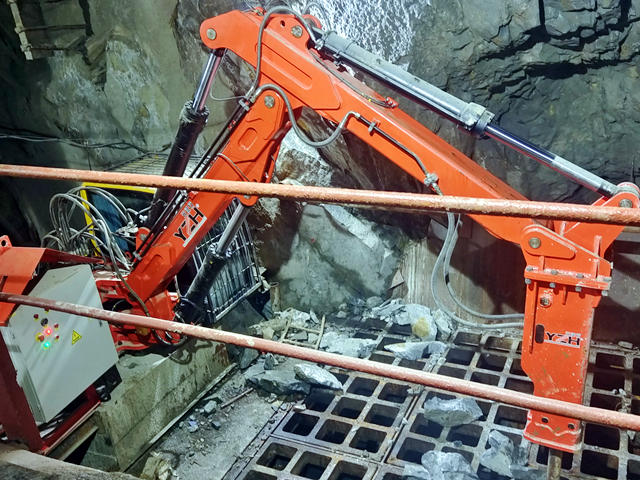

Underground:

Space is extremely limited, requiring compact and low-profile boom designs.

Installation points are often in confined tunnels or crusher stations with minimal headroom.

Boom articulation must be highly precise to maneuver around walls, roofs, and tight chutes.

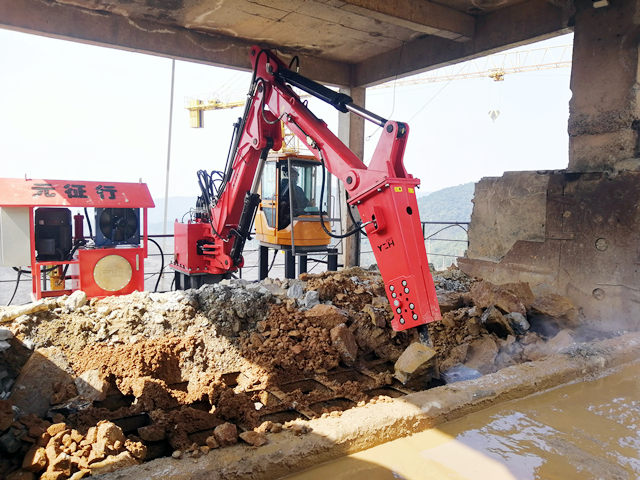

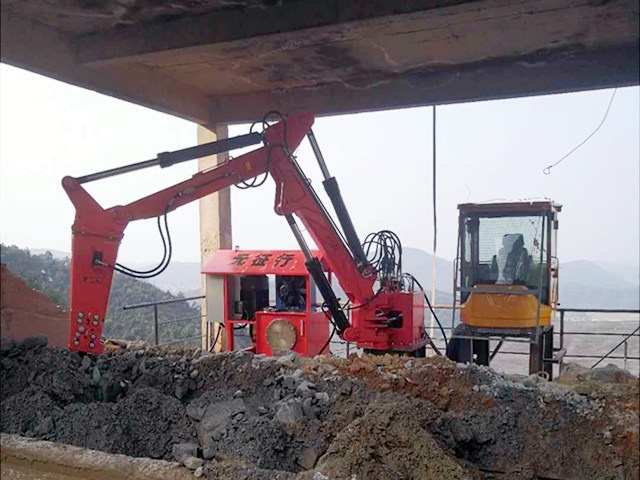

Surface:

Typically installed in open areas near primary crushers or hoppers.

Booms can be larger, with longer reach and heavier tools.

Layout flexibility allows for larger foundation pads and control cabins.

2. Mobility and Installation

Underground:

Transporting and installing equipment is more challenging due to narrow shafts or drifts.

Modular components are often required to allow assembly underground.

Installation usually involves bolting to reinforced mine walls or steel structures.

Surface:

Easier to transport using standard trucks or cranes.

Concrete foundation pads are commonly used.

Larger installation crews and equipment are available.

3. Power and Control Systems

Underground:

May rely on centralized electrical or hydraulic power systems.

Remote operation via wired controls is common due to signal interference risks.

Limited space can restrict HPU (hydraulic power unit) placement, requiring careful planning.

Surface:

Power units can be placed freely in ventilated, protected areas.

Wireless remote control is widely used for convenience and operator safety.

Easier access for maintenance and upgrades.

4. Environmental Conditions

Underground:

High humidity, limited airflow, and temperature variations affect component longevity.

Dust, moisture, and corrosion are common challenges.

Ventilation limitations may restrict continuous operation.

Surface:

Exposed to weather extremes (heat, cold, rain), requiring weather-resistant components.

Easier to manage cooling, filtration, and airflow for the hydraulic system.

5. Maintenance Access

Underground:

Tight access makes routine inspection and part replacement more difficult.

Maintenance windows are often short and must be tightly scheduled.

Surface:

Better accessibility for tools, personnel, and replacement parts.

Visual inspection is easier, and maintenance can be more frequent.

While both underground and surface pedestal rock breaker boom system performs the same core task—breaking oversized rock to ensure material flow—they must be tailored to dramatically different environments.

Underground systems require compact, precise, and modular solutions designed for tight spaces and challenging conditions. Surface systems offer more flexibility, greater power, and easier access—making them ideal for high-capacity, open-site operations. Choosing the right configuration means understanding your site's physical limits, safety needs, and production goals. Working with experienced suppliers ensures the system is not only fit for purpose—but also optimized for long-term reliability.
