Author: YZH Publish Time: 2025-09-14 Origin: https://www.yzhbooms.com/
Twenty-three years in the heavy machinery business teaches you a few things. The biggest lesson? Most mining operations are still clearing crusher jams the hard way – and it's costing them big time.
I've walked through countless quarries and mines where crews are still climbing into crushers with sledgehammers or waiting hours for mobile equipment to show up. It's 2025, and we're still doing things like it's 1985.
That's why pedestal rock breaker boom systems have become such a game-changer. Let me walk you through everything you need to know.

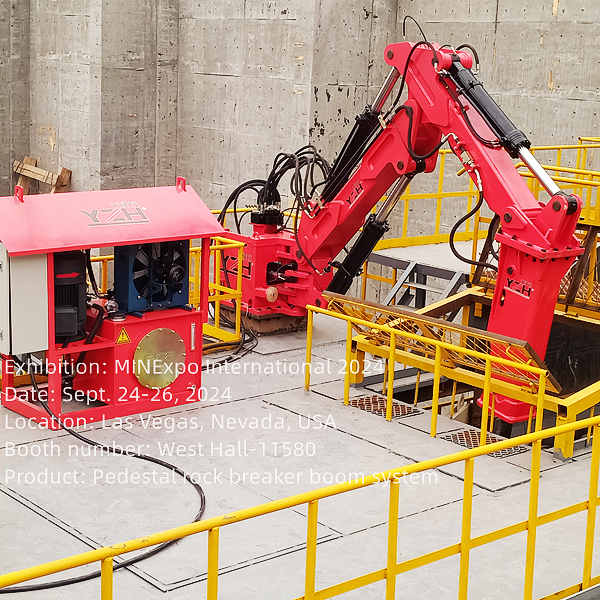

Think of it as a permanently mounted robotic arm with serious muscle. A pedestal boom is a stationary hydraulic system designed specifically for your crusher setup. It sits there 24/7, ready to clear jams the moment they happen.
The system consists of:
A reinforced pedestal base (hence the name)
A multi-jointed hydraulic arm with impressive reach
A powerful hydraulic breaker attachment
Remote control system for safe operation
Integrated safety features and monitoring
Unlike mobile equipment that needs to be positioned and repositioned, a pedestal boom is always in the perfect spot because it was designed for that exact location.
Manual clearing is dangerous and slow. Period. I've seen too many close calls with workers using hand tools in crusher chambers.
Mobile excavators seem like the obvious solution, but they have major limitations:
Limited access in tight crusher configurations
Availability issues when needed elsewhere
High operating costs (fuel, operator wages, maintenance)
Positioning challenges and blind spots
Additional safety hazards from mobile equipment near active crushers
Explosive methods are expensive, require specialized permits, and create their own safety and environmental concerns.
Every installation starts with a site survey. Our engineers need to understand your crusher configuration, material flow patterns, typical jam locations, and site constraints.
Phase 1: Design & EngineeringWe create detailed 3D models of your crusher area and design the boom system for maximum coverage. This includes calculating reach requirements, mounting points, and hydraulic specifications.
Phase 2: Foundation WorkThe pedestal requires a substantial concrete foundation. We provide detailed foundation drawings and specifications. Most installations need 3-5 days for proper concrete curing.
Phase 3: Mechanical InstallationThe pedestal and boom assembly typically go in over 2-3 days. This includes mounting the base, assembling the boom sections, and connecting all hydraulic lines.
Phase 4: Electrical & ControlsControl systems get installed and integrated with your existing crusher controls. Operators get trained on safe operation procedures.
Phase 5: Testing & CommissioningComprehensive testing ensures everything works perfectly before handover. This includes reach verification, safety system checks, and operator training.
Total installation time: Usually 1-2 weeks depending on site conditions and system complexity.
Dramatic reduction in downtime. We're talking about clearing jams in under 10 minutes instead of 45+ minutes with traditional methods.
Serious safety improvements. Operators work from protected control rooms. No one enters the crusher chamber. Insurance companies often reduce premiums.
Lower operating costs. No fuel costs, no mobile equipment operator wages, reduced maintenance expenses.
Extended crusher life. Precise, controlled breaking reduces wear on crusher components compared to heavy excavator impacts.
Always available. The system is there when you need it, not tied up on other jobs across the site.
Mining Operations: Primary and secondary crushers in copper, iron ore, gold, and coal operations.
Quarries: Limestone, granite, and aggregate operations with high-volume crushing requirements.
Recycling Facilities: Concrete and demolition waste processing where oversized material creates frequent jams.
Steel Mills: Handling slag and other metallurgical materials that tend to bridge and jam.
Reach envelope determines which jam points the boom can address. We map out your crusher geometry to ensure complete coverage.
Breaking force needs to match your typical material hardness. Harder materials require more powerful hydraulic breakers.
Boom weight capacity affects what size breaker attachment you can use effectively.
Control system features should include safety interlocks, position monitoring, and integration capabilities with existing plant controls.
Environmental protection matters for outdoor installations. Proper weather sealing extends system life significantly.
Every crusher setup is different. Jaw crushers need different boom configurations than gyratory crushers. Primary crushing applications have different requirements than secondary crushing.
At YZH, we've designed systems for:
Tight spaces where standard configurations won't fit
Multiple crusher configurations requiring extended reach
Extreme weather conditions requiring specialized protection
Integration with existing plant automation systems
The key is understanding your specific challenges before designing the solution.
Most operations see payback in 12-18 months. The calculation includes:
Reduced downtime costs
Lower labor expenses
Decreased mobile equipment operating costs
Reduced insurance premiums
Extended crusher component life
One copper operation calculated their boom system prevented over $2 million in lost production during its first year of operation.
These systems are built for heavy-duty industrial use, but they're not maintenance-free. Expect:
Daily visual inspections
Weekly hydraulic fluid level checks
Monthly detailed inspections of boom joints and hydraulic lines
Annual major service including hydraulic system overhaul
Proper maintenance keeps these systems running reliably for 15+ years.
Pedestal boom systems aren't just equipment upgrades – they're strategic investments in operational efficiency and safety. Operations still using traditional jam-clearing methods are operating at a competitive disadvantage.
The technology has matured. The ROI is proven. The safety benefits are undeniable.
The question isn't whether to upgrade. It's when, and with whom.
Ready to explore how a pedestal boom system could work for your operation? I'd be happy to discuss your specific requirements and challenges. After 23 years in this business, I've probably seen a situation similar to yours.
