Stationary Rockbreaker Boom System – Advanced Rockbreaking Solution

Stationary Rockbreaker Boom System – Advanced Rockbreaking Solution

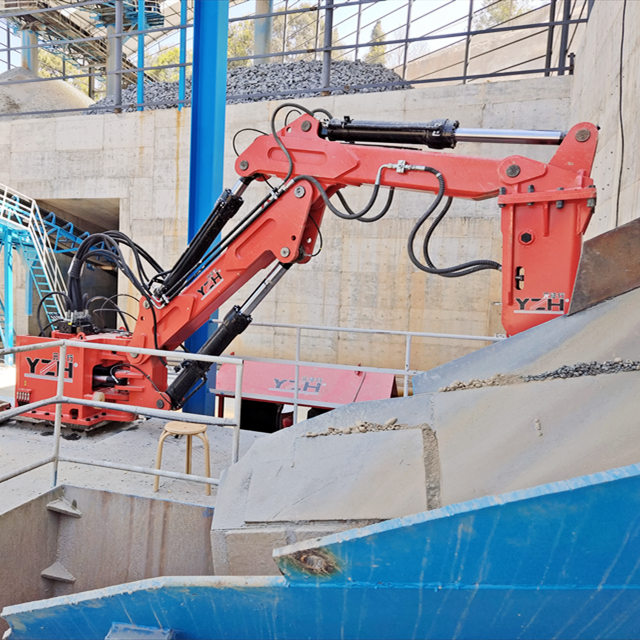

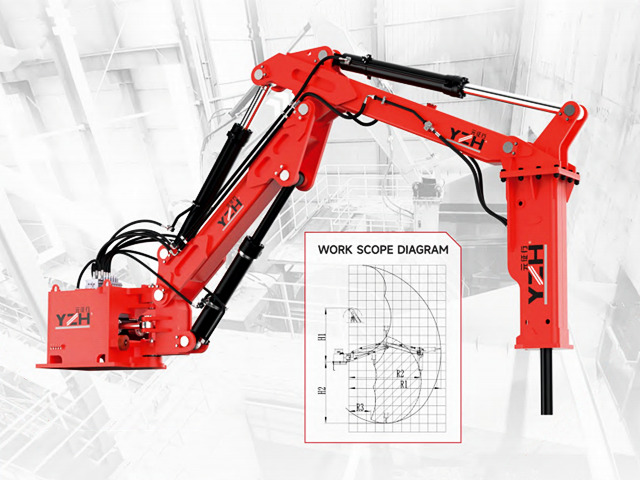

B series stationary rockbreaker boom system includes: BA300, BA400, BAN310, BAN330, BB350, BB430, BB450, BB500, BB600, BBN450, BC450, BC550, BC630, BC690, BD600, BD630, BD670, BD690, BD750

Power of hydraulic power unit ranges: 18kw, 22kw, 30kw, 37kw, 45kw, 55kw, 75kw

Weight ranges: 1411kg-8195kg

Vertical reach: 1570mm-8170mm

Rotation angle: 170°

OEM/ODM: Yes

Hammer rod tool diameter: 75-155mm

Operating temperature -45°C to +75°C

Mounting options: Floor mount, Crusher mount, Shock-absorbing base, Bridge tower mount, Rail trolley mount

All systems can be tailored to site-specific conditions including high altitude, corrosive, or explosive environments.

Stationary rockbreaker boom system is an advanced hydraulic boom assembly designed to eliminate downtime and enhance the safety and productivity of primary crushing operations. Specifically engineered for use over jaw crushers, grizzly screens, gyratory crushers, and material chutes, stationary rockbreaker boom system is essential for breaking oversize rocks, raking bridged material, and preventing blockages.

Whether you're operating in open-pit mines, hard rock quarries, aggregate plants, or underground crushing environments, this heavy-duty boom system offers consistent performance in the most challenging applications.

Core Functions of Stationary Rockbreaker Boom System:

Blockage Clearance: Rapidly breaks oversize rock material clogging crusher inlets.

Bridged Material Raking: Rakes down bridged material over grizzly bars into the crusher feed zone.

Operational Efficiency: Eliminates costly downtime by automating the rockbreaking process.

Operator Safety: Removes the need for manual intervention using hydraulic or remote-controlled tools.

Typical Applications of Stationary Rockbreaker Boom System:

1. Jaw crushers (primary)

Application Role:

Installed above or beside the feed opening of primary jaw crushers, stationary rockbreaker boom system is used to break oversized boulders before they enter the crushing chamber. It also helps dislodge rocks that get stuck between the moving and fixed jaw plates.

Purpose & Benefits:

Prevents oversized rocks from damaging crusher jaws

Reduces downtime caused by feed blockage

Eliminates the need for dangerous manual clearing

Ensures smooth and continuous operation

2. Impact crushers

Application Role:

In impact crusher setups, stationary rockbreaker boom system is positioned at the hopper inlet or feed chute. It breaks large feed material and prevents clogging or bridging that may occur due to inconsistent feed size or sticky materials.

Purpose & Benefits:

Breaks irregularly shaped rocks before entering the crushing rotor

Prevents feed chute blockages

Reduces impact plate wear from oversize rocks

Maintains production rate by ensuring constant feed flow

3. Gyratory crushers

Application Role:

Typically installed above the spider or feed opening, stationary rockbreaker boom system is used to break large rocks suspended in the top of the gyratory crusher or stuck in the feed hopper. These are often heavy-duty, long-reach booms with 170° rotation.

Purpose & Benefits:

Breaks boulders before they enter the crushing zone

Clears bridging and blockages at the hopper throat

Supports high-capacity, continuous duty applications

Enhances safety by replacing manual clearing with remote operation

4. Grizzly feeders (screens)

Application Role:

Mounted over the grizzly bars, stationary rockbreaker boom system rakes or breaks bridged material that gets stuck between the grizzly rails. It ensures that finer material falls through and oversize material is properly handled.

Purpose & Benefits:

Removes bridged rocks that obstruct the grizzly deck

Allows proper separation of fines and oversize

Prevents bottlenecks in the crushing process

Improves overall plant efficiency and feed uniformity

5. Hopper entry points

Application Role:

Boom system installed above or beside hopper inlets helps manage blockages caused by material arching or bridging, especially when large rocks are dumped from haul trucks or loaders. The boom dislodges hung-up material for smooth flow.

Purpose & Benefits:

Prevents material build-up at hopper mouths

Reduces dump truck wait times by ensuring fast unloading

Improves material flow consistency

Avoids spills or overflow caused by clogged hoppers

6. Stationary and mobile crushing plants

Application Role:

Stationary rockbreaker boom system is integrated into fixed plant layouts to provide permanent rockbreaking capability at key flow points like crushers, feeders, or transfer chutes. They are engineered for long-term, high-duty operation.

Purpose & Benefits:

Provides on-demand breaking in any critical area

Increases plant uptime by reducing manual interventions

Enhances safety by automating hazardous tasks

Fully integrated into plant power and control systems

7. Mobile Crushing Plants

Application Role:

Specialized compact boom systems are mounted directly onto mobile crushers or trailers. These booms help break oversized rocks in portable setups where space and height are limited.

Purpose & Benefits:

Designed for space-restricted environments

Maintains crusher throughput in mobile setups

Facilitates relocation and deployment at multiple sites

Enhances the flexibility and productivity of mobile crushers

A complete pedestal rock breaker boom system typically includes:

1. Heavy-Duty Mounting Pedestal

A robust steel base structure designed to support the entire rockbreaker system. It is engineered to withstand extreme mechanical stress, shock loads, and vibration caused during rock breaking.

Key Features:

Fabricated from reinforced high-strength steel

Available in various configurations: round, rectangular, lattice frame, or elevated platforms

May be anchored to the floor, mounted to a steel bridge, or integrated into crusher structures

Shock-absorbing mounts optional to reduce vibration transmission

Functions:

Provides a stable and secure foundation

Ensures optimal reach, angle, and operational range for the boom

Supports safe and durable long-term operation

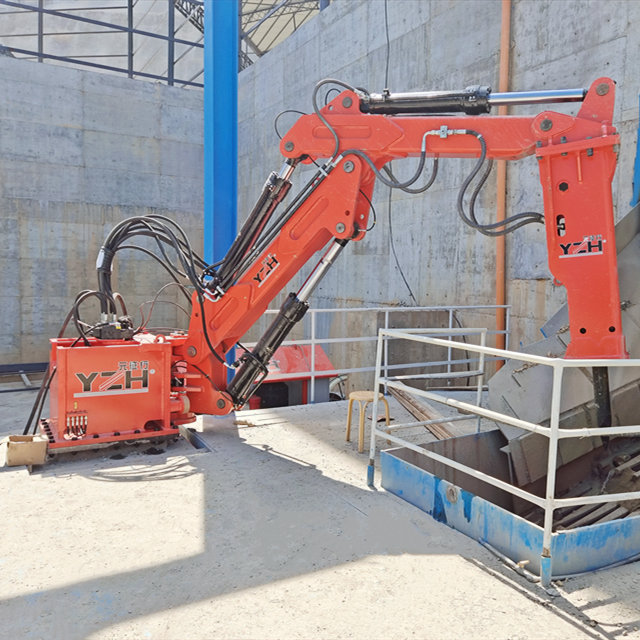

2. Hydraulic Boom Assembly

The articulated mechanical boom structure, consisting of a main boom and dipper stick (or jib), connected by pivot joints and powered by hydraulic cylinders.

Key Features:

2 or 3 joint segments depending on required reach and motion

Made from high-tensile steel box sections with reinforcement ribs

Available in light, medium, or heavy-duty models

Integrated grease ports, hardened bushings, and wear-resistant joints

Functions:

Delivers the required reach and motion to position the hammer precisely over blockages

Offers vertical and horizontal articulation for effective coverage

Absorbs and channels impact forces during hammer operation

3. Hydraulic Rock breaker Hammer

The core tool responsible for delivering impact energy to fracture rocks. It is mounted at the end of the boom and powered by high-pressure hydraulic oil.

Key Features:

Available in different sizes: 68mm–248mm tool diameter

Designed to match boom size and crushing application

With hydraulic quick coupler system, compatible with bucket, chisel, blunt, moil, or custom tools

Hardened, wear-resistant construction for long service life

Functions:

Breaks oversized rocks, boulders, and bridging material

Ensures uninterrupted flow of material into the crusher

Reduces the need for explosive or manual breaking methods

4. Hydraulic Power Unit (Power Pack) (Electric or Diesel-Driven)

An independent hydraulic system that supplies pressurized oil to operate the boom and breaker. Power packs can be electric (stationary plants) or diesel-powered (mobile/off-grid sites).

Key Features:

High-performance hydraulic pump and motor system

Fully enclosed oil reservoir with filters, sensors, and cooling system

Can be skid-mounted or integrated into plant layout

Includes pressure regulation, load-sensing controls, and emergency shutdown

Functions:

Provides the energy to power the boom movements and hammer strikes

Supports consistent performance under continuous-duty cycles

Allows remote placement for safety and convenience

5. Control System – Joystick Console / Radio Remote Control / Teleoperation Automation

The operator interface used to control boom movements and hammer activation. Control types vary based on the level of automation and operator proximity.

Joystick Console:

Mounted in a control room or operator cabin. Provides precise manual control.

Radio Remote Control:

Allows the operator to stand at a safe distance while operating the system.

Teleoperation Automation System:

Advanced AI-enabled system enabling automated boom movement, preset positions (deploy, park), remote video monitoring, and full control over 5G or industrial wireless network.

Function:

Enables safe, ergonomic operation of the rockbreaker

Supports manual, semi-automated, or fully automated modes

Reduces operator exposure to dangerous working zones

6. Safety Interlocks and Collision Avoidance Sensors (Optional)

An advanced safety module that includes sensors and programmable logic to avoid damage and improve operational safety.

Key Features:

Proximity sensors and collision detection system

Auto shut-off or retraction if obstruction is detected

Programmable movement limits and working zones

Emergency stop interfaces and overload detection

Function:

Prevents accidental collision with crusher structures or nearby equipment

Enhances operational safety and reduces wear-and-tear

Ensures compliance with safety regulations and standards

Product Series & Duty Levels

1. Light Duty Series: Designed for compact crushers and limited-space installations.

The light-duty series features a compact, light-weight design tailored for smaller crushing setups where space is limited. This is perfect for use with mobile jaw crushers, small grizzly screens, or compact impact crushers.

2. Standard Duty Series: Ideal for medium-sized quarry crushers.

The standard-duty series is the most versatile, designed to handle moderate workloads in medium-sized aggregate quarries and mining operations. It offers a good balance between reach, power, and structural durability.

3. Heavy Duty Series: Suitable for large-scale mining, continuous operation, or underground sites.

Heavy-duty stationary rockbreaker boom system is engineered for demanding applications such as open-pit mining, underground crushing stations, and large gyratory crushers. This is built for continuous operation under the most extreme working conditions.

4. Mobile Series: Wheeled/trolley versions for flexible relocation on-site.

The mobile series includes stationary rockbreaker boom system mounted on wheeled carts or crawler bases for enhanced mobility. This is ideal for construction sites, temporary crushing setups, or locations requiring frequent repositioning of equipment.

Construction & Material Highlights

Reinforced heavy-duty steel box section booms.

Heat-treated pivot pins with hard chrome plating.

Wear-resistant bushings & oversize joints.

Cylinders designed for high-pressure performance.

IP65-rated electronics & sealed connectors for harsh environments.

Mounting Configuration Examples

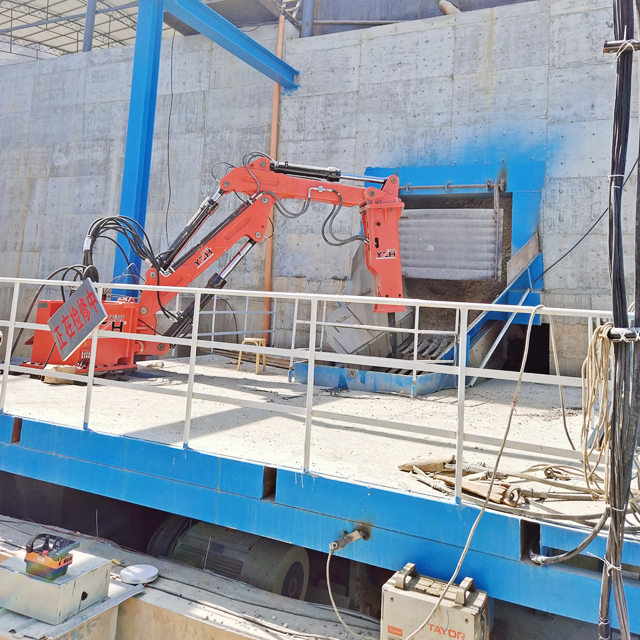

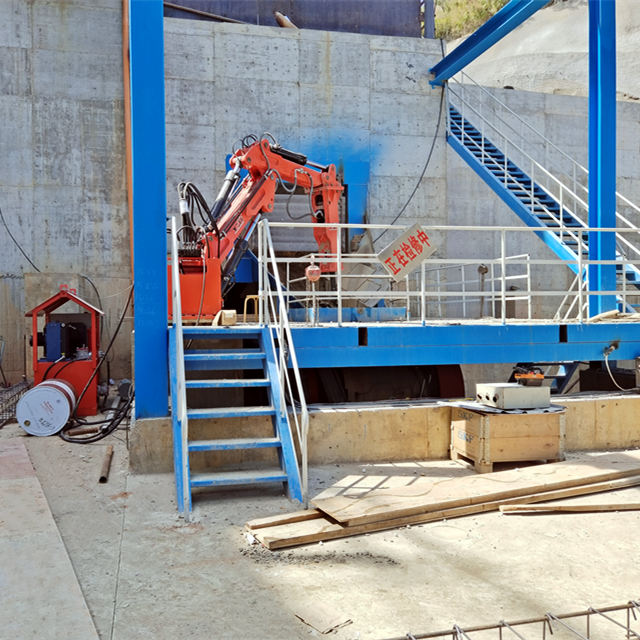

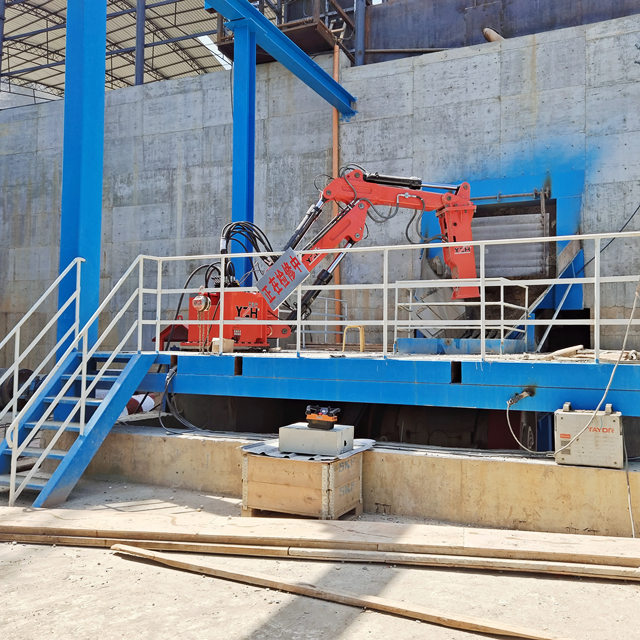

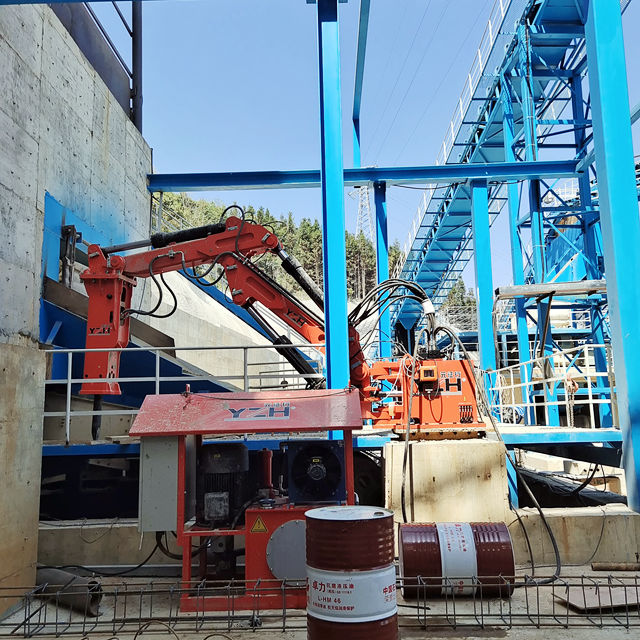

1. Stationary Pedestal Mount Next to Jaw Crusher – Fixed to ground, feeds jaw directly.

This is the most common configuration. The boom system is permanently bolted to a concrete or steel base next to the jaw crusher inlet. It provides direct coverage for the feed opening, allowing it to break oversized rocks before they enter the crushing chamber.

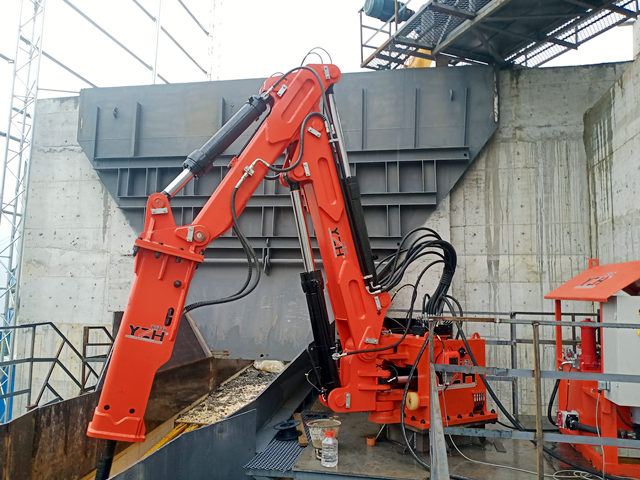

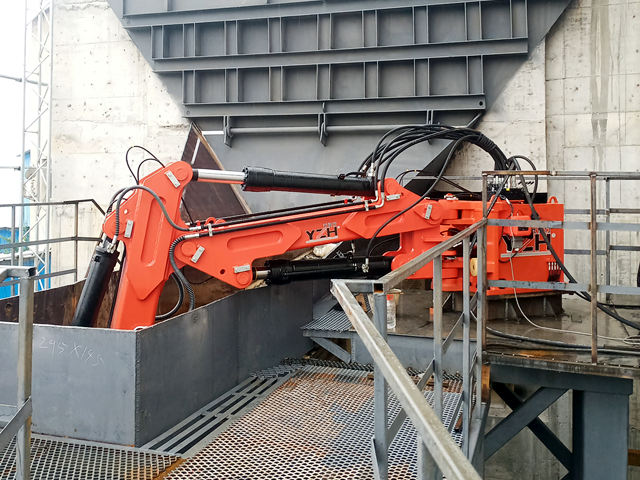

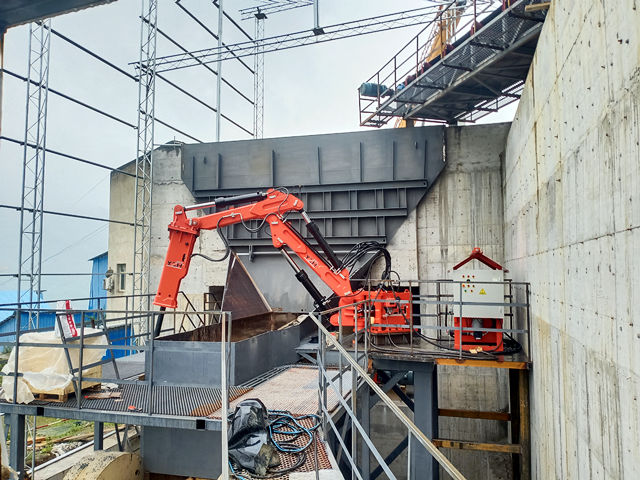

2. Bridge Mount Over Hopper – Ideal for grizzly and dump chute coverage.

A structural steel frame is constructed across the hopper or feed chute, and the boom is mounted directly onto the bridge. This setup is ideal when material enters from the top via truck dumping or conveyor, and full horizontal coverage is required.

3. Mobile Crawler or Trolley Mount – For temporary or multi-location usage.

Designed for jobs where relocation is necessary, this configuration features the boom system on a mobile platform such as a rail trolley, wheeled cart, or crawler chassis. It’s ideal for multi-location sites or short-term jobs.

4. Hydraulic Lift Platform Mount – For adjustable height access.

The rockbreaker is mounted on a vertical lift platform, which can be raised or lowered as needed. This allows the boom to operate at different elevations depending on crusher height or material pile levels.

5. Round Shock-Absorbing Pedestal – Reduces vibration and protects structure.

This base is equipped with vibration-dampening elastomers or springs, designed to reduce structural stress and absorb shock loads during heavy breaking. It is typically used with larger booms in high-impact environments.

Why Choose Stationary Rock Breaker Boom System from YZH?

1. More than 20 years of production experience and rich field service experience.

2. Professional and creative R&D team.

3. ISO9001:2015, ISO14001:2015, ISO45001:2018 and CE Certification.

4. China Price&China Speed.

5. Engineered for Continuous Duty – Suitable for 24/7 mining and crushing environments.

6. Highly Customizable – Modular boom sizes, power packs, breaker options, and control types.

7. End-to-End Support – From design and manufacturing to installation, commissioning, training and after-sale service.

As an experienced stationary rockbreaker boom system manufacturer, we specialize in delivering tailor-made solutions for mining, aggregate, demolition, and recycling industries. Whether your project is large-scale mining or compact urban crushing, we can provide the most reliable and cost-effective boom system for your specific needs.
