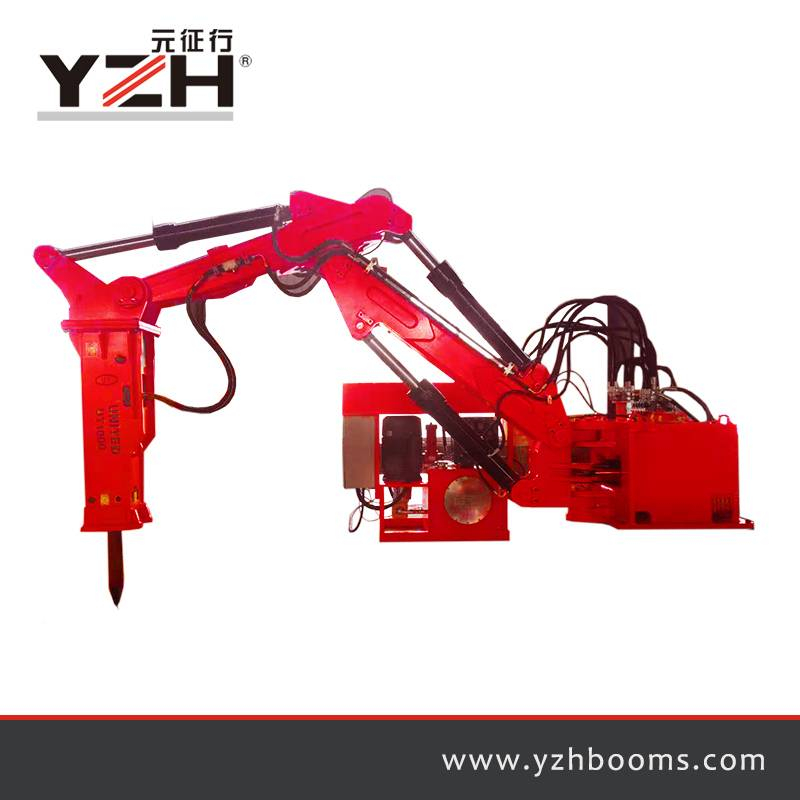

Pedestal Rock Breaker Booms System C450

loading

Applications:

·Mobile crushers
·Stationary crushing plants
·Recycling plants
·Light duty applications
·Metallurgical industry

Availability:

Product Description

C450 Pedestal Rock Breaker Booms System


C Series

Unit

C450

Weight

Kg

2600

Maximum Reach

m

6.3

Nominal Horizontal Reach (H)

m

4.6

Nominal Vertical Reach (V)

m

4.6

Swing°

°

170

Base Diameter

m

0.81X0.96

Recommended Hydraulic Hammer(Chisel Size )

mm

85,100, 125

Recommended Power Packs

HA37

 Features
·Compact multi-purpose boom
·Light weight
·Heat treated pins
·Compact Design
·360°、170° rotation
·Suitable hydraulic hammers for these booms systems are small series from 85 to 125 in large C-series.

Pedestal Rock Breaker Booms System C450-2

Applications
·Mobile crushers
·Stationary crushing plants
·Recycling plants
·Light duty applications
·Metallurgical industry

Pedestal Rock Breaker Booms System C450-3
