earth auger
YZH
Product Description
| Item /Model | YZHEA2000 | YZHEA4000 | YZHEA7000 | YZHEA8000 | YZHEA12000 | YZHEA15000 | YZHEA20000 | YZHEA25000 |
| Suitable Excavator (T) | 1.5-3 | 2.5-4.5 | 4.5-6 | 5-8 | 13-17 | 15-17 | 15-20 | 17-30 |
| Torque（MAX) (Nm) | 2510 | 3670 | 7300 | 7661 | 12300 | 15160 | 19200 | 24920 |
| Pressure (Bar) | 60-238 | 80-238 | 80-238 | 80-238 | 80-238 | 80-238 | 80-238 | 80-238 |
| Flow (Lpm) | 20-70 | 30-75 | 50-115 | 50-115 | 70-150 | 80-170 | 80-170 | 80-230 |
| Output Pin Dia (mm) | 65 round | 65 round | 75 square | 75 square | 75 square | 75 square | 75 square | 75 square |
| Power Head Dia(mm) | 200 | 200 | 270 | 270 | 290 | 290 | 290 | 292 |
| Power Head Weight (kg) | 55 | 60 | 151 | 152 | 155 | 171 | 192 | 271 |
| Drill rod(rod standard length:1.5m, rod with auger length: 1m) | ||||||||
| Drill Rod Model (mm) | φ 150 | φ 200 | φ 250 | φ 300 | φ 400 | φ 500 | φ 600 | φ 700 |
| φ 800 | φ 1000 | φ 1200 | ||||||
| Extention Rod (standard length: 1.5m) | ||||||||
| Extension Rod Model (mm) | φ 108 | |||||||
| Features | ||||||||
| Spiral drill is a new type of basic construction equipment, which can be used in the construction of railway, highway, bridge, power plant and other basic facilities. It can basically meet the use of bridge construction, high-rise building and other basic projects. | ||||||||

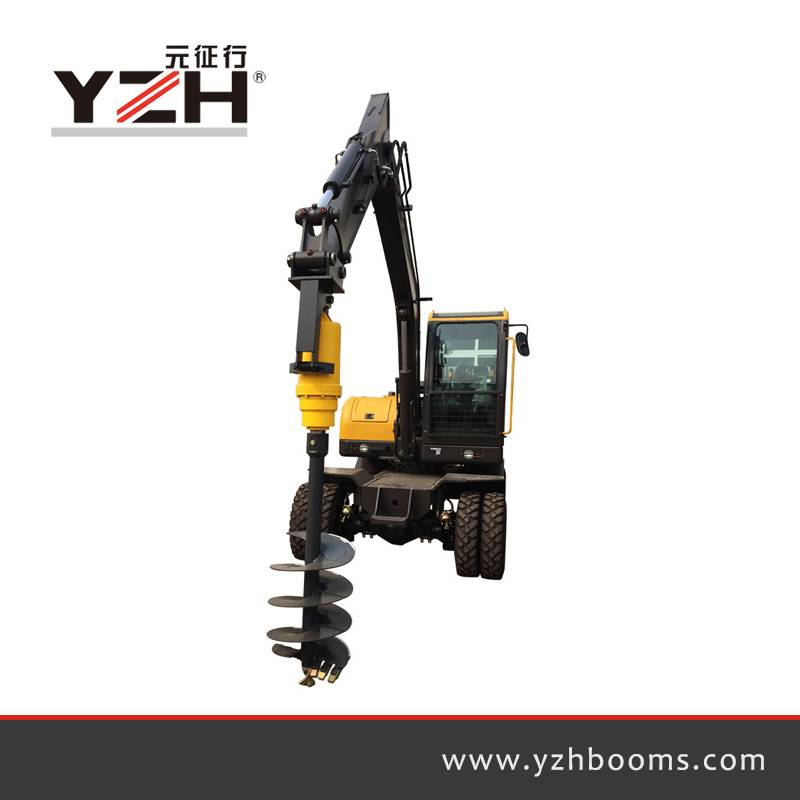

Engineered for power and built to last, the YZH Earth Auger is the new standard for basic construction and foundation work. Whether you're working on bridges, highways, buildings, or power plants, our auger drive provides the muscle and reliability you need to get the job done right.
At the heart of our system is a high-quality hydraulic motor and a robust planetary gearbox. This combination generates immense torque—up to 24,920 Nm—to effortlessly bore through compacted soil, clay, and soft rock, ensuring consistent performance where other augers fail.
Why source attachments from multiple suppliers? We offer a comprehensive range of auger drives perfectly matched for excavators of all sizes.
Mini Excavators (1.5 - 8 tons): Lightweight and agile models for landscaping, fencing, and utility work.
Mid-Size Excavators (13 - 20 tons): The ideal balance of power and versatility for building foundations and piling.
Large Excavators (17 - 30 tons): Our most powerful units, designed for deep, large-diameter drilling in major infrastructure projects.
With a massive selection of drill bits and extensions, the YZH Earth Auger can be configured for any task.
Drill Diameters: Choose from 150mm to 1200mm to meet your exact project specifications.
Deep Drilling: Easily increase your drilling depth with our standardized 1.5m extension rods.
Secure Connection: Our larger models feature a heavy-duty 75mm square output pin, ensuring a non-dislodgement connection for maximum safety and power transmission.
Consult the table below to find the ideal power head and drill rod combination for your excavator and application.
