YZH Rugged Stationary Pedestal Boom Rockbreaker Solution for Crusher Blockage Elimination

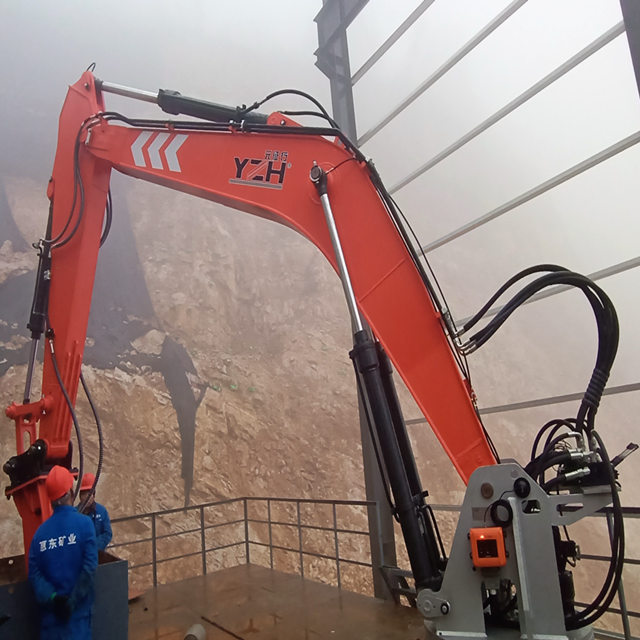

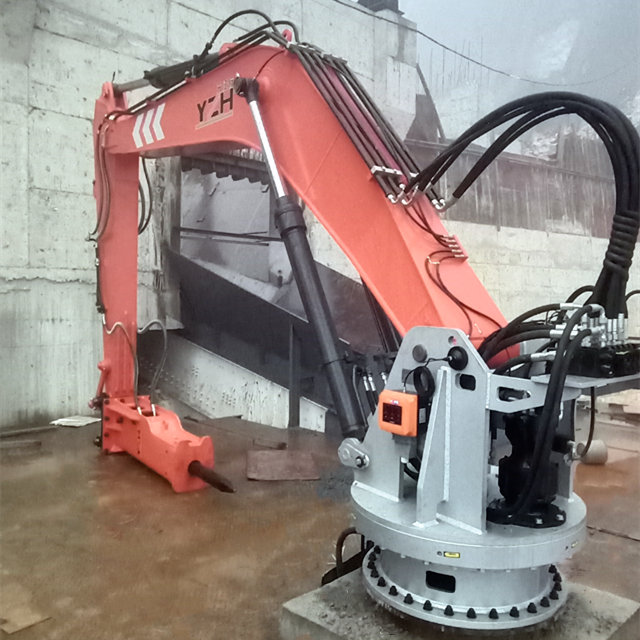

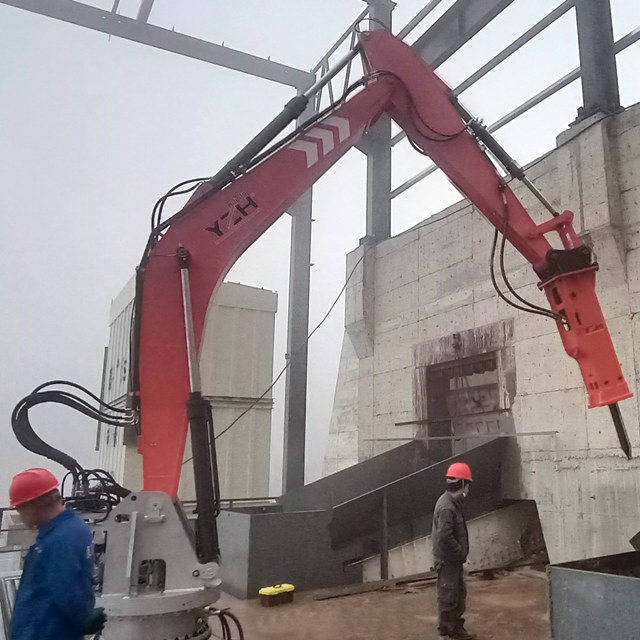

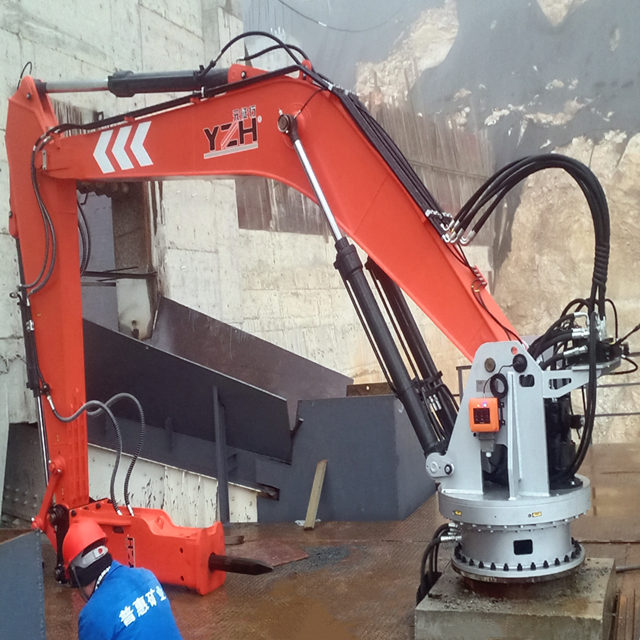

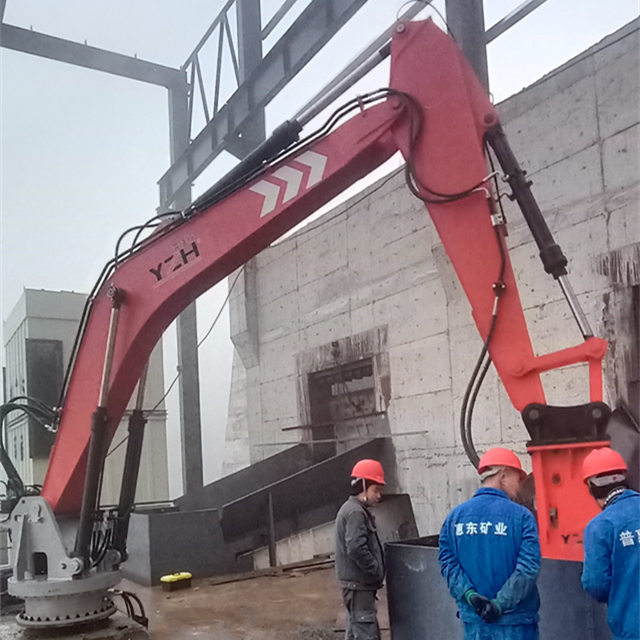

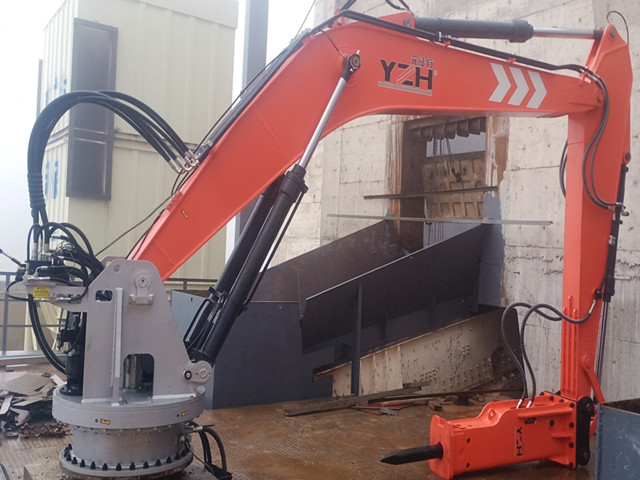

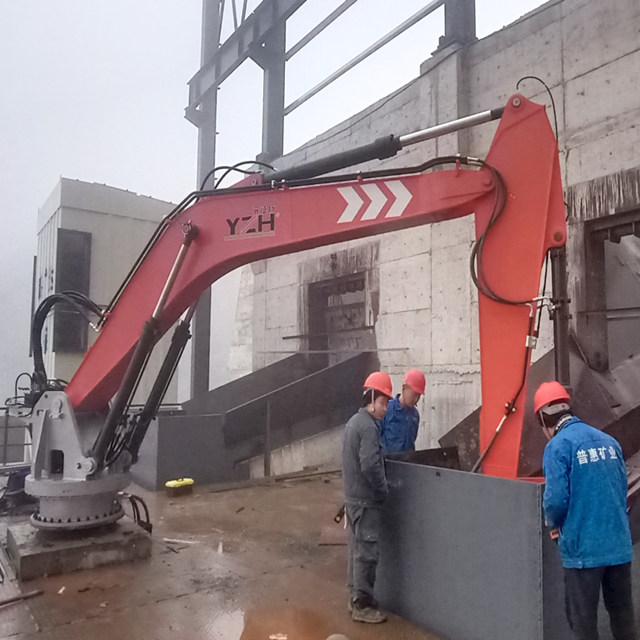

YZH stationary pedestal boom rockbreaker is a purpose-engineered equipment package designed to provide proactive rock breaking at critical material handling points such as crusher inlets, hoppers, and grizzly screens. Built to operate in the most demanding industrial environment, this machine plays a vital role in maintaining production flow by eliminating oversized material that can obstruct or damage primary crushing equipment.
Precision-Controlled Power for Continuous Flow
Equipped with a powerful hydraulic hammer mounted on a robust articulating boom, YZH stationary pedestal boom rockbreaker delivers targeted impact force to fracture and dislodge rocks that are too large for crusher entry. The unit is mounted on a stationary pedestal, ensuring solid stability and long-term performance without relocation.
With highly responsive control mechanisms, operators can position the boom with exceptional accuracy and activate the breaker safely from a remote station, significantly reducing the risks associated with manual clearing.
Key System Features
1. Heavy-Duty Design: Constructed with industrial-grade materials to withstand vibration, impact, and extreme weather.
2. Hydraulic Efficiency: Optimized hydraulic circuits and power units ensure consistent performance and energy efficiency.
3. Remote Operation: Joystick-controlled interface allows safe, precise movement from a control room or cabin.
4. Customization Options: Boom lengths, breaker sizes, and mount configurations can be adapted to specific crusher layouts.
System Components Overview
| Component | Functionality |
| Pedestal | Anchors the system in place with maximum stability |
| Boom | Provides reach, swing, and vertical control |
| Hydraulic breaker | Delivers concentrated impact force to crush rock |

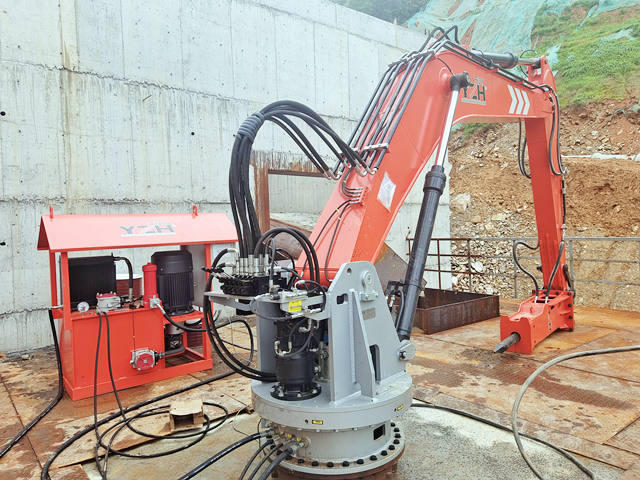

| Hydraulic power pack | Powers the boom and breaker with pressure control |
| Operator console | Interface for maneuvering and monitoring the system |
Advantages at a Glance
1. Reduces Crusher Downtime: Eliminates manual intervention and clears blockages rapidly.
2. Enhances Worker Safety: Removes personnel from hazardous zones near crushers.
3. Boosts Plant Efficiency: Enables smoother and uninterrupted processing.
4. Extends Equipment Life: Prevents crusher overload and mechanical damage.
5. Easy Integration: Seamlessly fits into existing plant layouts and control systems.
Industries That Benefit
1. Mining and Mineral Processing
2. Stone and Gravel Quarries
3. Cement and Lime Plants
4. Steel and Metal Recycling Yards
5. Power Generation Facilities
Wherever large material is handled and size reduction is required, YZH stationary pedestal boom rockbreaker provides unmatched reliability, safety, and operational continuity.
System Specification
| Model No. | Unit | WHB810 |
| Max. horizontal working radius | mm | 10700 |
| Max. vertical working radius | mm | 8150 |
| Min. vertical working radius | mm | 2620 |
| Max. working depth | mm | 7660 |
| Rotation | ° | 360 |
Trust YZH stationary pedestal boom rockbreaker to keep your crushers running, your team safe, and your production on track.
