YZH Fixed Pedestal Boom System – Your First Line of Defense Against Crusher Downtime
When oversized rock threatens to choke your crusher and disrupt production, YZH fixed pedestal boom system steps in as a powerful, permanent solution. Specially developed for heavy-duty applications in mining, aggregates, and industrial processing, this system ensures continuous flow by automatically clearing blockages before they escalate into costly delays or damage.
Unmatched Impact Control Where It Counts

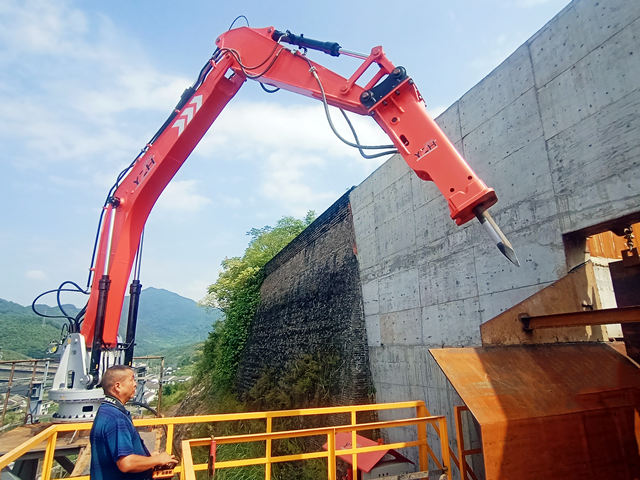

At the core of this system is a high-powered hydraulic breaker, mounted to a multi-jointed boom fixed on a solid pedestal. With exceptional reach, rotational range, and breaking force, it easily fractures boulders and jammed material right at the crusher face or grizzly.
Control is seamless. Operators can manage the entire system remotely, guiding the boom’s movement and firing the hammer with precision — all from a safe and ergonomic control station. This drastically reduces risk and eliminates the need for dangerous manual clearing.
What Makes the YZH System Stand Out
1. Built Tough for Continuous Use
Crafted from heavy-duty steel and equipped with high-performance hydraulic components, the system is designed for non-stop operation in rugged environments.
2. Fully Remote-Operated
Control all boom movements and hammer operations from a remote console, with real-time feedback and emergency overrides.
3. High Customizability
Tailored to your plant's needs — with a variety of boom lengths, breaker sizes, swing angles, and mounting configurations available.
4. Simple Maintenance Design
Easy access to service points, integrated auto-lubrication options, and durable parts reduce downtime and upkeep costs.
System Components Include

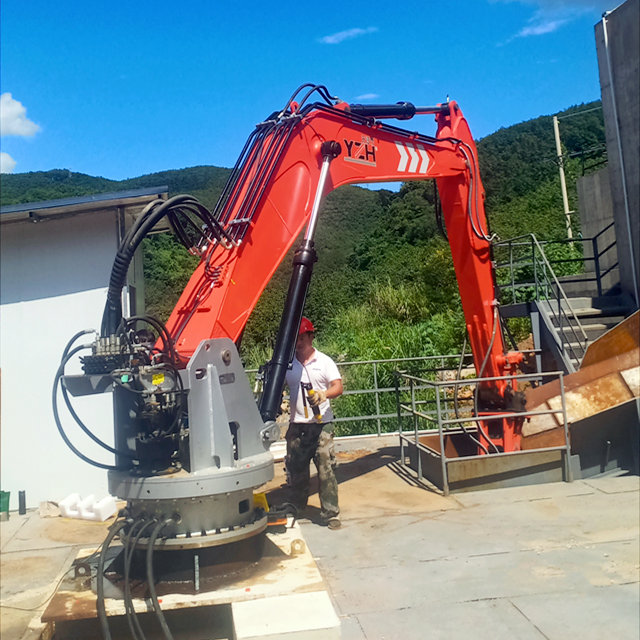

Reinforced Base Pedestal – Anchors the system firmly to concrete or steel foundations.
Multi-Axis Boom – Provides precise horizontal and vertical positioning.
Hydraulic Breaker – Breaks oversized material quickly with impact energy tailored to rock hardness.
Power Supply Unit – Powers boom and hammer with regulated hydraulic pressure.
Operator Interface – Joystick or touchscreen console for real-time control, plus safety features and alerts.
Benefits You Can Count On
1. Keeps your crusher fed and functioning without interruption
2. Prevents equipment damage from oversized material
3. Keeps personnel away from hazardous manual rock clearing
4. Increases site productivity and reduces emergency shutdowns
5. Designed to last — even in the harshest industrial conditions
Ideal Use Cases

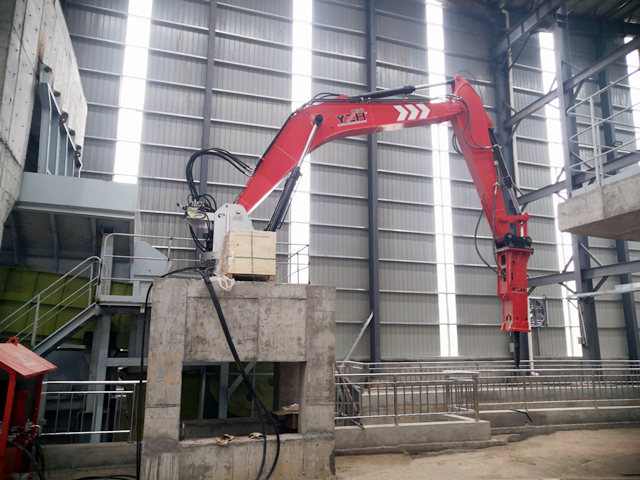

1. Underground or Open-Pit Mines – Installed at primary crusher stations or drawpoints
2. Stone Quarries – Mounted near hopper grizzlies to handle raw boulder fragments
3. Cement Plants – Prevents kiln feed blockages from limestone or clinker
4. Steel Mills – Clears oversized slag or scrap from feeder systems
5. Material Ports & Terminals – Maintains flow in unloading operations
Specification of YZH Fixed Pedestal Boom System
| Model No. | Unit | WHC880 |
| Max. horizontal working radius | mm | 11300 |
| Max. vertical working radius | mm | 8960 |
| Min. vertical working radius | mm | 3060 |
| Max. working depth | mm | 7270 |
| Rotation | ° | 360 |
