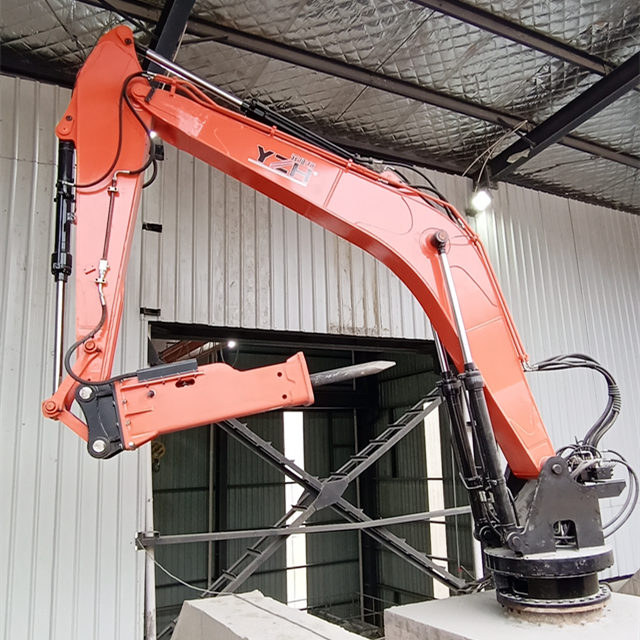

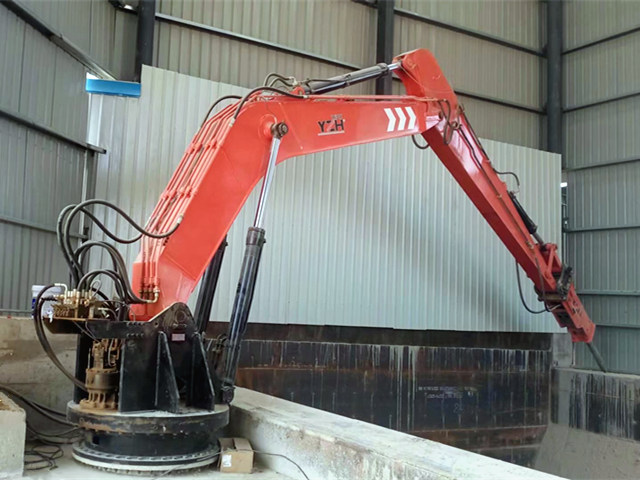

YZH Static Rockbreaker System–Engineered for Uninterrupted Crushing
YZH static rockbreaker system is a purpose-built, stationary solution designed to prevent crusher blockages and streamline material handling at the heart of mining, quarrying, and aggregate processing operations. Rigid in structure yet highly flexible in movement, this machine is a powerful tool that ensures the safe and efficient breaking of oversized materials before they enter primary crushers.

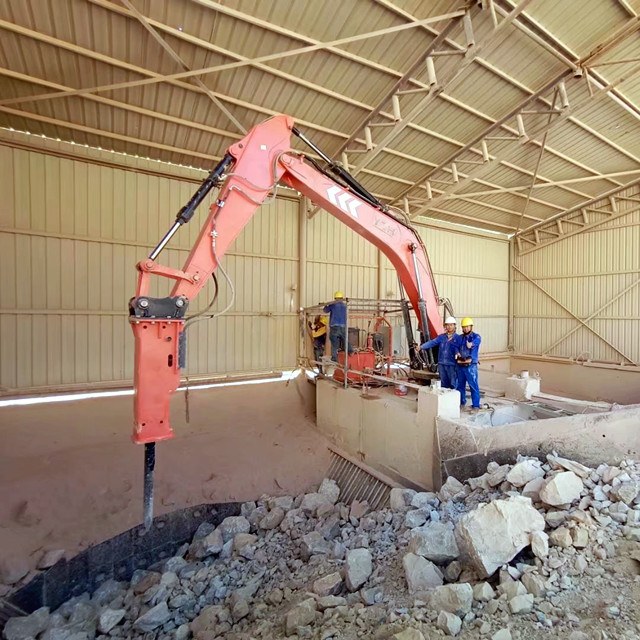

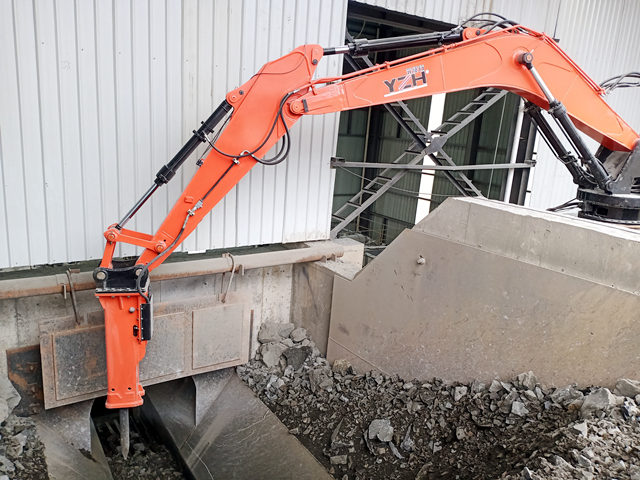

Mounted directly at the crusher feed point, YZH static rockbreaker system is designed to work around the clock—automating the rock breaking process, minimizing manual labor, and protecting your crushing equipment from damage caused by large or jammed material.
What Sets YZH Apart
1. Built for Harsh Environments
Heavy-duty construction ensures reliable operation under continuous loads, high dust levels, and extreme temperatures.
2. Maximum Reach and Flexibility
Available with a wide range of boom configurations, swing arcs, and breaker forces to suit both low-profile and high-wall installations.
3. Smart, Simple Controls
Operators use an intuitive remote control station to safely maneuver the boom and activate the hydraulic hammer, eliminating the need for direct physical presence at the crusher area.
4. Hydraulic Precision
The advanced hydraulic system provides smooth, precise motion of the boom and controlled, powerful impacts from the breaker head—delivering consistent results with every cycle.
System Overview
Boom Assembly: Fabricated from high-tensile steel, engineered for maximum articulation and operational range.
Hydraulic Breaker: A robust percussion tool capable of pulverizing oversized rocks into manageable sizes.
Mounting Base: Securely anchors the system to concrete or steel structures, offering unshakable stability.
Power Unit: An efficient hydraulic power pack with built-in cooling, filtration, and pressure control.
Control Interface: Options for remote joystick stations, touchscreens, or cabin-based operation.
Core Advantages of Static Rockbreaker System
1. Improved Throughput
Keeps crushers clear of blockages, maintaining consistent feed and reducing unplanned downtime.
2. Worker Protection
Removes the need for risky manual clearing using explosives or handheld tools near active crushers.
3. Machine Protection
Reduces mechanical stress and wear on crusher jaws, feeders, and belts.
4. Low Operating Costs
Designed for minimal maintenance and high mechanical reliability.
5. Custom-Fitted to Your Site
Modular design allows full adaptation to unique layout, rock size, and breaking requirements.
Applications Across Industries
1. Underground and Surface Mining
Installed at primary crusher stations to manage coarse rock fragments.
2. Stone Quarries

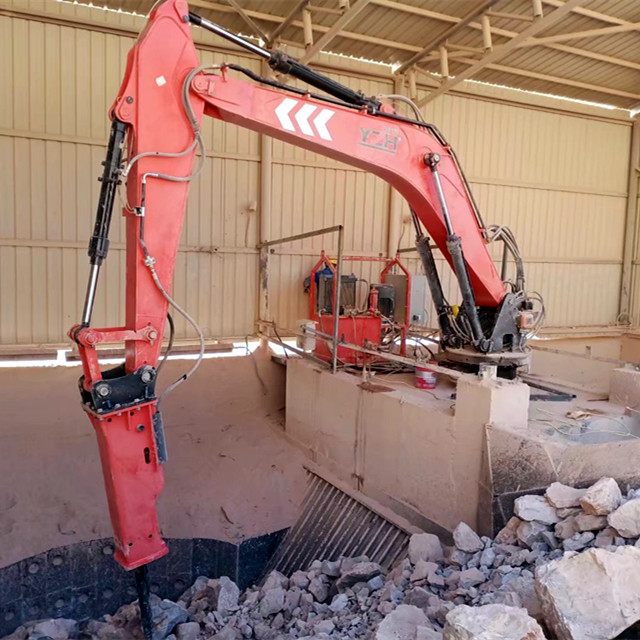

Breaking up massive boulders and debris stuck on grizzly screens or in feeders.
3. Cement Production
Pre-crushing clinker or large limestone at the crusher entry point.
4. Steel and Metal Recycling Yards
Clearing oversized metallic scrap and slag for smoother processing.
5. Power Plants and Ports
Dislodging coal or ore jams in chutes, hoppers, and ship unloaders.
Specification of Static Rockbreaker System
| Model No. | Unit | WHB710 |
| Max. horizontal working radius | mm | 9000 |
| Max. vertical working radius | mm | 7150 |
| Min. vertical working radius | mm | 2440 |
| Max. working depth | mm | 6740 |
| Rotation | ° | 360 |
YZH—Your Partner in Operational Excellence
Every YZH static rockbreaker system is designed with a focus on long-term durability, smart automation, and operational safety. Our engineers work closely with clients to configure each system to the specific demands of their facility, ensuring seamless integration and immediate performance gains.
Don't let rock jams halt your production. Equip your crusher with YZH static rockbreaker boom system and experience continuous flow, safer operations, and lower maintenance costs.
