A few months ago, I visited a granite quarry in South America where the operations manager showed me something striking. Their primary gyratory crusher was experiencing blockages three to four times per shift. Each blockage meant 45 minutes of lost production, expensive manual intervention, and serious safety risks for workers who had to enter the hazardous crusher area.
Then he showed me his solution—a stationary pedestal rock breaker boom system installed above the crusher feed. Within a month, blockages dropped to almost zero. The investment paid for itself in less than six months through recovered production time.
This experience illustrates exactly why pedestal rock breaker boom systems have become essential equipment for modern mining and quarrying operations worldwide. In this comprehensive guide, YZH will walk you through everything you need to know about these systems: how they work, why they outperform mobile alternatives, and how to select the right system for your specific application.

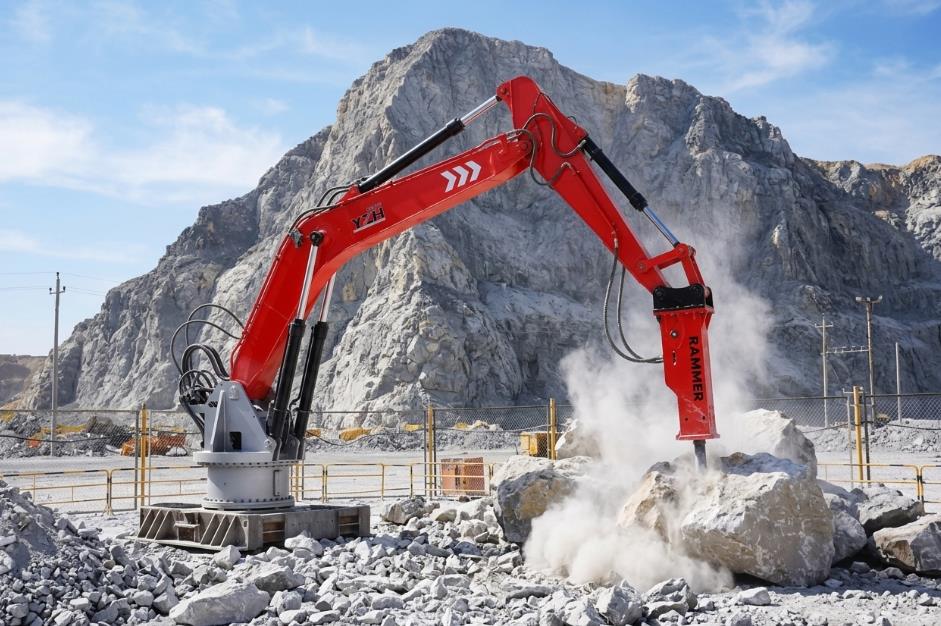

A pedestal rock breaker boom system is a stationary hydraulic rock breaking solution designed to handle oversized materials and prevent blockages at primary crushers, grizzlies, and material handling points. According to Wikipedia's rockbreaker definition, these machines are essential in mining operations where they manipulate large rocks and reduce oversized materials. When evaluating a pedestal boom for your operation, understanding what a pedestal rock breaker boom system offers compared to mobile alternatives is essential for making the right investment decision. Unlike mobile equipment, a pedestal boom remains fixed in position, providing consistent, reliable rock breaking power exactly where it's needed.
The YZH pedestal rock breaker boom system consists of three main components working together as an integrated rockbreaker system:
The Boom Assembly: A heavy-duty structural framework mounted on a concrete pedestal, featuring multiple hydraulic arms that provide reach in multiple directions. YZH offers boom reaches from 3 meters to over 12 meters, allowing coverage of the entire crusher cavity or feed hopper area.
The Hydraulic Hammer: Attached to the boom's working end, this is where the actual rock breaking happens. YZH is an authorized RAMMER partner, offering RAMMER hydraulic hammers renowned for their durability and breaking efficiency. Hammers range from 500 to 3000 joules of impact energy, selected based on the material hardness and fragmentation requirements. According to Wikipedia's hydraulic breaker article, these machines convert hydraulic power into repeated impact blows.
The Control System: YZH provides multiple control options including cabin-mounted controls, radio remote operation, and even 5G teleoperation capabilities for underground mining applications. This allows operators to safely control the rock breaker from a protected location while maintaining precise positioning over blockages.
Understanding the components of your rockbreaker boom system helps with maintenance planning and troubleshooting. Here's what makes up a complete YZH system:
The boom structure is engineered for maximum reach and durability. YZH pedestal boom systems feature:
Heavy-wall steel construction with internal reinforcement for maximum rigidity
360-degree rotation on the base and boom joints for complete coverage
Reinforced boom geometry designed to handle reaction forces from the heaviest hammers
Corrosion-resistant coatings for longevity in harsh mining environments
The boom is mounted on a concrete pedestal that YZH engineers specify based on the expected reaction forces and site conditions. Proper pedestal design is critical—YZH provides detailed mounting specifications and engineering support to ensure your installation handles years of heavy-duty operation.
Every YZH rockbreaker system includes a dedicated hydraulic power unit that provides:
Pressurized hydraulic oil flow to the hammer
Precise pressure and flow control for optimal breaking performance
Heat management for continuous operation in ambient temperatures from -45°C to +75°C
Filtration systems that protect hydraulic components from contamination
YZH's power units are designed for reliability. With ISO9001 certified manufacturing and over 3000 systems installed globally, the engineering behind these units reflects 20+ years of refinement.
YZH offers three control options:
Cabin Control: Hard-wired control panels installed in the crusher control room, providing reliable operation with physical feedback controls. This option minimizes operator exposure to hazardous areas.
Radio Remote: Handheld radio remote controls allowing the operator to stand in a safe location while maintaining full control of the boom and hammer. This option improves operator safety and positioning flexibility.
5G Teleoperation: YZH's advanced control solution for underground mining, allowing remote operation from surface control rooms. According to Wikipedia's rockbreaker article, remote operation technology represents the cutting edge of mining safety, eliminating the need for workers to enter hazardous zones.
When planning your rock breaking capabilities, you might consider excavator-mounted breakers or mobile rock breakers. Here's why many operations ultimately choose stationary pedestal boom systems:
A pedestal rock breaker boom provides consistent positioning. Once installed, the boom is always in the right position—operators don't waste time positioning equipment before each shift. The YZH boom is always ready, eliminating the setup time that mobile equipment requires.
Mobile equipment requires transportation, fuel, operator attention, and regular repositioning. A stationary rockbreaker boom operates continuously without these costs. The initial investment is amortized over years of low-cost operation, typically resulting in a lower total cost of ownership within 2-3 years.
With radio remote or cabin-mounted controls, operators control the breaker from a protected location. They never need to enter the hazardous zone near the crusher feed. YZH's remote control options eliminate the need for workers to be in the danger zone during rock breaking operations.
A pedestal rock breaker boom is always operational during crusher operating hours. There's no waiting for mobile equipment to arrive from another location, no equipment conflicts with other operations, and no downtime from equipment breakdowns elsewhere on site.
For primary gyratory and jaw crushers, a dedicated boom system outperforms mobile equipment because:
It can be positioned optimally above the crusher feed
It provides consistent reach into the exact areas where blockages occur
It operates continuously without repositioning breaks
It can be integrated with crusher automation systems
YZH has installed over 3000 pedestal boom systems worldwide, and the feedback consistently highlights these advantages for primary crushing applications.
YZH pedestal boom systems serve multiple applications across the mining and aggregates industry:
The most common application—protecting gyratory and jaw crushers from oversized rocks that cause bridging and blockage. The YZH system positions the hammer above the crusher feed, breaking oversized material before it enters the crushing chamber.
At grizzly bars and screening stations, YZH boom systems break material that jams between bars or sits on the grizzly deck. This maintains consistent material flow and prevents shutdowns.
Stockpile hoppers and storage bunkers often experience material hang-ups. A YZH pedestal boom can be installed at multiple positions to cover the entire hopper geometry.

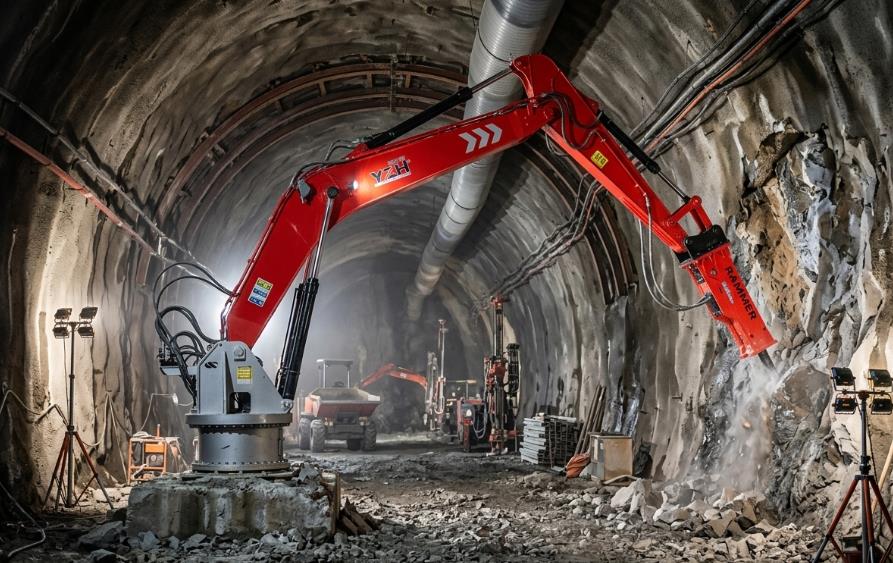

For underground operations, YZH offers specialized boom systems designed for confined spaces. The 5G teleoperation capability is particularly valuable here, allowing remote operation from safe surface locations while the breaker works underground.
YZH also supplies boom systems for mobile crusher applications, providing flexibility for operations that move between sites.
When evaluating a pedestal rock breaker boom system, consider these key specifications:
YZH offers boom reaches from 3 to 12+ meters. The right reach depends on:
Crusher feed opening dimensions
Desired coverage area
Pedestal mounting height
Material trajectory and clearance
YZH's engineering team helps customers calculate optimal reach requirements based on specific crusher dimensions and operational parameters.
Hammer selection depends on material hardness and fragmentation requirements. YZH's RAMMER partnership provides access to:
G120-G500: Medium-duty hammers (800-4000 joules) for aggregate and quarry applications
G1000-G3000: Heavy-duty hammers (4000-10000 joules) for mining and hard rock applications
RAMMER hammers are engineered for durability in demanding applications, and YZH's authorized status means customers receive genuine RAMMER parts and factory support.
YZH systems are rated for operation from -45°C to +75°C, making them suitable for:
Arctic mining operations in Canada, Russia, and Scandinavia
Desert operations in Australia, Africa, and the Middle East
Tropical operations in Southeast Asia and South America
This temperature range exceeds most competitors' offerings, providing reliable operation in extreme climates.
Proper installation is critical for long-term performance. YZH provides comprehensive installation support:
The pedestal must be engineered to handle:
Boom weight and dimensions
Hammer reaction forces during operation
Seismic loads (depending on location)
Drainage and access requirements
YZH provides detailed pedestal drawings and load specifications. For complex installations, YZH offers on-site engineering consultation.
The hydraulic power unit should be positioned for:
Easy maintenance access
Protection from dust and debris
Adequate ventilation for heat management
Connection routing to the boom assembly
YZH provides full hydraulic schematics and can supply complete installation kits.
Modern crushing operations often require integration with plant control systems. YZH boom systems can be integrated with:
PLC-based control systems
Crusher automation systems
SCADA monitoring systems
Emergency stop circuits
This integration ensures the rock breaker operates in coordination with the crusher, improving efficiency and safety.
YZH designs systems for long life and easy maintenance. Here are key maintenance practices:
Check hydraulic oil level and condition
Inspect hammer tool (moil point or chisel) for wear
Verify control system operation
Check for hydraulic leaks
Inspect boom pivot points and greasing points
Check hydraulic filter condition
Verify safety systems and emergency stops
Test radio remote communication
YZH recommends:
Hydraulic oil change every 2000 operating hours or annually
Hammer service according to RAMMER specifications (every 500-1000 hours)
Full system inspection annually
Structural inspection of boom assembly every 3-5 years
YZH offers 12-hour response time for service support, ensuring minimal downtime when maintenance issues arise. With service engineers experienced across 60+ countries, YZH provides global support for customers worldwide. For detailed product specifications, visit our static rockbreaker boom system page.
YZH has manufactured pedestal boom systems since 2002, accumulating over two decades of engineering expertise and manufacturing capability. The company has installed over 3000 pedestal rock breaker boom units globally, serving operations across 60+ countries. YZH's experience since 2002 demonstrates long-term commitment to quality manufacturing and customer support.
Manufacturing Excellence: YZH operates ISO9001, ISO14001, and ISO45001 certified facilities, ensuring consistent quality and safety standards.
Global Track Record: With 3000+ systems installed across 60+ countries, YZH has experience with applications worldwide.
RAMMER Partnership: As an authorized RAMMER agent, YZH provides genuine RAMMER hydraulic hammers with full factory support.
Temperature Leadership: YZH's -45°C to +75°C operating range exceeds most competitors, enabling operations in the world's most demanding climates.
Responsive Service: With 12-hour response time commitment and global service network, YZH ensures your system stays operational.
Custom Engineering: Every application is unique. YZH's engineering team provides custom boom configurations, hammer selection, and control system integration for your specific requirements.
Standard systems typically ship within 4-8 weeks. Custom configurations may require additional engineering time. YZH provides detailed delivery schedules during quotation.
Installation typically requires 2-4 weeks depending on site conditions and whether concrete curing time is required for the pedestal. YZH provides comprehensive installation documentation and can supply on-site supervision.
RAMMER hammers require regular tool inspection and replacement, periodic piston and seal service, and daily greasing. YZH supplies full maintenance documentation and can arrange RAMMER factory service.
Yes. YZH provides PLC integration and can work with most crusher control systems. Full technical specifications are available for your engineering team.
With proper maintenance, YZH boom systems typically provide 15-20+ years of service. The heavy-duty construction and quality materials are designed for long-term mining applications.
A pedestal rock breaker boom system is a significant investment, but for most primary crushing operations, the return on investment is compelling. Consider the costs:
Average crusher blockage costs $2,000-$5,000 per incident (production loss, labor, equipment stress)
A single hourly blockage rate reduction typically saves $50,000-$100,000 annually
Most YZH installations pay for themselves within 12-18 months
Beyond the financial return, you gain improved safety, consistent production, and reduced stress on crushing equipment. With YZH's 20+ years of experience, RAMMER partnership, and global service network, you're investing in a partnership that supports your operation for years to come. Explore our complete range of pedestal boom systems and rockbreaker solutions to find the perfect match for your crushing application.
Ready to eliminate crusher blockages and improve your crushing efficiency? Contact YZH for a custom quotation tailored to your specific application and requirements.
