The hydraulic rock breaker is a marvel of modern engineering. It takes the hydraulic pressure generated by a pump and converts it into a repetitive, high-impact mechanical force capable of shattering granite, basalt, and reinforced concrete.
For site managers and engineers, understanding how this equipment works is the first step to optimizing its use. Whether mounted on a mobile excavator or a stationary Rock Breaker Booms System, the fundamental physics remain the same: controlled chaos, harnessed for production.
This article breaks down the technical operation of hydraulic breakers and analyzes their pivotal role in modern industry.
At its core, a rock breaker is a hydraulic-to-mechanical energy converter. It operates on Pascal’s Law, which states that pressure applied to a confined fluid is transmitted undiminished in every direction.
The Cylinder & Piston: The heart of the machine. The piston is the only moving part that delivers the blow.
The Control Valve (Spool Valve): The "brain" that directs the flow of oil to either lift the piston or drive it down.
The Nitrogen Accumulator: A chamber filled with compressed nitrogen gas. It acts as a "spring," storing energy during the upstroke and releasing it during the downstroke to amplify the impact.
The Tool (Chisel/Moil): The heat-treated steel rod that physically strikes the rock.
The breaking action happens in a rapid two-step cycle, often striking 300–800 times per minute:
Step 1: The Upstroke (Cocked Phase)High-pressure hydraulic oil enters the cylinder. The control valve directs this oil to the bottom of the piston, pushing it upward. As the piston rises, it compresses the nitrogen gas in the accumulator, storing potential energy.
Step 2: The Downstroke (Impact Phase)Once the piston reaches the top, the valve shifts. It opens the path for high-pressure oil to the top of the piston. Simultaneously, the compressed nitrogen gas expands violently. The combined force of the oil pressure and the expanding gas drives the piston down at massive speed, striking the tool.
The Result:The kinetic energy is transferred through the tool into the rock, creating a shockwave that exceeds the tensile strength of the material, causing it to fracture.
While the mechanics are universal, the applications vary significantly.
In mining, efficiency is measured in tons per hour.

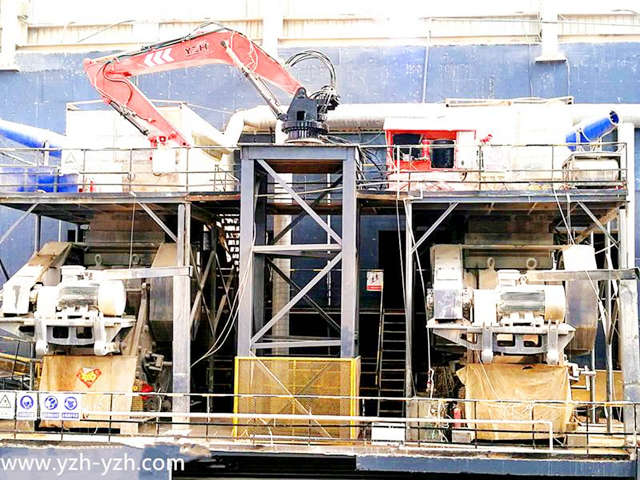

Application: Rock Breaker Booms Systems are installed permanently at the primary crusher (jaw or gyratory).
Function: They act as the "safety valve" for the plant. When an oversized rock blocks the crusher (bridging), the boom reaches in to break it, preventing dangerous human intervention and costly downtime.
Application: Mobile breakers mounted on excavators.
Function: Selective demolition. Unlike a wrecking ball, a hydraulic breaker can surgically remove a specific concrete wall while leaving the surrounding structure intact.
Application: Road repair and utility trenching.
Function: Breaking through asphalt or frozen ground (permafrost) to lay water pipes or fiber optic cables.
Before hydraulic breakers, rock removal relied on blasting or "drop balls." Modern hydraulic systems offer superior benefits:
Safety: Blasting requires site evacuation and poses risks of fly-rock. A Rock Breaker Booms System allows for continuous operation without clearing the area.
Precision: An operator can target a specific fault line in a rock, using less energy to achieve the same result.
Versatility: With adjustable frequency and power settings, the same machine can gently break concrete one day and shatter hard rock the next.
Automation: Modern systems can be integrated with remote control stations, removing the operator from the noise and vibration zone entirely.
The hydraulic rock breaker is not just a brute force tool; it is a precision instrument driven by fluid dynamics.
Understanding the interplay between the nitrogen accumulator, the piston, and the hydraulic oil allows operators to appreciate the machine's limits and capabilities. For mining operations, investing in a dedicated Rock Breaker Booms System ensures that this technology is applied exactly where it is needed most—at the crusher throat—guaranteeing safety and continuous production.
Ready to upgrade your crushing efficiency?Discover our range of stationary boom systems, engineered to harness hydraulic power for maximum throughput.
Q1: Why does a rock breaker need nitrogen gas?
A: The nitrogen gas acts as a shock absorber and a power booster. It stores energy during the piston's upstroke and releases it during the downstroke, significantly increasing the impact force without requiring extra hydraulic flow from the pump.
Q2: What is the difference between a "piston" and a "tool"?
A: The piston is internal; it moves up and down inside the cylinder and strikes the top of the tool. The tool (or chisel) is external; it is the part that actually touches and breaks the rock.
Q3: Can a hydraulic breaker work underwater?
A: Yes, but only if modified with an "underwater kit." Standard breakers will suck water into the cylinder on the upstroke, which destroys the seals and causes hydraulic lock. You must have a compressed air line connected to keep water out.
Q4: How does a Rock Breaker Boom System differ from an excavator attachment?
A: A Boom System is a stationary unit mounted on a pedestal, typically powered by an electric-hydraulic power pack. It is designed specifically for breaking oversized rocks at a crusher or grizzly screen, whereas an excavator attachment is for mobile, general-purpose use.
