In any crushing operation—whether in a hard rock mine, a limestone quarry, or an aggregate plant—oversize rock is an unavoidable reality. When a large boulder or bridging mass blocks the crusher feed, production stops. The question is not whether it will happen, but how quickly and safely you can resolve it.
For decades, the standard response was manual intervention: workers entering the crusher area with handheld breakers, sledgehammers, or even secondary blasting to clear the blockage. This approach is slow, dangerous, and costly. It exposes workers to serious injury risks, prolongs downtime, and places enormous pressure on maintenance teams.
A pedestal rock breaker boom system changes this equation entirely. By mounting a hydraulic hammer on a fixed boom structure positioned above the crusher, operators can break oversize rock and clear blockages remotely—without stopping the plant, without entering the danger zone, and without unnecessary delay.
This article explains in detail how a stationary rock breaker boom system improves both safety and productivity, and why it has become standard equipment in modern crushing operations worldwide.
To understand the value of a stationary rock breaker boom system, it helps to first understand the problems it solves.
Crushers are designed to process rock within a defined size range. When oversize material—rock that exceeds the crusher's feed opening—enters the system, it cannot pass through. It either sits on top of the feed opening, creating a blockage, or bridges across the opening, preventing any material from flowing through.
In a jaw crusher, this typically means a large boulder sitting on the jaw plates or wedged across the feed opening. In a gyratory crusher, it often means multiple pieces bridging across the top of the mantle. In either case, the result is the same: production stops.

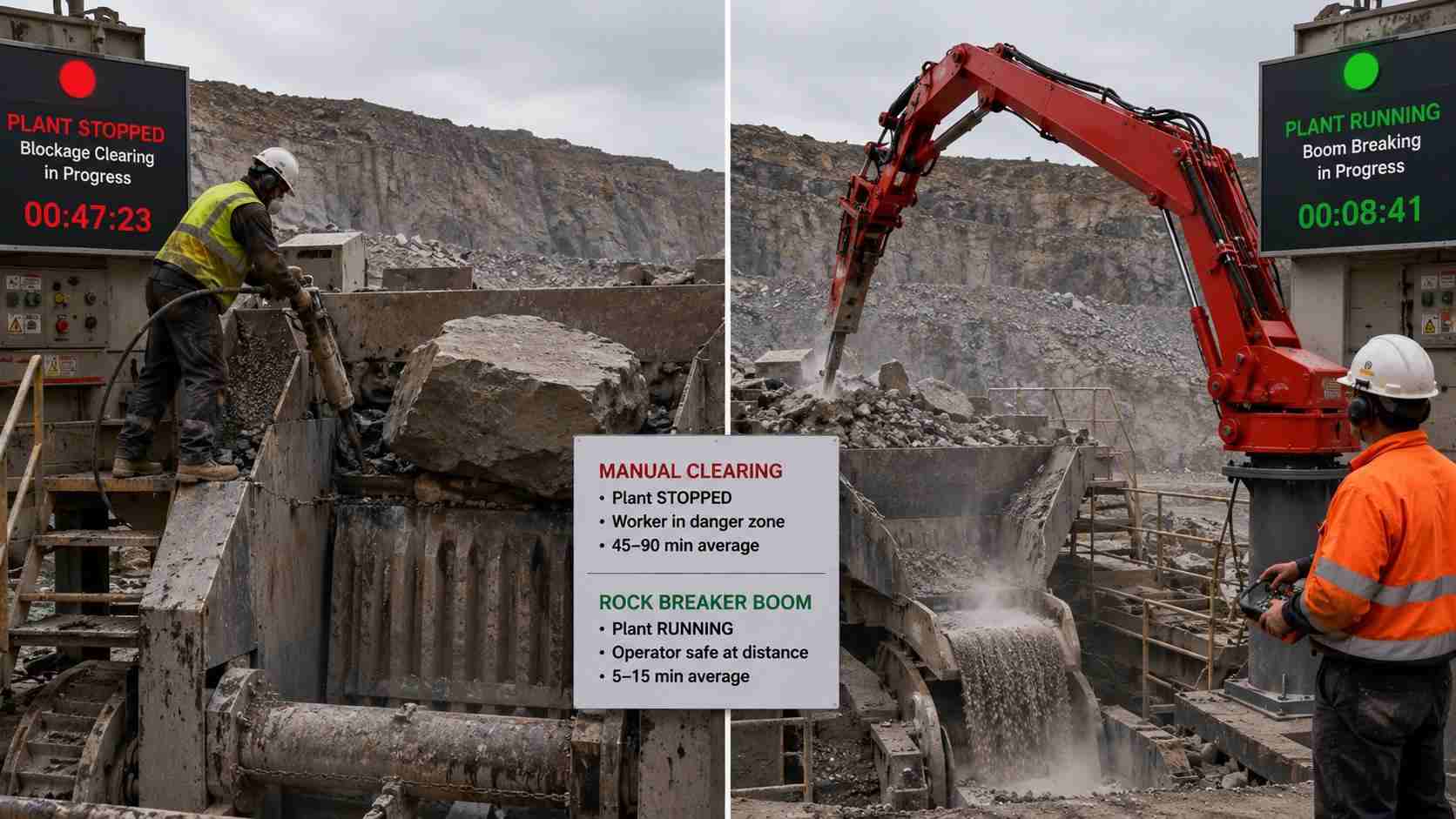

Without a rock breaker boom, the only option is manual clearing. This typically involves:
Stopping the crusher and associated conveyors
Waiting for the area to be declared safe
Workers entering the crusher area on foot or from elevated platforms
Using handheld hydraulic breakers, bars, or sledgehammers to break or dislodge the blockage
In extreme cases, using secondary blasting
Every step of this process carries serious risks. Workers are exposed to unstable rock masses that can shift or collapse without warning. They work in confined, elevated, or awkward positions. Dust, noise, and vibration add to the hazard. Falls, struck-by incidents, and crush injuries are all documented risks in this type of work.
Beyond the safety risk, the time cost is significant. A manual clearing operation can take anywhere from 30 minutes to several hours depending on the size and position of the blockage. During this time, the entire crushing circuit is idle.
A stationary rock breaker boom system—also called a pedestal rock breaker or fixed boom breaker—consists of three main components:
The Boom Structure: A multi-section articulated arm mounted on a fixed pedestal adjacent to the crusher. The boom provides the reach and positioning to place the hydraulic hammer anywhere within the crusher feed zone.
The Hydraulic Hammer: Mounted at the end of the boom, the hydraulic hammer delivers repeated high-energy blows to break oversize rock. The hammer is matched to the application in terms of impact energy and tool type.
The Control System: The operator controls the boom and hammer from a safe, remote position—either from a fixed control panel at a safe distance or via a wireless remote control system.
When oversize rock or bridging occurs, the operator positions the boom, activates the hammer, and breaks the material without entering the danger zone. The process is fast, controlled, and safe.
For a detailed explanation of how to match the hydraulic hammer to your specific application, see our guide on how to choose the right hydraulic hammer for your breaker boom system.
The most fundamental safety benefit of a stationary rock breaker boom system is the elimination of the need for workers to enter the crusher feed zone during clearing operations.
Crusher feed zones are classified as confined or restricted spaces in most jurisdictions. Entry requires permits, safety observers, rescue equipment, and detailed procedures. A rock breaker boom eliminates the need for this entry entirely during routine clearing operations, removing a significant category of workplace risk.
When workers manually clear a blockage, they are working directly beneath or adjacent to an unstable rock mass. The risk of sudden movement, collapse, or ejection of rock fragments is real and unpredictable. Remote operation via a rock breaker boom removes the worker from this exposure entirely.
Manual breaking operations involve swinging tools, flying rock fragments, and working in close proximity to heavy equipment. Remote operation eliminates these hazards for the operator. The only personnel near the crusher during boom operation are those who should not be there—and a properly managed site ensures they are not.
In many jurisdictions, mining and quarrying safety regulations are becoming increasingly strict regarding manual intervention in crusher areas. A stationary rock breaker boom system supports compliance with these regulations by providing a safe, engineered alternative to manual clearing.
Manual breaking with handheld equipment is physically demanding work. Prolonged use of handheld hydraulic breakers causes vibration-induced injury (HAVS), musculoskeletal strain, and fatigue. A boom system transfers this physical burden to the machine, protecting workers from long-term occupational health damage.
Beyond safety, a stationary rock breaker boom system delivers measurable productivity gains across every aspect of the clearing process.
With a rock breaker boom in place, the response to a blockage is immediate. The operator activates the system and begins breaking within seconds of identifying the problem. There is no need to stop the plant, assemble a clearing team, issue permits, or wait for the area to be declared safe.
In practical terms, a blockage that previously required 60–90 minutes to clear manually can often be resolved in 5–15 minutes with a boom system. Over the course of a year, this difference in response time translates directly into recovered production hours.

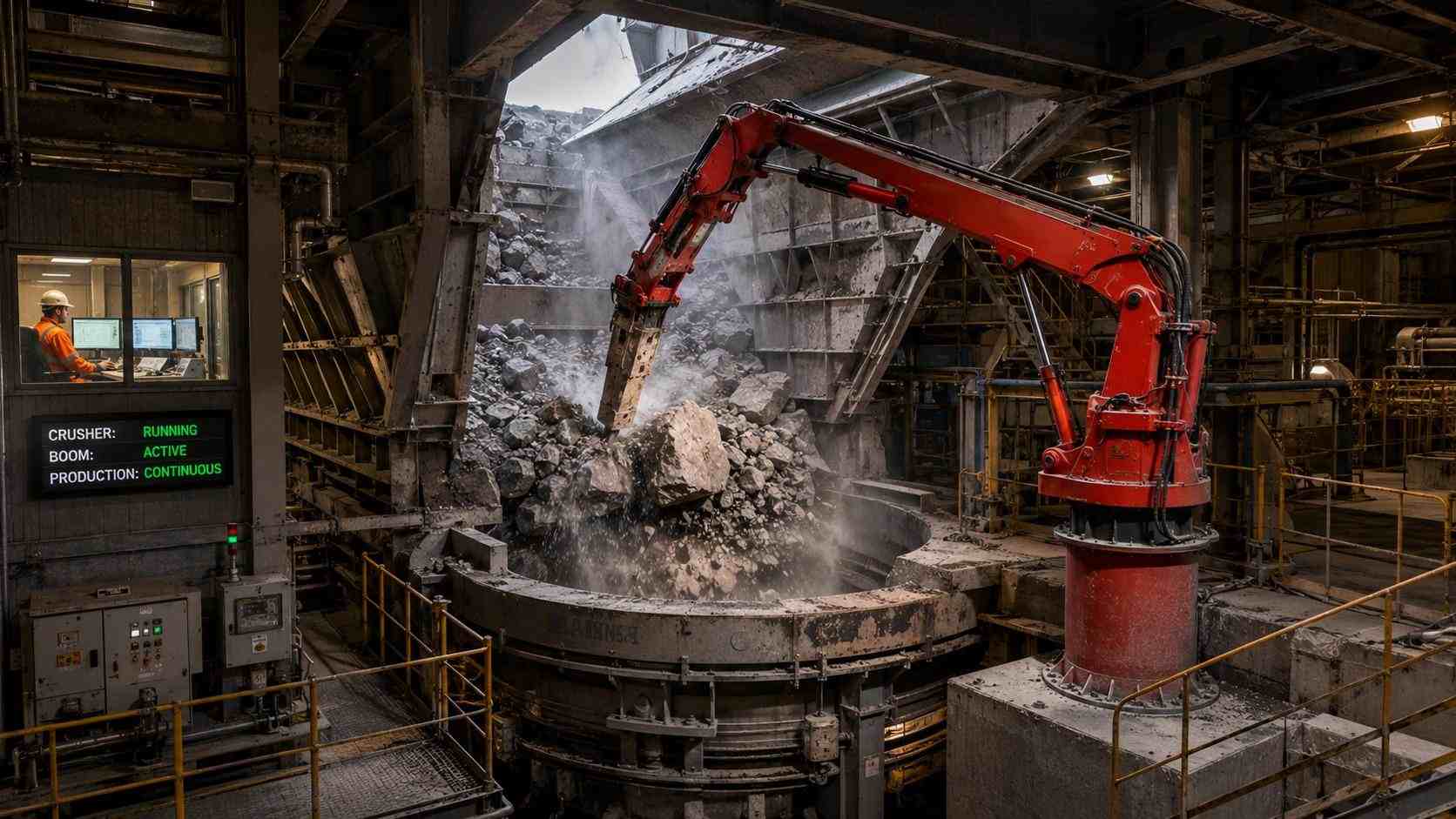

In many installations, the rock breaker boom can operate while the crusher and associated conveyors remain running. The boom breaks the oversize material at the feed point before it fully blocks the crusher, maintaining continuous material flow. This "break on the run" capability is one of the most significant productivity advantages of a well-designed boom system.
A stationary rock breaker boom system is always in position and ready to operate. There is no need to mobilize equipment, transport a breaker to the site, or wait for a maintenance crew. The system is permanently installed and available on demand, 24 hours a day.
When oversize rock enters a crusher without being pre-broken, it causes accelerated wear on jaw plates, mantles, concaves, and other wear components. It also causes mechanical shock that damages bearings, frames, and drive components. By breaking oversize material before it enters the crusher, a boom system reduces mechanical stress on the crusher itself, extending wear part life and reducing unplanned maintenance costs.
Every hour a crusher is idle due to a blockage is a lost production hour that cannot be recovered. By minimizing the duration and frequency of blockage-related stoppages, a rock breaker boom system directly increases the number of operating hours available per shift, per day, and per year.
For operations running two or three shifts, even a modest reduction in average downtime per blockage event can add up to hundreds of additional production hours annually.
Jaw crushers are particularly vulnerable to bridging because of their rectangular feed opening. Large, flat, or irregular rock pieces can wedge across the opening and resist gravity feeding. A boom system positioned above the jaw crusher feed allows the operator to break these pieces quickly and restore feed flow without stopping the crusher.
For guidance on sizing a boom system correctly for a jaw crusher, see our article on what size rock breaker boom do I need for a jaw crusher.

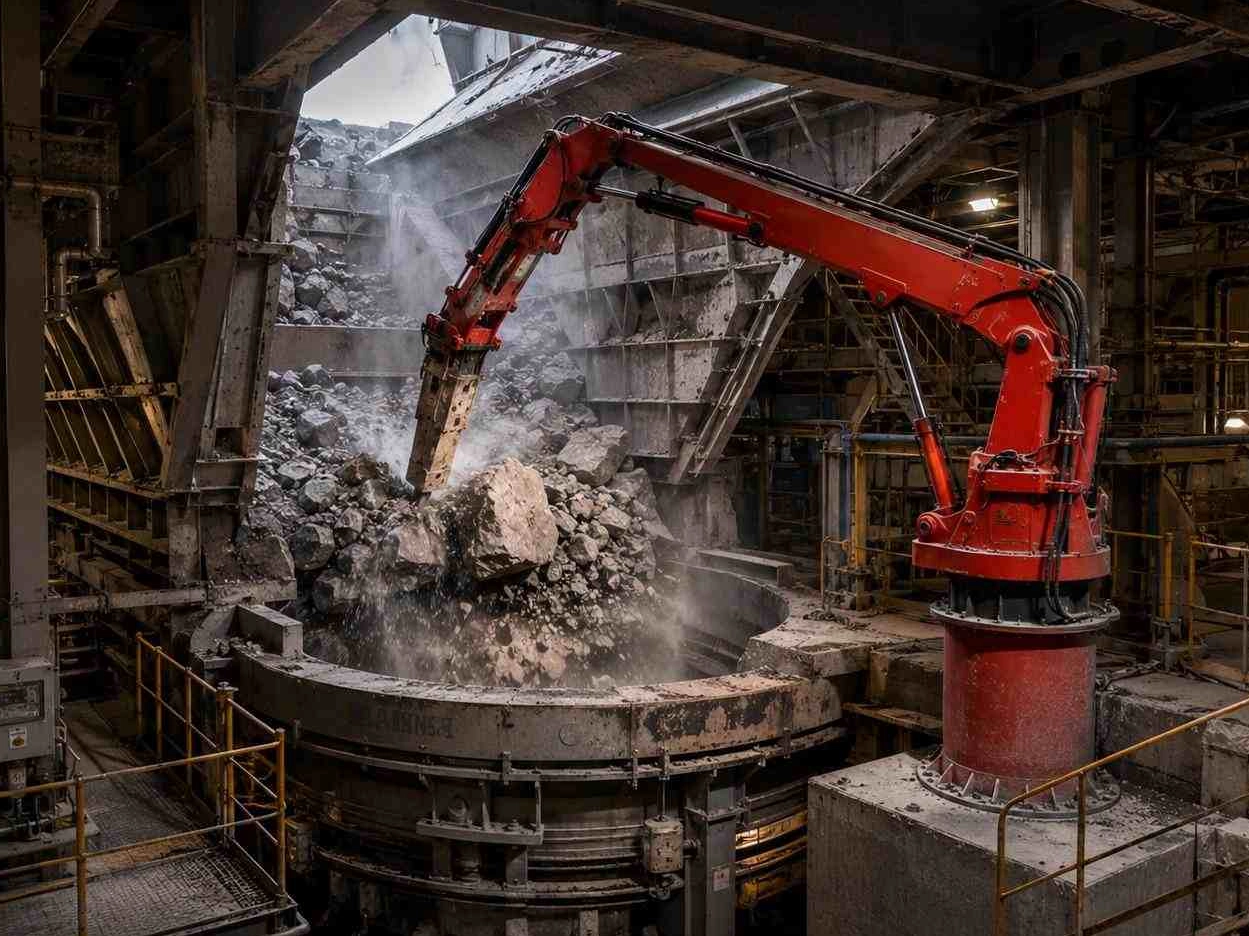

Gyratory crushers process very high tonnages and are used in large-scale mining operations where downtime costs are extremely high. The circular feed opening of a gyratory crusher can bridge with multiple pieces simultaneously, and the consequences of a prolonged stoppage are severe.
A boom system for a gyratory crusher must provide full 360-degree coverage of the feed opening and sufficient hammer energy to break the hardest ore types encountered at the mine. For more detail on this application, see our guide on how to select a breaker boom for a gyratory crusher.
In aggregate quarrying, rock types are often softer but production volumes are high and the commercial pressure to maintain throughput is constant. A rock breaker boom provides the same safety and productivity benefits in this context, with the added advantage that lower rock hardness typically allows faster breaking and shorter clearing times per event.
The control system is a critical component of any rock breaker boom installation. The choice of control system directly affects both the safety and the operational efficiency of the system.
A fixed control panel located at a safe distance from the crusher provides basic boom and hammer control. This is suitable for installations where the operator has a clear line of sight to the crusher feed zone from the control position.
Proportional control systems allow the operator to control boom movement speed precisely, enabling more accurate positioning of the hammer. This improves both the efficiency of breaking and the protection of the crusher structure from accidental contact.
A wireless remote control system gives the operator full mobility. The operator can position themselves at the best vantage point to observe the blockage and control the boom simultaneously. This is particularly valuable in complex crusher layouts or where visibility from a fixed panel is limited.
Remote control operation also maximizes the safety benefit of the system by allowing the operator to maintain maximum distance from the crusher during operation.
For a full breakdown of what to look for when specifying a complete system, see our guide on how to choose the right pedestal rock breaker boom system for your crusher.
The business case for a stationary rock breaker boom system is straightforward when the costs of the alternative are properly accounted for.
Consider a crushing operation that experiences an average of two blockage events per shift, each requiring 45 minutes to clear manually. This represents 90 minutes of lost production per shift. At three shifts per day and 300 operating days per year, this equals 450 hours of lost production annually.
With a rock breaker boom reducing average clearing time to 10 minutes per event, the same operation recovers approximately 350 production hours per year. At even a modest throughput value, this recovered production time typically pays for the entire system within the first year of operation.
Additional ROI factors include:
Reduced workers' compensation and injury costs
Lower wear part consumption on the crusher
Reduced maintenance labor for manual clearing operations
Improved workforce morale and retention
Reduced regulatory compliance risk and audit exposure
For a detailed discussion of system costs and what factors influence pricing, see our article on how much does a pedestal rock breaker boom system cost.
When selecting a stationary rock breaker boom system for safety and productivity, look for the following features:
Feature | Why It Matters |
Full working envelope coverage | Ensures the hammer can reach every point in the crusher feed zone |
Matched hydraulic hammer | Correct impact energy for your rock type and crusher size |
Wireless remote control option | Maximum operator safety and positioning flexibility |
Automatic lubrication system | Reduces maintenance burden and extends hammer tool life |
High-strength structural steel | Ensures long service life under high-cycle operation |
CE certification | Confirms compliance with international safety standards |
Spare parts availability | Minimizes downtime if a component requires replacement |
Choosing a supplier who manufactures both the boom and the hammer as a matched system eliminates compatibility risk and simplifies after-sales support. For guidance on evaluating suppliers, see our article on how to choose a reliable rock breaker boom manufacturer in China.
A: In most installations, yes. The boom can break oversize material at the feed point while the crusher continues to operate, maintaining production flow. The specific capability depends on the system design and site layout.
A: Most routine blockages can be cleared in 5 to 15 minutes with a properly sized boom system. This compares to 45 to 90 minutes or more for manual clearing operations.
A: Not necessarily. In many operations, the crusher operator also controls the boom system. The simplicity of modern control systems means that minimal additional training is required.
A: A properly sized and controlled boom system poses minimal risk to the crusher structure. Proportional control systems allow precise positioning, and experienced operators quickly develop the skill to work safely within the crusher feed zone.
A: In most jurisdictions, replacing manual confined space entry with remote mechanical operation is viewed favorably by safety regulators and insurers. It reduces the frequency and severity of reportable incidents and supports compliance with manual handling and confined space regulations.
A: Yes. Compact boom systems are available for underground crusher chambers where space is limited. The safety benefits are even more significant in underground environments where evacuation and emergency response are more complex.
A: The key factors are available space for the pedestal, the crusher feed opening dimensions, and the available hydraulic supply. Our engineering team can review your layout and confirm suitability—contact us here to request a free assessment.
A stationary rock breaker boom system is not simply a convenience—it is a fundamental improvement to the safety and productivity of any crushing operation that deals with oversize rock.
By eliminating the need for manual intervention in the crusher feed zone, it removes workers from one of the most hazardous tasks in the crushing industry. By reducing blockage clearing time from hours to minutes, it recovers production capacity that would otherwise be permanently lost. By reducing mechanical stress on the crusher, it extends the life of wear components and reduces unplanned maintenance.
For any operation where oversize rock is a regular occurrence, the question is not whether a rock breaker boom system is justified—it is how quickly the investment can be made.
At YZH, we design and manufacture pedestal rock breaker boom systems and hydraulic hammers for jaw crushers, gyratory crushers, and aggregate operations worldwide.
Send us your crusher model, layout drawing, and site details, and our engineering team will recommend the right system for your application.
