Selecting the right hydraulic hammer is just as critical as choosing the boom itself. In any crushing operation, the hydraulic hammer is the business end of the system—it is the component that actually breaks the rock, clears the blockage, and restores your production flow.
An incorrectly matched hammer can lead to poor breaking performance, increased stress on the boom structure, premature seal failure, and excessive downtime. Whether you are operating a jaw crusher, a gyratory crusher, or an aggregate plant, this guide will help you understand how to select the right hydraulic hammer for your pedestal rock breaker boom system.
The hydraulic hammer and the boom must work as a single, integrated unit. The boom provides the reach and positioning, while the hammer provides the impact energy. Getting this relationship right is the foundation of a well-performing system.
When sizing a hammer, you must consider three things simultaneously:
Structural Capacity: Can the boom handle the weight and vibration of this specific hammer without accelerating wear on pins, bushings, and cylinders?
Hydraulic Compatibility: Does your hydraulic power unit (HPU) provide the required oil flow and pressure for the hammer to operate at its rated performance?
Application Demands: Does the hammer have the right impact energy and blow frequency to break your specific rock type efficiently?
If any one of these three factors is mismatched, the system will underperform or fail prematurely. A hammer that is too heavy will damage the boom structure. A hammer that is underpowered will fail to break hard rock efficiently. A hammer that receives insufficient hydraulic flow will deliver weak, inconsistent strikes.
If you are unsure about the compatibility of your current setup, you can contact our engineering team for a professional assessment.
The single most important input for hammer selection is the hardness and compressive strength of the rock you are breaking.
Rock hardness is typically measured by Uniaxial Compressive Strength (UCS) in MPa:
Rock Type | Typical UCS Range | Hammer Requirement |
Soft rock (limestone, chalk) | 20–80 MPa | Lower energy, higher frequency |
Medium rock (sandstone, basalt) | 80–150 MPa | Medium energy and frequency |
Hard rock (granite, quartzite) | 150–250 MPa | High energy, larger tool diameter |
Very hard rock (iron ore, taconite) | 250 MPa+ | Maximum energy, heavy-duty model |
Abrasiveness is equally important. Highly abrasive rock such as quartzite or siliceous ore will wear the tool much faster than softer materials. In high-abrasion applications, tool material grade and replacement frequency must be factored into the operating cost calculation.
The average size of the oversize rock also matters. Very large boulders require a hammer with sufficient energy to initiate a fracture deep within the rock mass. Smaller oversize pieces may be broken more efficiently with a higher-frequency, lower-energy hammer.
All hydraulic hammers deliver impact energy through repeated blows. The two primary performance parameters are impact energy (joules per blow) and blow frequency (blows per minute). Understanding the trade-off between these two parameters is essential for correct hammer selection.
High impact energy hammers deliver fewer but more powerful blows. Each strike penetrates deeper into the rock mass, initiating fractures from within. This is the correct approach for:
Hard, massive rock with high compressive strength
Very large oversize boulders
Rock that requires deep penetration to fracture effectively
Applications where the rock does not respond to surface impact alone
High blow frequency hammers deliver more strikes per minute at lower individual energy levels. This is more effective for:
Softer or more fragmented rock
Clearing bridging in a hopper or feeder
Smaller oversize pieces that fracture easily
Applications where surface impact is sufficient to break the material
Many modern hydraulic hammers offer adjustable energy and frequency settings, allowing the operator to tune the hammer to the material being processed. This flexibility is particularly valuable in operations where rock characteristics vary across different blast rounds or feed sources.
Every hydraulic hammer has a defined operating window for hydraulic flow (L/min) and pressure (bar). Operating outside this window—either above or below—will cause performance problems and accelerate component wear.
If the HPU cannot deliver the minimum required flow for the hammer:
Strike energy will be reduced
Blow frequency will drop
Breaking performance will be inconsistent
The hammer may stall or fail to cycle properly
If the HPU delivers more flow than the hammer is rated for:
Internal components will be subjected to excessive stress
Oil temperature will rise, degrading seal performance
Cavitation can occur in the hydraulic circuit
Hammer service life will be significantly reduced
Before selecting a hammer, confirm the following from your HPU specification:
Maximum available flow at the boom connection point (L/min)
Operating pressure range (bar)
Return line back pressure
Oil cooling capacity
Choose a hammer whose rated flow and pressure requirements fall comfortably within your HPU's operating range. If your HPU is undersized for the hammer you need, upgrading the HPU is a more cost-effective solution than accepting a mismatched system.
For guidance on how HPU specifications relate to overall system sizing, see our article on how to choose the right pedestal rock breaker boom system for your crusher.
The weight of the hydraulic hammer directly affects the structural loading on the boom. Every boom is designed with a maximum tool weight rating—the maximum combined weight of the hammer and tool that the boom can carry without exceeding its design stress limits.
Exceeding this limit causes:
Accelerated wear on boom pins and bushings
Increased stress on hydraulic cylinder rods and seals
Fatigue cracking in boom structural members
Reduced service life of the entire boom assembly
As a general rule, the hammer weight should not exceed the maximum tool weight rating specified by the boom manufacturer. When in doubt, choose a hammer within the lower portion of the boom's rated capacity range—particularly in high-cycle applications where the boom operates for many hours per day.
For jaw crusher applications where boom sizing and hammer weight are closely related, see our detailed guide on what size rock breaker boom do I need for a jaw crusher.
For gyratory crusher applications where hammer energy requirements are typically higher, see our guide on how to select a breaker boom for a gyratory crusher.

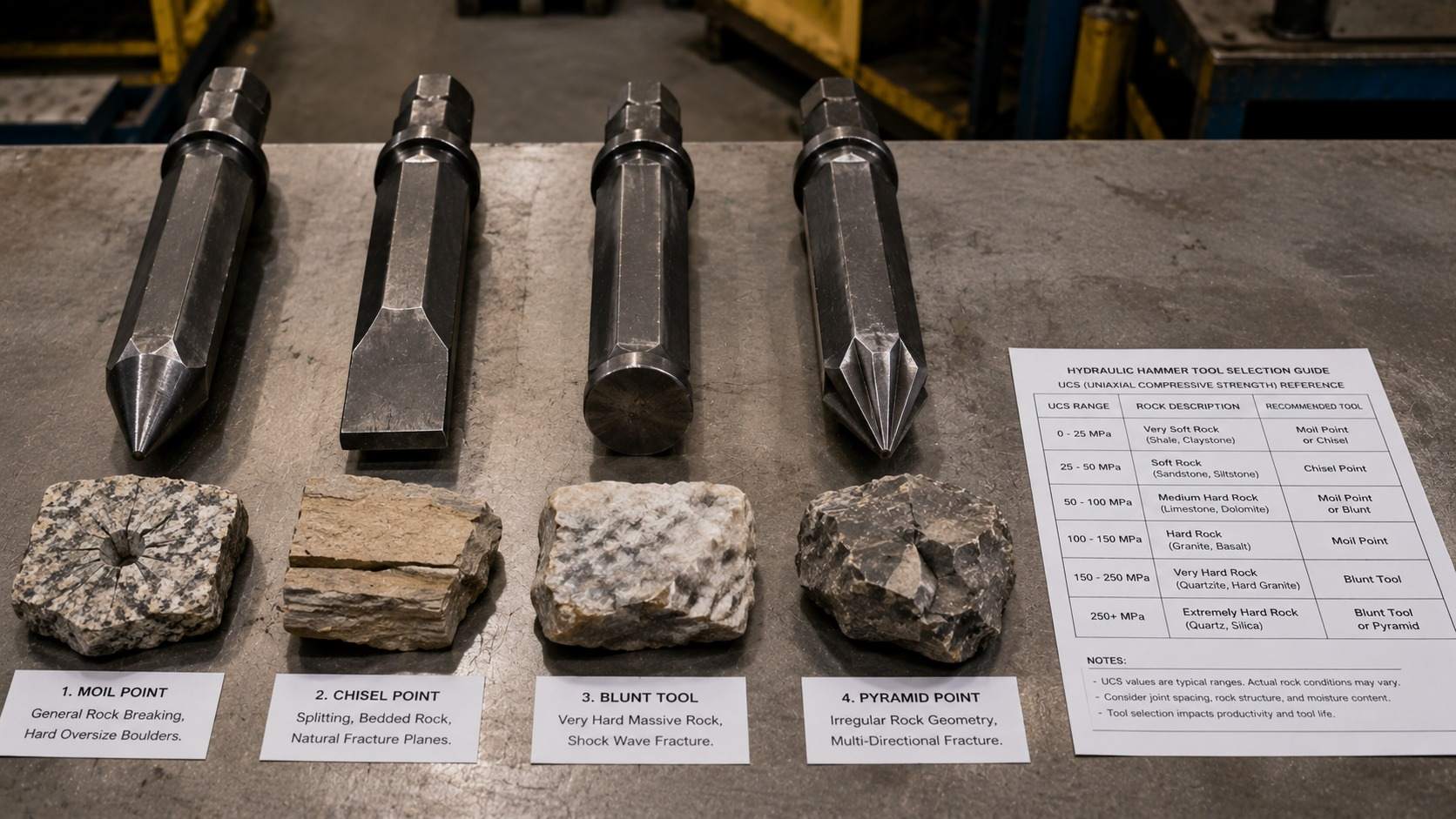

The tool—also called the moil point, chisel, or working tool—is the point of direct contact between the hammer and the rock. Selecting the correct tool shape is essential for efficient breaking and maximum tool service life.
The moil point is the most common general-purpose tool. Its conical shape concentrates impact energy at a single point, allowing it to penetrate the rock surface and initiate fractures from within.
Best for: General rock breaking, hard to medium rock, oversize boulder reduction in crusher feed zones.
The chisel point has a flat, blade-like tip designed to split rock along natural fracture planes. It provides better directional control and is particularly effective for rock with visible bedding planes or natural cleavage.
Best for: Splitting rock, concrete breaking, material with natural fracture planes.
The blunt tool has a flat, broad face that distributes impact energy over a larger surface area. Rather than penetrating the rock, it delivers a high-energy shock wave that fractures the material from within.
Best for: Very hard, massive rock where tool penetration is not effective.
The pyramid point combines elements of the moil and chisel, providing multi-directional fracture initiation. It is used in specialized applications where standard tool shapes are less effective due to rock geometry.
Tool Type | Shape | Best Application |
Moil Point | Conical | General rock breaking, hard oversize boulders |
Chisel Point | Flat blade | Splitting, bedded rock, concrete |
Blunt Tool | Flat face | Very hard massive rock |
Pyramid Point | Multi-edge | Irregular rock geometry |
The duty cycle of the application—how many hours per day the hammer operates—has a significant impact on hammer selection and long-term cost.
Standard hammer models are generally suitable. Maintenance intervals can be followed at the manufacturer's recommended schedule without modification.
Select a hammer with reinforced housing and heavy-duty seals. Pay close attention to lubrication intervals and ensure the HPU cooling system is adequate for extended operation.
Only heavy-duty hammer models with reinforced internal components should be used. An automatic lubrication system is strongly recommended to ensure consistent greasing of the tool bushing during continuous operation. The HPU must have adequate cooling capacity to maintain oil temperature within the acceptable range throughout the full operating period.

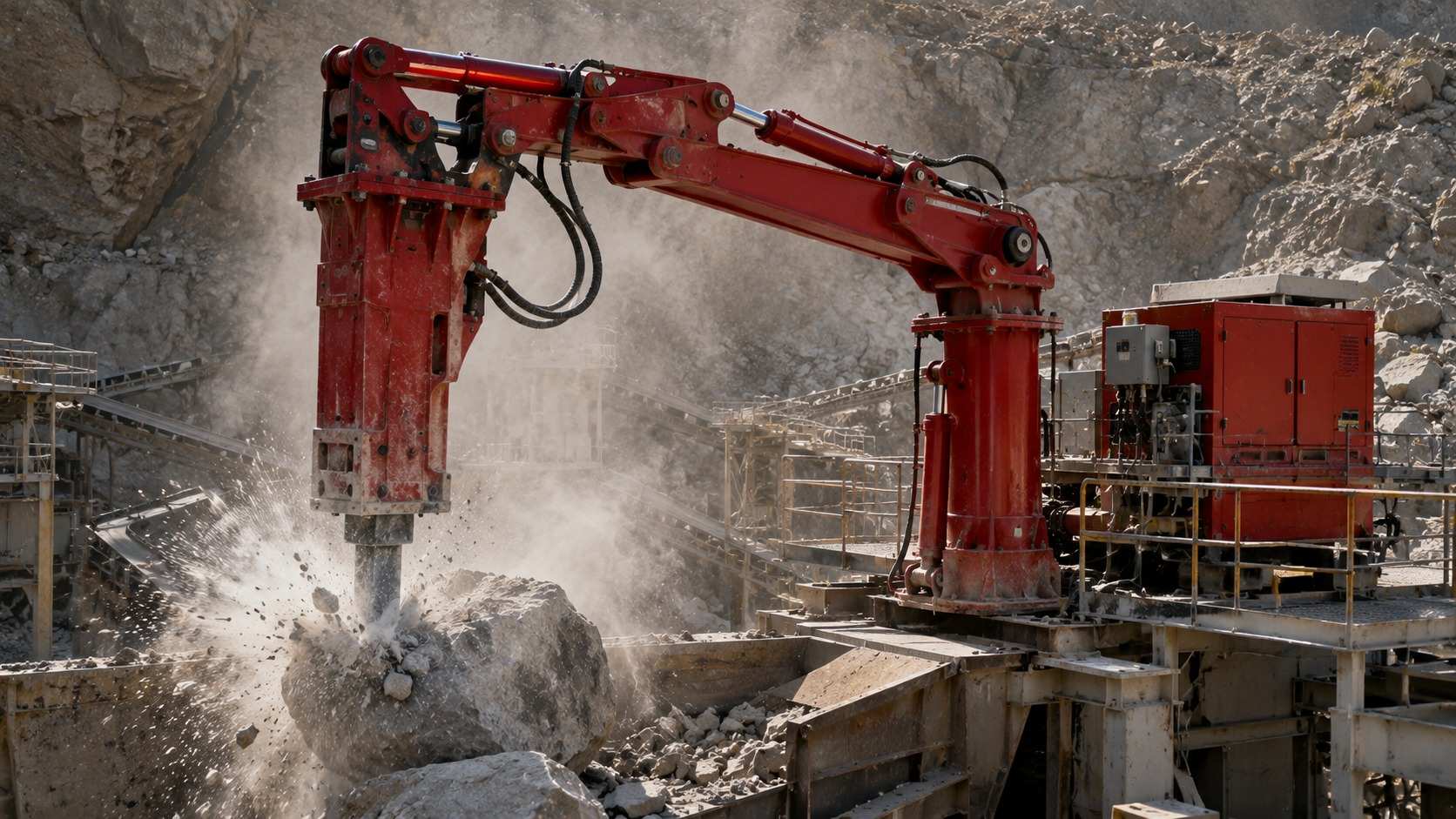

For stationary rock breaker boom systems in continuous mining or quarrying operations, heavy-duty hammer selection is almost always the correct choice. The additional upfront cost of a heavy-duty model is recovered quickly through reduced maintenance frequency and longer service intervals.
A hydraulic hammer is a high-precision tool operating under extreme conditions. Long-term performance depends as much on maintenance discipline as on initial selection.
The tool bushing requires regular greasing to prevent premature wear. For stationary boom systems operating for extended periods, an automatic lubrication system is highly recommended. Automatic lubrication ensures consistent grease delivery regardless of operator attention and significantly extends tool bushing service life.
If manual greasing is used, follow the manufacturer's schedule strictly—typically every 2 to 4 hours of operation depending on the model and application.
Most hydraulic hammers use a nitrogen gas charge to store and release energy during each blow cycle. The nitrogen pressure must be maintained within the manufacturer's specified range. Low nitrogen pressure is one of the most common causes of reduced hammer performance and is often misdiagnosed as a hydraulic problem.
Check nitrogen pressure at every scheduled maintenance interval and recharge as required.
High-quality seals are essential to prevent internal oil leaks and maintain consistent performance. When selecting a hammer, confirm that genuine seal kits and wear parts are readily available from the manufacturer or supplier.
A hammer that cannot be serviced quickly when seals fail will cause extended downtime. Always maintain a set of critical spare seals and wear parts on site.
For information on spare parts availability and after-sales support, see our guide on how to choose a reliable rock breaker boom manufacturer in China.
A hammer that is too heavy for the boom will cause excessive stress on pins, bushings, and cylinders, leading to structural fatigue and premature failure. Bigger is not better—matched is better. Always select a hammer within the boom's rated tool weight capacity.
Selecting a standard-duty hammer for a heavy-duty application is one of the most common and costly mistakes in rock breaker boom installations. If the system will run 6 or more hours per day, a heavy-duty model is not optional—it is required.
Stationary systems often run for extended periods without interruption. Without adequate oil cooling, hydraulic oil temperature rises, seal performance degrades, and internal component wear accelerates. Ensure your HPU has sufficient cooling capacity for your actual operating hours.
Selecting a hammer without reviewing the crusher layout and boom reach can result in a system where the hammer cannot be positioned effectively within the crusher feed zone. Always confirm the working envelope before finalizing hammer and boom selection.
A low-cost hammer with poor seal quality, limited spare parts availability, and no technical support will cost far more over its operating life than a properly specified, well-supported model. Total cost of ownership—not purchase price—is the correct basis for comparison.
To receive an accurate hammer recommendation for your application, provide your supplier with the following information:
Crusher model and type (jaw, gyratory, cone, impact)
Rock type and estimated UCS (compressive strength in MPa)
Average size of oversize rock (mm or inches)
Available hydraulic flow and pressure at the boom mounting point
Operating hours per day (duty cycle)
Boom model (if already selected or installed)
Crusher layout drawing (if available)
With this information, an experienced manufacturer can recommend the correct hammer model, tool type, and HPU specification for your specific application.
A: No. The hammer must be within the boom's rated tool weight capacity and must match the hydraulic flow and pressure available from your HPU. Always consult the manufacturer before changing hammer models on an existing boom.
A: The most common causes are low nitrogen gas pressure, worn tool bushing, insufficient hydraulic flow, or degraded seals. Check nitrogen pressure first—it is the most frequently overlooked maintenance item and one of the most common causes of performance loss.
A: For stationary boom systems, an automatic lubrication system is strongly recommended. If greasing manually, follow the manufacturer's schedule—typically every 2 to 4 hours of operation. Under-greasing is the leading cause of premature tool bushing wear.
A: Over-supply of hydraulic flow causes excessive internal stress, elevated oil temperature, potential cavitation, and accelerated seal wear. It can significantly shorten hammer service life. Always match the hammer's rated flow requirement to your HPU's output.
A: Not necessarily. The correct parameter is impact energy per blow, not hammer weight alone. A well-designed medium-weight hammer with high impact energy can outperform a heavier but less efficient model. Always compare impact energy specifications, not just physical size or weight.
A: As a general rule, use a moil point for most rock breaking applications. Switch to a blunt tool when the rock is extremely hard and massive and the moil point is not penetrating effectively—instead, the blunt tool delivers a shock wave that fractures the rock from within.
A: YZH manufactures both hydraulic hammers and pedestal rock breaker boom systems as matched, integrated systems. Contact us with your application details and we will recommend the correct combination for your crusher.
