Aggregate quarrying is a volume business. The economics are straightforward: the more tonnes you crush and screen per operating hour, the lower your cost per tonne and the higher your margin. Every hour the primary crusher sits idle waiting for a blockage to be cleared is an hour of production that cannot be recovered.
For most aggregate quarries, the primary crusher is the single biggest source of unplanned downtime. Oversize rock, bridging events, and blockages at the crusher feed are daily occurrences in any quarry processing blasted rock. How quickly and safely those events are resolved determines a significant portion of the quarry's annual production output.
A pedestal rock breaker boom system installed at the primary crusher feed point is the most effective tool available for managing this challenge. This article explains how rock breaker boom systems are applied in aggregate quarry operations, what to look for when selecting a system, and how to calculate the return on investment for your specific operation.
In any drill-and-blast quarry operation, blast fragmentation is never perfectly uniform. Despite careful blast design, every round produces some proportion of oversize material — rock that exceeds the primary crusher's maximum feed size. The frequency and volume of oversize material depends on:
Rock type and structure: Massive, jointed, or bedded rock behaves differently under blasting. Granite and basalt tend to produce more oversize than well-jointed limestone.
Blast design quality: Poorly designed or executed blasts produce more oversize. Even well-designed blasts produce some.
Feed control: The absence of a grizzly screen or scalping screen upstream of the crusher allows oversize material to reach the feed opening unchecked.
Crusher feed opening size: A smaller feed opening relative to the blasted rock size increases the frequency of blockage events.
No quarry can eliminate oversize rock entirely. The question is always how to manage it efficiently when it occurs.
Without a rock breaker boom, the response to a crusher blockage in an aggregate quarry typically involves:
Stopping the crusher and feed conveyor
Waiting for the area to be declared safe
A worker entering the crusher area with a handheld breaker or bar
Breaking or dislodging the oversize material manually
Restarting the crusher and resuming feed
In a typical aggregate quarry, this process takes 30 to 60 minutes per event. With two to four blockage events per shift, a quarry operating two shifts per day can lose 2 to 4 hours of production daily — 500 to 1,000 hours per year — to blockage clearing alone.
At a typical aggregate quarry throughput of 300 to 500 tonnes per hour, this represents 150,000 to 500,000 tonnes of lost annual production. At a selling price of USD 8 to 15 per tonne, the revenue impact is USD 1.2 million to USD 7.5 million per year.
These numbers make the business case for a rock breaker boom system self-evident in most aggregate quarry contexts.

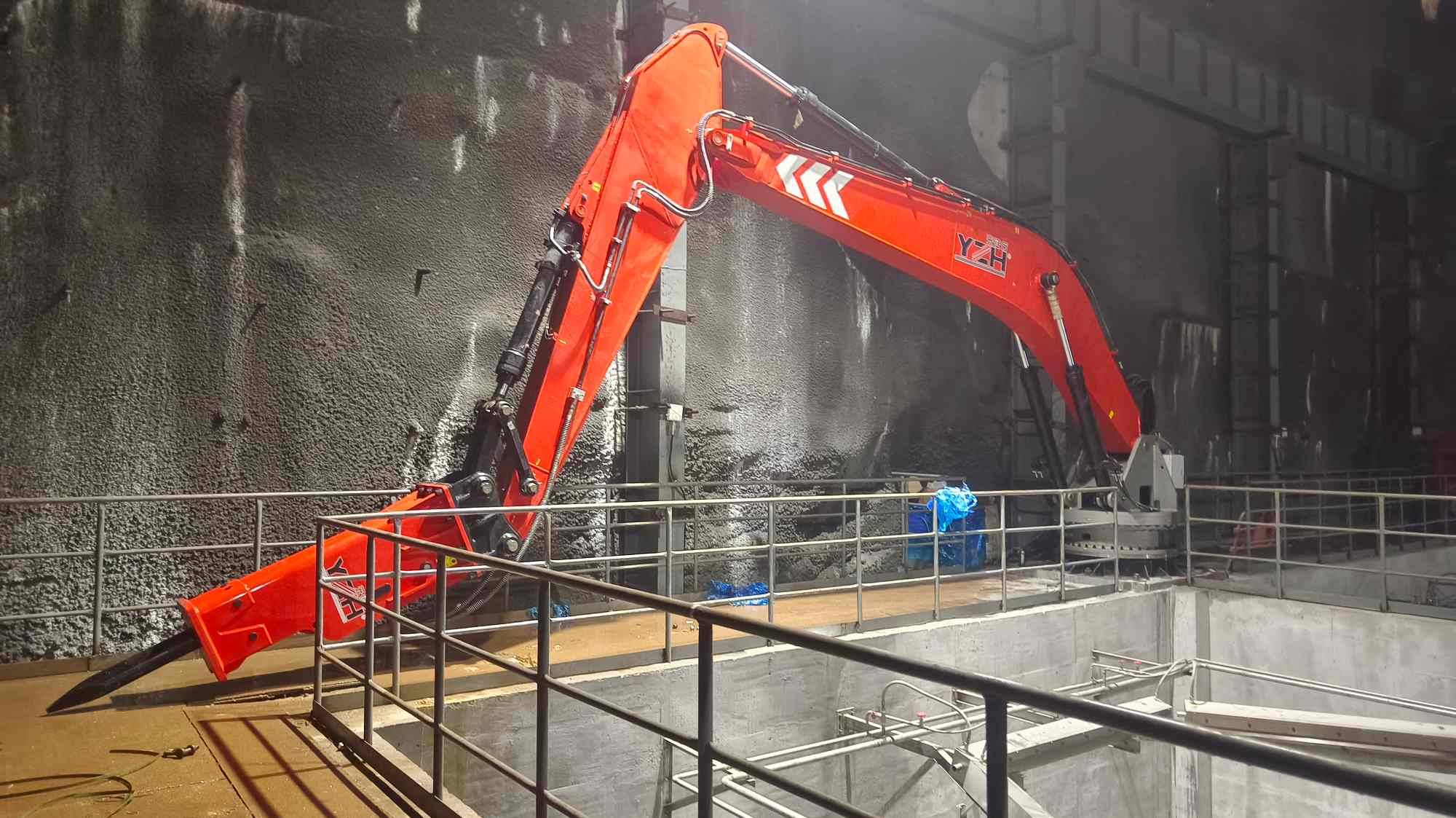

A pedestal rock breaker boom system in an aggregate quarry is installed adjacent to the primary crusher — typically a jaw crusher, though cone crushers and impact crushers are also common in aggregate applications. The boom is positioned to provide full coverage of the crusher feed opening.
When an oversize boulder arrives at the feed opening and creates a blockage or bridging condition, the crusher operator activates the boom from the control panel or wireless remote. The boom positions the hydraulic hammer over the oversize material, and the hammer breaks it into pieces small enough to pass through the crusher feed opening. The entire operation takes 5 to 15 minutes in most cases, compared to 30 to 60 minutes for manual clearing.
In many aggregate quarry installations, the boom operates while the crusher continues to run. The hammer breaks oversize material at the feed point before it fully blocks the crusher, maintaining continuous feed flow. This "break on the run" capability is particularly valuable in high-throughput aggregate operations where any interruption to feed flow has an immediate impact on production rate.
Aggregate quarries process a wide range of rock types, and the rock type has a significant influence on the specification of the rock breaker boom system — particularly the hydraulic hammer selection.
Limestone is the most common aggregate rock type globally. It is generally softer than igneous rocks, with a typical Uniaxial Compressive Strength (UCS) of 30 to 100 MPa. Limestone tends to fracture along bedding planes and joints, which means oversize pieces often break relatively easily once the hammer initiates a fracture.
For limestone quarry applications, a medium-energy hydraulic hammer with higher blow frequency is typically the most efficient choice. The softer rock breaks quickly, and a higher blow rate clears blockages faster than a slow, high-energy hammer.
Granite is a hard, massive igneous rock with a typical UCS of 150 to 250 MPa. It produces larger, more irregular oversize pieces and requires significantly more impact energy to fracture than limestone. Granite quarries require a higher-energy hydraulic hammer with a robust moil point tool.
Granite is also more abrasive than limestone, which means tool wear rates are higher. Factor tool replacement frequency into the operating cost calculation when specifying a system for a granite quarry.
Basalt is a fine-grained volcanic rock with a typical UCS of 100 to 200 MPa. It is harder than limestone but generally less massive than granite, often exhibiting columnar jointing that influences how oversize pieces fracture. A medium to high energy hammer is appropriate for most basalt quarry applications.
Sandstone and other softer sedimentary rocks typically have a UCS of 20 to 80 MPa and fracture easily under hammer impact. In these applications, the primary concern is often not breaking energy but clearing speed — a higher-frequency hammer that clears blockages quickly maximises production time.
For a detailed guide to matching hydraulic hammer energy and frequency to your specific rock type, see our article on how to choose the right hydraulic hammer for your breaker boom system.
The jaw crusher is the most common primary crusher in aggregate quarrying. Its rectangular feed opening is particularly susceptible to bridging — large, flat, or irregular pieces wedging across the opening and preventing material flow.
A rock breaker boom for a jaw crusher must provide full coverage of the feed opening from above, with sufficient reach to position the hammer at any point within the feed zone. The boom must also be able to work within the headroom available above the crusher, which varies significantly between different quarry plant designs.
For detailed guidance on sizing a boom system for a jaw crusher, see our article on what size rock breaker boom do I need for a jaw crusher.
Some aggregate quarries use cone crushers or horizontal shaft impact crushers as the primary crushing stage. These crusher types have different feed opening geometries and different oversize rock behaviour compared to jaw crushers.
Cone crushers are generally less susceptible to bridging than jaw crushers, but large oversize pieces can still cause blockages at the feed point. Impact crushers are more sensitive to very large oversize pieces, which can cause mechanical damage if they enter the crushing chamber at full size.
In both cases, a rock breaker boom positioned above the feed point provides the same blockage clearing capability as in a jaw crusher application. Confirm the required working envelope with your crusher manufacturer before specifying the boom.
The boom must provide full coverage of the crusher feed opening from the available pedestal location. Confirm the required horizontal reach, vertical reach, and slewing angle before specifying the boom model.
In aggregate quarry plants, the primary crusher is often installed in a pit or on a raised platform, with limited space around it. Measure the available pedestal location carefully and provide this information to the boom manufacturer.
Match the hammer energy to your rock type and the typical size of oversize pieces at your quarry. As a general guide:
Rock Type | Typical UCS | Recommended Hammer Energy Class |
Soft limestone, chalk | 30–80 MPa | 500–1,500 J |
Medium limestone, sandstone | 80–120 MPa | 1,500–3,000 J |
Hard limestone, basalt | 120–180 MPa | 3,000–5,000 J |
Granite, hard basalt | 180–250 MPa | 5,000–8,000 J |
Very hard granite, quartzite | 250 MPa+ | 8,000 J+ |
These are indicative ranges. The correct specification depends on your specific rock characteristics, oversize piece size, and crusher feed opening dimensions.
Aggregate quarries typically operate one or two shifts per day, with the primary crusher running continuously during production hours. Specify a heavy-duty hammer model if the system will operate more than 4 hours per day. An automatic lubrication system is strongly recommended for any aggregate quarry application to ensure consistent tool bushing greasing during extended operation.
A wireless remote control system is recommended for aggregate quarry applications. It gives the operator the flexibility to position themselves at the best vantage point to observe the blockage, which is particularly valuable when oversize pieces are lodged in awkward positions within the crusher feed opening.
Aggregate quarries are outdoor operations exposed to dust, rain, and temperature extremes. All electrical components — control panels, junction boxes, HPU motor — must be rated for outdoor installation with appropriate IP ratings. Specify stainless steel or hot-dip galvanised hardware for components exposed to weather.
The pedestal must be located to provide the required working envelope coverage while keeping the boom clear of the crusher feed hopper, conveyor structures, and any other plant infrastructure. In many aggregate quarry installations, the pedestal is located on the crusher platform or on a dedicated foundation adjacent to the crusher.
Provide the boom manufacturer with a dimensioned plan drawing of the crusher area, including the crusher position, feed hopper, conveyor structures, and any overhead obstructions. A manufacturer who does not request this information before proposing a system is not taking the installation seriously.
The pedestal foundation must resist the dynamic loads generated during hammer operation. In aggregate quarry applications, the foundation is typically a reinforced concrete pad anchored to the quarry floor or crusher platform. Engage a structural engineer to design the foundation if the ground conditions are uncertain or if the crusher platform structure needs to be assessed for the additional loading.
The hydraulic power unit should be located in a protected position — away from direct blast exposure, falling rock, and excessive dust accumulation. A dedicated HPU room or enclosure adjacent to the crusher platform is the preferred arrangement. Ensure adequate ventilation for the HPU enclosure and confirm that the electrical supply is adequate for the HPU motor rating.
The return on investment calculation for a rock breaker boom system in an aggregate quarry is straightforward. Use the following framework:
Step 1: Quantify current blockage downtime
Average number of blockage events per shift: ___
Average time to clear each blockage manually (minutes): ___
Number of production shifts per day: ___
Number of production days per year: ___
Annual blockage downtime (hours) = events/shift × clearing time × shifts/day × days/year ÷ 60
Step 2: Estimate recovered production time
Average clearing time with boom system (typically 5–15 minutes): ___
Recovered time per event (minutes) = manual clearing time − boom clearing time
Annual recovered production hours = recovered time/event × events/shift × shifts/day × days/year ÷ 60
Step 3: Calculate recovered production value
Crusher throughput (tonnes/hour): ___
Aggregate selling price (USD/tonne): ___
Annual recovered production value = recovered hours × throughput × selling price
Step 4: Compare to system cost
Total system cost (supply + installation): ___
Simple payback period = system cost ÷ annual recovered production value
In most aggregate quarry operations running two shifts per day with two to four blockage events per shift, this calculation produces a payback period of 6 to 18 months. For operations with higher blockage frequency or higher aggregate selling prices, payback periods of 3 to 6 months are common.
For a detailed discussion of system cost components and what drives pricing, see our article on how much does a pedestal rock breaker boom system cost.
Safety is a critical consideration in aggregate quarry operations, where regulatory requirements are increasingly stringent and the consequences of a serious incident extend well beyond the immediate human cost.
A rock breaker boom system eliminates the need for workers to enter the crusher feed zone for routine clearing operations. In an aggregate quarry, this means:
No confined space entry permits required for routine clearing
No workers exposed to unstable rock masses at the crusher feed point
No risk of struck-by incidents from handheld breaking tools or ejected rock fragments
Reduced dust and noise exposure for the clearing operator
Full compliance with remote operation requirements where mandated by regulation
For a comprehensive analysis of the safety benefits of stationary rock breaker boom systems, see our article on how a stationary rock breaker boom system improves crusher safety and productivity.
Some aggregate quarries use a mobile rockbreaker — a hydraulic hammer mounted on an excavator — as an alternative to a pedestal boom system. While a mobile unit offers flexibility to work at multiple locations across the site, it has significant disadvantages in the primary crusher application:
Mobilisation time: A mobile unit takes 5 to 20 minutes to reach the crusher and position for breaking. A pedestal boom responds in seconds.
Availability: A mobile unit that is working elsewhere on the site is not available at the crusher when a blockage occurs.
Operating cost: A diesel excavator consumes significant fuel and requires a dedicated operator. A pedestal boom runs on an electric HPU and can be operated by the crusher operator.
For a full comparison of both approaches, see our article on pedestal rock breaker boom system vs. mobile rockbreaker: which is right for your operation.
Aggregate quarries are dusty, outdoor environments that place specific demands on rock breaker boom maintenance. Key considerations include:
Dust ingress: Aggregate dust is abrasive and accumulates rapidly on exposed mechanical components. Regular cleaning of boom pins, bushings, and cylinder rods is essential.
Weather exposure: Rain, frost, and UV exposure affect hydraulic hoses, electrical cables, and painted surfaces. Specify weather-resistant materials and coatings at the time of purchase.
Blast vibration: Quarry blasting generates ground vibration that can loosen fasteners and accelerate fatigue in structural welds. Include a fastener torque check in the post-blast inspection routine.
Seasonal maintenance: In cold climates, hydraulic oil viscosity changes with temperature. Confirm that the specified oil grade is suitable for the full range of operating temperatures at your site.
For a complete maintenance schedule and guidance on all four maintenance zones, see our article on how to maintain a pedestal rock breaker boom system.
A: The correct boom size depends on the jaw crusher model, feed opening dimensions, and the available pedestal location. As a general guide, a jaw crusher with a feed opening of 900 × 650 mm to 1,200 × 900 mm typically requires a boom with a working reach of 3.5 to 5.5 metres and a hammer in the 1,500 to 4,000 J energy class. Provide your crusher model and site layout to our engineering team for a specific recommendation.
A: Yes, in most aggregate quarry installations. The boom breaks oversize material at the feed point while the crusher continues to operate. This "break on the run" capability is one of the most significant productivity advantages of a pedestal boom system in a high-throughput quarry application.
A: Tool life in limestone is typically 300 to 800 operating hours depending on the limestone hardness and abrasiveness. Inspect the tool daily and replace when the tip is worn beyond the manufacturer's wear limit. Maintaining a spare tool on site ensures that replacement can be completed without production delay.
A: A properly designed and installed pedestal rock breaker boom system is not damaged by normal quarry blast vibration. However, blast vibration can loosen fasteners over time. Include a fastener torque check in your post-blast inspection routine, and confirm that the pedestal foundation design accounts for the blast vibration environment at your site.
A: Yes, strongly recommended. Designing the rock breaker boom into the initial plant layout is significantly more cost-effective than retrofitting it later. It allows the pedestal foundation, HPU room, electrical supply, and boom working envelope to be optimised as part of the overall plant design, avoiding the compromises that are often necessary in a retrofit installation.
A: The key evaluation criteria are build quality, engineering capability, spare parts availability, and after-sales support — not country of origin. A well-specified system from a reputable Chinese manufacturer with CE certification, proven export experience, and a documented quality management system will perform equivalently to a European-manufactured system at a significantly lower capital cost. For a structured framework for evaluating manufacturers, see our article on how to choose a reliable rock breaker boom manufacturer in China.
A: Standard models for common jaw crusher sizes are typically available with a lead time of 8 to 12 weeks from order confirmation. Custom-designed systems for non-standard crusher layouts may require 12 to 16 weeks. Contact us with your crusher details and required delivery date and we will confirm availability.
For any aggregate quarry operating a primary crusher on a continuous basis, a pedestal rock breaker boom system is not optional equipment — it is a production-critical investment that pays for itself within months and continues to deliver value for 15 to 20 years.
The combination of immediate blockage response, remote safe operation, optimised hammer performance, and low operating cost makes the pedestal boom system the industry-standard solution for aggregate quarry primary crusher duty. The only question is not whether to install one, but which system is right for your specific crusher, rock type, and site layout.
To make that determination, start with the right information: your crusher model and feed opening dimensions, your rock type and typical oversize piece size, your available pedestal location, and your production targets. With these inputs, an experienced manufacturer can recommend the correct system and provide a detailed quotation.
For a complete guide to the selection process, see our article on how to choose the right pedestal rock breaker boom system for your crusher.
At YZH, we manufacture pedestal rock breaker boom systems and hydraulic hammers for aggregate quarry applications worldwide — from small limestone operations to large granite quarries processing thousands of tonnes per day.
Send us your crusher model, rock type, and site layout, and our engineering team will recommend the right system for your quarry.
