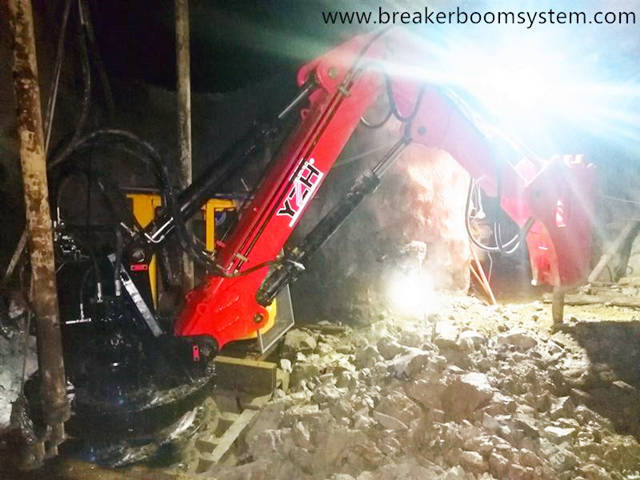

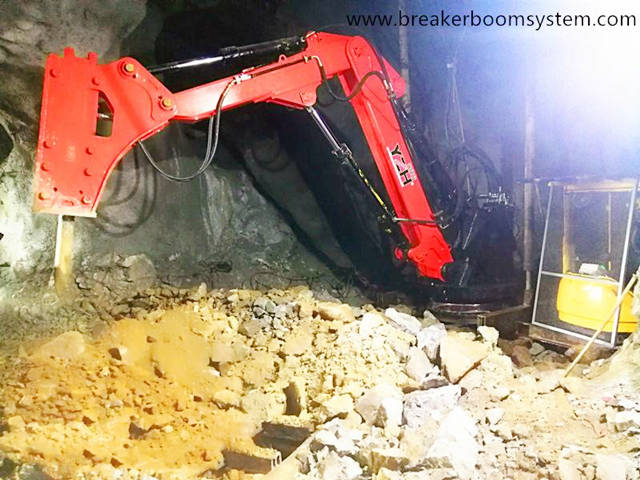

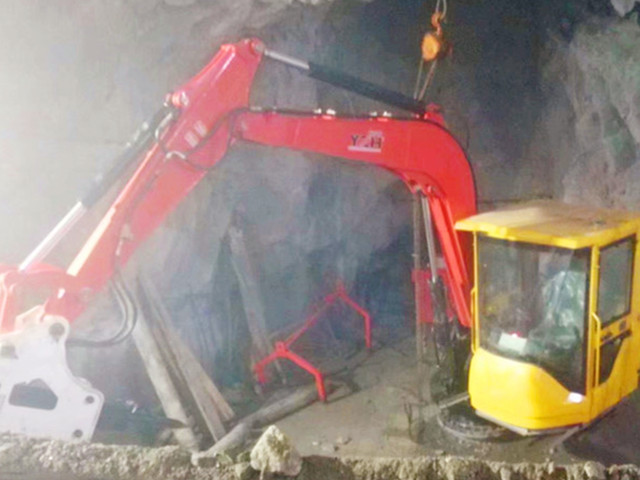

Underground crusher chambers represent one of the most demanding environments in which a pedestal rock breaker boom system can be installed. Space is constrained. Ventilation is limited. Access for maintenance is difficult. The consequences of equipment failure are more severe than on surface, because getting replacement parts and service personnel underground takes time that a surface operation simply does not have to lose.
At the same time, the need for a rock breaker boom system in an underground crusher chamber is, if anything, more acute than on surface. Manual clearing of oversize rock in a confined underground chamber is one of the most hazardous tasks in underground mining. The combination of unstable rock, restricted escape routes, poor visibility, and the physical demands of working in a confined space creates a risk profile that no responsible mine operator should accept when a mechanical alternative exists.
This guide covers everything you need to know about specifying, installing, and operating a pedestal rock breaker boom system in an underground crusher chamber—from the unique constraints of the underground environment to the specific equipment features that make the difference between a system that works reliably for 20 years and one that becomes a maintenance burden.
Before addressing equipment selection, it is worth understanding exactly what makes the underground environment different from a surface crushing installation—and why those differences matter for rock breaker boom specification.
Underground crusher chambers are excavated spaces. Every cubic metre of rock removed costs money, and chamber dimensions are kept as small as the equipment will allow. This means there is typically very limited clearance above and around the crusher, and the available footprint for a boom pedestal may be significantly smaller than on surface.
A boom system designed for surface installation—with a tall pedestal, wide slewing radius, and generous working envelope—may simply not fit in an underground chamber. The boom must be compact enough to operate within the chamber geometry while still providing full coverage of the crusher feed opening.
Underground crusher chambers are ventilated spaces, but ventilation capacity is finite and carefully managed. Diesel-powered equipment is generally not permitted in crusher chambers due to exhaust fume accumulation. All equipment in the chamber—including the hydraulic power unit (HPU) for the rock breaker boom—must be electrically powered.
Dust generated by rock breaking must also be managed within the ventilation system. In some chambers, water mist suppression systems are installed at the crusher feed point to control dust during boom operation.
Underground chambers are accessed via declines, shafts, or adits. Getting large components underground requires careful planning—components must fit within the conveyance dimensions (cage, skip, or decline vehicle) and may need to be disassembled for transport and reassembled underground.
This constraint affects both the initial installation and every subsequent maintenance activity. Spare parts, tooling, and service personnel all require planned access. A boom system that requires frequent component replacement or complex maintenance procedures will create ongoing logistical challenges in an underground environment.
In the event of a fire, equipment failure, or personnel injury underground, emergency response is more complex and slower than on surface. This places a premium on equipment reliability and on design features that minimize the risk of uncontrolled failure modes—such as hydraulic hose rupture, electrical short circuit, or structural collapse.
Underground chambers amplify noise and vibration. The acoustic environment during hydraulic hammer operation in a confined underground chamber is significantly more intense than on surface. Operator protection—through remote control operation and appropriate PPE—is essential.
Given the additional complexity of underground installation, some mine operators question whether the investment is justified. The answer, in almost every case, is yes—and the justification is stronger underground than on surface.
On surface, a worker clearing a blockage manually can retreat quickly if conditions change. Underground, retreat routes are limited, visibility is poor, and the consequences of a rock fall or equipment movement are more severe. The risk profile of manual clearing in an underground crusher chamber is substantially higher than the equivalent surface operation.
A rock breaker boom eliminates the need for personnel to enter the crusher feed zone for routine clearing operations. This is not a marginal safety improvement—it removes workers from one of the highest-risk tasks in underground mining entirely.
Underground crushing circuits are typically the primary bottleneck in the mine's production system. When the underground crusher stops, the entire mine's ore flow stops. The cost of an hour's downtime underground is generally higher than the equivalent surface stoppage, because the impact propagates through the entire production chain—from stope to surface.
A rock breaker boom that reduces average blockage clearing time from 60 minutes to 10 minutes delivers the same productivity benefit underground as on surface—but the financial value of that recovered time is typically greater.
Some underground operations attempt to manage oversize rock by controlling blast fragmentation more tightly. This is a valid complementary measure, but it is not a substitute for a rock breaker boom. Blast fragmentation control reduces the frequency of oversize events but cannot eliminate them. When an oversize event occurs, the clearing method still determines the safety and time cost of the response.
Specifying a rock breaker boom for an underground crusher chamber requires careful attention to several factors that are less critical in surface installations.
The boom must be designed to operate within the chamber envelope. Key geometric parameters to confirm before specification:
Maximum boom height in transport/stowed position: Must clear the chamber roof when the boom is retracted
Slewing radius: Must not exceed the available clearance around the crusher
Working reach: Must provide full coverage of the crusher feed opening from the available pedestal location
Pedestal footprint: Must fit within the available floor space adjacent to the crusher
Provide your manufacturer with a dimensioned drawing of the chamber, including crusher position, roof height, wall clearances, and any obstructions such as ore passes, conveyors, or service infrastructure. A manufacturer who does not request this information before proposing a system is not taking the underground application seriously.
For guidance on working envelope requirements for specific crusher types, see our articles on what size rock breaker boom do I need for a jaw crusher and how to select a breaker boom for a gyratory crusher.
As noted above, diesel-powered HPUs are not suitable for underground crusher chambers. The HPU must be electrically powered and sized to match the hydraulic flow and pressure requirements of the selected hammer.
Key HPU specification points for underground applications:
Electric motor voltage: Must match the underground electrical supply (typically 380V, 525V, or 1000V depending on the mine)
Motor enclosure rating: Must be appropriate for the underground environment—typically IP55 or higher
Cooling: Air-cooled or water-cooled depending on chamber ventilation capacity
Noise level: Consider acoustic enclosure for the HPU if chamber noise levels are a concern
Physical dimensions: Must fit within the available plant room or service bay adjacent to the crusher chamber
Every component of the boom system must be transportable underground via the available access route. Confirm the following dimensions with your mine's shaft or decline team before finalizing the design:
Maximum component length, width, and height for cage or decline transport
Maximum single-lift weight for underground cranes or hoists
Any restrictions on hazardous materials transport (hydraulic oil, nitrogen gas)
A well-designed underground boom system will be modular, with all major components sized for underground transport and assembly. Confirm this with your manufacturer before purchase.
Wireless remote control is strongly recommended for underground crusher chamber applications. In a confined chamber, the operator should be positioned as far from the crusher feed zone as the chamber geometry allows. A wireless remote gives the operator the flexibility to find the safest available position with the best line of sight to the blockage.
Fixed panel control is acceptable as a secondary or backup control mode, but should not be the primary control method in an underground chamber where operator positioning flexibility is limited.
Hydraulic hose failures in underground environments are more consequential than on surface. A high-pressure hose rupture in a confined underground space creates a hydraulic oil mist that is both a fire hazard and a health hazard. Specify:
High-pressure hoses with steel wire braid or spiral reinforcement rated well above the system operating pressure
Fire-resistant hydraulic fluid where required by the mine's fire risk assessment
Hose routing that minimizes contact with sharp edges and moving structural members
Hose restraints at regular intervals to limit whip in the event of a fitting failure
Underground crusher chambers are wet, dusty environments. All electrical components—control panels, junction boxes, motor terminal boxes—must be rated to at least IP55 for dust and water ingress protection. Confirm the IP rating of every electrical component before installation.
Installing a rock breaker boom system in an underground crusher chamber requires more planning than a surface installation. Key considerations include:
The pedestal base must be anchored to the chamber floor with a foundation capable of resisting the dynamic loads generated during hammer operation. Underground chamber floors are typically concrete-lined rock, and the foundation design must account for the rock mass quality and any existing services below the floor.
Engage a structural engineer to design the foundation if the chamber floor conditions are uncertain. A pedestal that moves under load will cause rapid wear of boom pins and bushings and may eventually fail.
Plan the assembly sequence carefully before components arrive underground. In a confined chamber with limited crane capacity, the order in which components are assembled and lifted into position matters. A poorly planned assembly sequence can result in components that cannot be moved once others are in place.
Commission the system with the crusher running at reduced feed rate initially, to allow the operator to develop familiarity with the boom's working envelope and the hammer's response before full production loading begins. Confirm that all boom movements are within the chamber clearances before full-speed operation.
Day-to-day operation of a rock breaker boom in an underground chamber follows the same principles as surface operation, but with several important additional considerations.
In a surface installation, the operator typically has a wide choice of safe positions from which to observe the crusher feed zone. Underground, the available positions may be more limited. Before commissioning, identify the designated operator positions for each type of blockage scenario and confirm that these positions provide adequate line of sight and are outside the rock fall exclusion zone.
Establish clear communication protocols between the boom operator and other personnel in the crusher chamber area. During boom operation, no other personnel should be within the exclusion zone. A formal clearance procedure—similar to a lockout/tagout protocol—should be established and enforced.
During extended hammer operation, dust generation in the chamber will increase. Monitor ventilation effectiveness and activate dust suppression systems as required. If dust levels approach regulatory limits, pause hammer operation until ventilation has cleared the chamber.
Establish and practice emergency procedures specific to boom operation in the underground chamber:
What to do if the boom loses hydraulic pressure during operation
What to do if a hose fails
How to safely stow the boom in an emergency
Evacuation routes from the chamber during boom operation
All of the maintenance requirements described in our guide on how to maintain a pedestal rock breaker boom system apply in an underground installation—but the logistics of maintenance are more complex.
Getting spare parts underground takes time. A seal kit that can be delivered to a surface installation within hours may take a full shift to reach an underground crusher chamber. Maintain a more comprehensive on-site spare parts inventory underground than you would on surface, and establish a replenishment procedure that keeps critical spares stocked at all times.
Design the boom installation to allow maintenance access to all service points without requiring the boom to be removed from the chamber. Confirm that there is adequate clearance to remove and reinstall the hydraulic hammer for quarterly service, and that the HPU can be accessed for filter changes and oil sampling without moving other equipment.
Used hydraulic oil must be removed from the underground environment in accordance with the mine's environmental management procedures. Plan for oil storage and removal as part of the maintenance program. Spill containment bunding around the HPU is typically required by underground environmental regulations.
Use this checklist when preparing a specification or evaluating supplier proposals:
Chamber dimensioned drawing provided to manufacturer (plan and elevation)
Crusher model, feed opening dimensions, and coverage requirement confirmed
Rock type and UCS confirmed for hammer sizing
Boom geometry confirmed to fit within chamber envelope (height, slewing radius, reach)
All components confirmed to fit within underground transport dimensions
Electric HPU specified with correct voltage and motor enclosure rating
Fire-resistant hydraulic fluid specified if required by fire risk assessment
Wireless remote control included in specification
All electrical components rated IP55 or higher
High-pressure hoses with fire-resistant specification included
Foundation design reviewed by structural engineer
Spare parts package for underground stocking confirmed with manufacturer
Maintenance access confirmed for all service points
Operator training program confirmed with manufacturer
A: In some cases, yes—if the chamber dimensions are large enough to accommodate a standard boom geometry and the HPU can be converted to electric drive. However, most underground crusher chambers require a purpose-designed compact boom with specific component sizing for underground transport. Always provide the manufacturer with chamber dimensions before accepting a proposal.
A: This depends on the boom model and the crusher feed height. As a general guide, most compact underground boom systems require a minimum clear height of 4.5 to 6 metres above the crusher feed level. Provide your chamber dimensions to the manufacturer for a specific assessment.
A: Yes. Routine hammer maintenance—seal replacement, nitrogen recharge, tool bushing replacement—can be performed underground by a trained technician with the correct tools. Quarterly full disassembly and inspection can also be performed underground if adequate workspace and lifting equipment are available. Some operations prefer to bring the hammer to surface for major service.
A: Most underground mines require fire-resistant hydraulic fluid (FRHF) in equipment operating in areas with fire risk. Confirm the requirement with your mine's safety management team. The HPU and hammer must be compatible with the specified fluid type—confirm this with the manufacturer before purchase.
A: Water mist dust suppression systems installed at the crusher feed point are the most effective solution. Some operations also use fogging systems in the chamber during boom operation. Confirm dust suppression requirements with your mine's ventilation and occupational hygiene team during the design phase.
A: Underground systems typically require more engineering design time than standard surface installations due to the custom geometry and component sizing requirements. Allow 12 to 16 weeks from order to delivery for a purpose-designed underground system. Factor in additional time for underground transport, assembly, and commissioning.
A: Provide the manufacturer with your chamber drawing, crusher model, rock type, available electrical supply voltage, and underground transport dimensions. With this information, an experienced manufacturer can prepare an accurate proposal. Contact the YZH engineering team with your project details to get started.
Underground crusher chambers are among the most challenging environments for rock breaker boom installation—but they are also among the environments where the safety and productivity benefits of a well-specified system are greatest. The combination of confined space, limited escape routes, and high downtime costs makes a reliable, purpose-designed rock breaker boom system not just a productivity tool but a fundamental safety requirement.
The key to a successful underground installation is thorough upfront engineering: providing the manufacturer with accurate chamber dimensions, confirming component transport constraints, specifying the correct electrical and hydraulic configuration, and planning the maintenance program before the system is ordered.
For a broader understanding of how a stationary rock breaker boom system improves crusher safety and productivity across all application types, see our article on how a stationary rock breaker boom system improves crusher safety and productivity.
For guidance on evaluating the total cost of a system and understanding what drives pricing, see our article on how much does a pedestal rock breaker boom system cost.
YZH has extensive experience designing and manufacturing pedestal rock breaker boom systems for underground crusher chamber applications. Our engineering team will work with your mine's layout and constraints to design a system that fits, performs, and can be maintained reliably throughout its service life.
Send us your chamber drawing, crusher details, and project requirements to get started.
