A pedestal rock breaker boom system is one of the hardest-working pieces of fixed plant equipment on any crushing site. It operates in a high-dust, high-vibration environment, cycles thousands of times per shift, and is expected to be available every time a blockage occurs—which may be multiple times per hour.
Like any precision mechanical system, a pedestal rock breaker boom system will only deliver consistent performance and a long service life if it is maintained correctly. Neglecting maintenance does not save time—it transfers that time into unplanned breakdowns, expensive component replacements, and production stoppages at the worst possible moments.
This guide provides a complete, practical maintenance framework for pedestal rock breaker boom systems, covering daily checks, scheduled servicing, hydraulic hammer care, structural inspection, and the most common maintenance mistakes to avoid.
Many operations treat the rock breaker boom as a passive piece of infrastructure—something that is always there and will keep working until it visibly fails. This is a costly misconception.
The hydraulic hammer at the end of the boom delivers thousands of high-energy impacts per hour. Each impact transmits vibration and shock loading through the boom structure, into the pins, bushings, cylinders, and welds. Over time, this cumulative loading causes wear, fatigue, and eventually failure—unless it is managed through a disciplined maintenance program.
The hydraulic system that powers the hammer operates under high pressure and elevated temperature. Contaminated oil, degraded seals, and incorrect nitrogen pressure are silent performance killers that reduce breaking efficiency long before they cause a visible failure.
The structural components of the boom—the boom arms, pedestal, and mounting base—are subject to dynamic loading that can initiate fatigue cracks at welds and stress concentration points. A crack that is caught early and repaired costs a fraction of what a structural failure costs in downtime and replacement parts.
A well-maintained boom system will deliver 15 to 20 years of reliable service. A neglected one may fail within 3 to 5 years. The difference is almost entirely maintenance.
A complete maintenance program for a pedestal rock breaker boom system covers four distinct zones:
The Hydraulic Hammer — the highest-wear component, requiring the most frequent attention
The Boom Structure — pins, bushings, cylinders, and structural members
The Hydraulic System — HPU, hoses, fittings, oil quality, and filtration
The Control System — remote control, sensors, and electrical components
Each zone has its own maintenance schedule and failure modes. The sections below address each in detail.
The hydraulic hammer is the component under the greatest stress in the entire system. It delivers direct impact energy to rock thousands of times per shift. Correct hammer maintenance is the single most important factor in system reliability.
The tool bushing is the wear interface between the hammer body and the working tool (moil point or chisel). It must be greased regularly to prevent metal-to-metal contact, which causes rapid wear and eventual tool seizure.

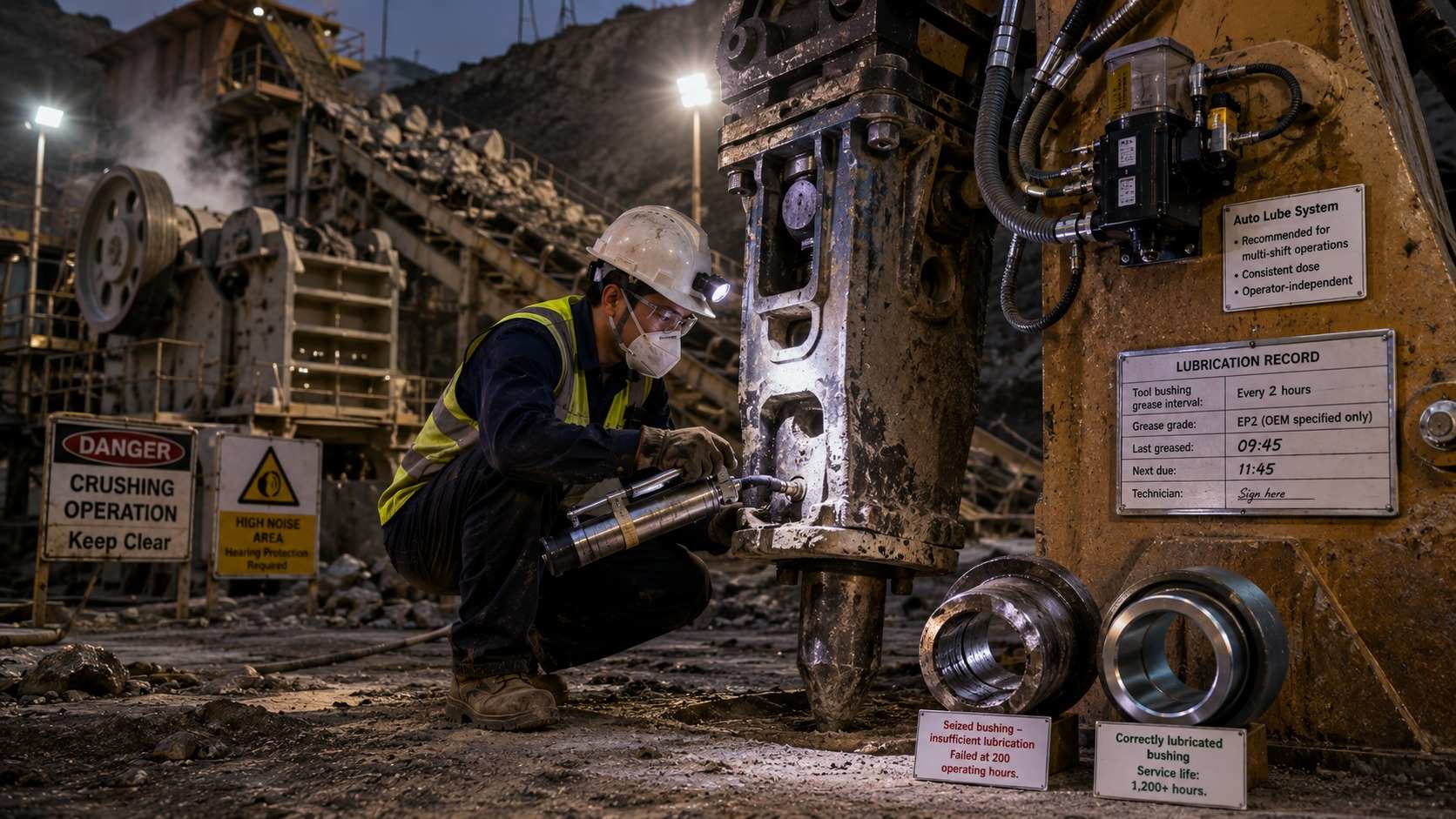

Manual greasing: Apply grease every 2 hours of operation, or as specified by the hammer manufacturer. Use only the grease grade recommended by the manufacturer—incorrect grease can cause bushing damage rather than preventing it.
Automatic lubrication system: For stationary boom systems operating multiple shifts per day, an automatic lubrication system is strongly recommended. It delivers consistent, correctly timed grease doses regardless of operator attention, and significantly extends tool bushing service life. If your system does not currently have automatic lubrication, it is worth retrofitting.
Before each shift, inspect the working tool (moil point, chisel, or blunt tool) for:
Excessive wear at the tip — replace when worn beyond the manufacturer's wear limit
Mushrooming at the top of the tool — a sign of incorrect nitrogen pressure or over-striking
Cracks or deformation — remove from service immediately
Correct seating in the tool bushing — the tool should move freely but without excessive play
A worn or damaged tool does not just break rock less efficiently—it transfers abnormal loads into the hammer body and boom structure, accelerating wear throughout the system.
Most hydraulic hammers use a nitrogen gas accumulator to store and release energy during each blow cycle. Correct nitrogen pressure is critical to hammer performance. Low nitrogen pressure is one of the most common—and most commonly overlooked—causes of reduced breaking performance.
Symptoms of low nitrogen pressure include:
Reduced impact energy and slower rock breaking
Increased blow frequency with reduced effect
Excessive recoil transmitted back into the boom
Check nitrogen pressure weekly using a calibrated gauge. Recharge to the manufacturer's specified pressure as required. Never use compressed air or oxygen as a substitute for nitrogen.
Hydraulic hammer seals prevent internal oil leakage and maintain the pressure differential required for correct operation. Seals degrade over time due to heat, pressure cycling, and contamination.
Signs of seal wear include:
Oil weeping from the hammer body or around the tool bushing
Reduced impact energy despite correct hydraulic supply and nitrogen pressure
Increased oil consumption in the HPU
Replace seals at the manufacturer's recommended interval, or immediately if leakage is observed. Always use genuine OEM seal kits—aftermarket seals of incorrect material or dimension will fail prematurely.
Maintain a complete seal kit on site at all times so that seal replacement can be completed without waiting for parts delivery.
At least once per quarter—or at the manufacturer's recommended service interval—the hammer should be fully disassembled, inspected, and reassembled by a qualified technician. This inspection should cover:
Piston condition and surface finish
Valve and distributor wear
Internal housing wear
All seal and O-ring replacement
Nitrogen recharge to specification
Tool bushing measurement and replacement if worn beyond tolerance
For guidance on selecting the right hammer model and understanding its service requirements, refer to our article on how to choose the right hydraulic hammer for your breaker boom system.
The boom structure—comprising the boom arms, pedestal, pins, bushings, and hydraulic cylinders—is subject to continuous dynamic loading. Structural maintenance focuses on preventing the gradual accumulation of wear and fatigue damage from becoming a sudden failure.
Before each operating shift, conduct a visual inspection of the entire boom structure:
Pins and retaining clips: Confirm all pins are fully seated and retaining clips or lock plates are in place. A missing retaining clip is a serious safety hazard.
Hydraulic cylinders: Check for oil weeping around rod seals and at hose connections. Minor seepage should be monitored; active leaking requires immediate attention.
Hoses and fittings: Inspect all hydraulic hoses for abrasion, kinking, or chafing against structural members. Replace any hose showing external damage before it fails under pressure.
Boom arms and welds: Look for visible cracks, particularly at weld toes and stress concentration points near pin bores. Mark any suspected cracks for closer inspection.
This walk-around takes less than five minutes and catches the majority of developing problems before they become failures.
Pins and bushings are the primary wear items in the boom structure. As they wear, the clearance between pin and bushing increases, allowing greater movement at each joint. Excessive pin-bushing clearance causes:
Impact loads to be transmitted as shock rather than controlled movement
Accelerated wear at adjacent structural points
Reduced positioning accuracy of the hammer
Eventual structural damage to the boom arms themselves
Measure pin-bushing clearance weekly using feeler gauges or a dial indicator. Replace pins and bushings when clearance exceeds the manufacturer's wear limit. Do not wait for visible play or noise—by the time these symptoms appear, secondary damage has usually already occurred.
Hydraulic cylinder rods must be clean and undamaged to maintain seal integrity. Inspect rods weekly for:
Surface scoring or pitting — causes seal wear and eventual leakage
Corrosion — particularly in humid or coastal environments
Straightness — a bent rod will destroy seals immediately
Clean rods with a lint-free cloth before retraction if contamination is present. Apply a light coat of hydraulic oil to exposed rod surfaces during extended idle periods.
Conduct a thorough weld inspection monthly, paying particular attention to:
All weld toes at boom arm joints
Pedestal base plate welds
Cylinder mounting bracket welds
Any previously repaired areas

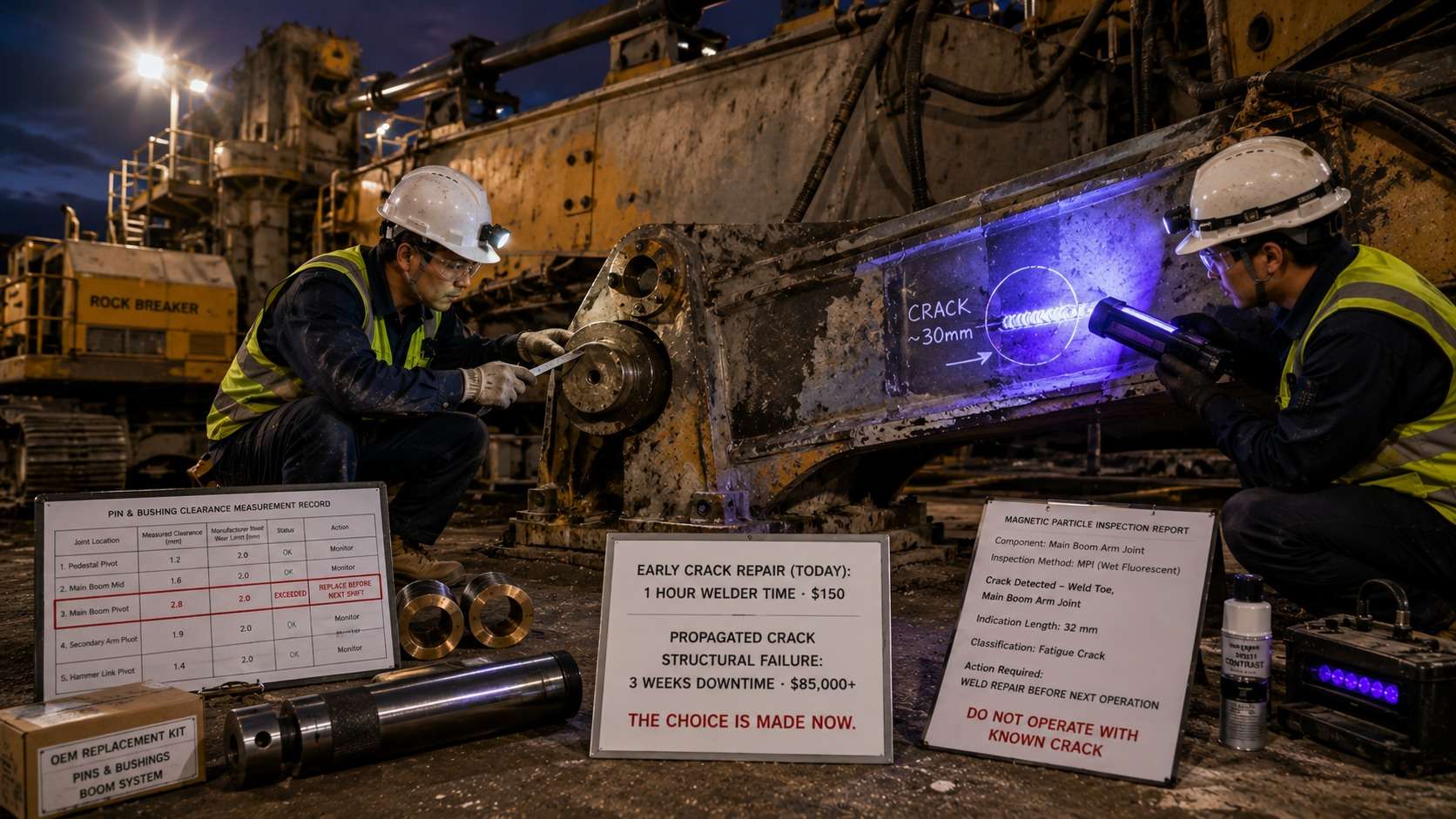

Use a torch and magnifying glass for visual inspection. For critical welds, magnetic particle inspection (MPI) or dye penetrant testing (DPT) can detect sub-surface cracks that are not visible to the naked eye.
Any crack, regardless of size, should be repaired immediately by a qualified welder using the correct procedure and filler material. Do not continue operating with a known crack—fatigue crack propagation is rapid under dynamic loading and a structural failure can cause serious injury.
Check and re-torque all structural fasteners—pedestal anchor bolts, boom mounting bolts, and cylinder pin lock plates—to the manufacturer's specified torque values. Vibration causes fasteners to loosen over time, and a loose anchor bolt can allow the entire pedestal to shift under load.
The hydraulic system is the power source for both the boom movement and the hammer operation. Oil quality, filtration, and system cleanliness are the foundations of hydraulic system reliability.
Check the HPU oil level at the start of each shift. Low oil level indicates a leak somewhere in the system—identify and repair the source before topping up.
Monitor oil temperature during operation. Most hydraulic systems are designed to operate between 40°C and 60°C. Sustained operation above 70°C degrades oil viscosity and accelerates seal wear. If oil temperature is consistently high, check the cooler for blockage and confirm that the cooler fan is operating correctly.
Walk the entire hydraulic circuit weekly and inspect all hoses, fittings, and quick-connect couplings for:
External damage, abrasion, or UV degradation on hose covers
Weeping at fittings or couplings
Hose routing that allows contact with moving structural members
Replace any hose showing external damage immediately. A hydraulic hose failure under pressure is a serious safety hazard and will cause immediate system shutdown.
Hydraulic filter elements should be replaced at the manufacturer's recommended interval—typically every 500 to 1,000 operating hours, or when the filter differential pressure indicator shows red.
Do not extend filter change intervals to save cost. A blocked or bypassed filter allows contamination to circulate through the system, causing accelerated wear in the hammer, cylinders, and control valves. The cost of a filter element is negligible compared to the cost of a contamination-related failure.
Hydraulic oil degrades over time through oxidation, contamination, and thermal breakdown. Conduct an oil analysis at least every 2,000 operating hours to check:
Viscosity
Water content
Particle count (ISO cleanliness level)
Acid number (oxidation indicator)
Metal particle content (wear indicator)
If the analysis indicates degradation or contamination, change the oil immediately regardless of hours. If the analysis is within specification, change the oil at the manufacturer's recommended interval.
When changing oil, flush the system and clean the tank interior before refilling. Use only the oil grade specified by the manufacturer—incorrect viscosity will affect both boom movement performance and hammer operation.
The control system—whether a fixed panel, proportional joystick system, or wireless remote—requires less frequent maintenance than the mechanical and hydraulic components, but should not be neglected.
Before each shift, perform a brief functional test of all boom movements and hammer activation. Confirm that:
All boom axes move smoothly and respond correctly to control inputs
The hammer activates and deactivates correctly
Emergency stop functions operate correctly
Wireless remote battery charge is adequate (if applicable)
Any control malfunction should be investigated and resolved before the shift begins. Operating with a faulty control system creates safety risks and can cause uncontrolled boom movement.
Inspect all electrical connections, cable routing, and junction boxes for:
Corrosion at terminals
Damaged cable insulation
Loose connections that may cause intermittent faults
Water ingress into junction boxes or control panels
Clean corroded terminals and reseal any junction boxes showing signs of moisture ingress. Replace damaged cables before they cause a control failure.
For systems using wireless remote control, maintain the remote handset according to the manufacturer's instructions:
Charge batteries fully before each shift
Keep antenna connections clean and tight
Store the handset in a protective case when not in use
Test the emergency stop function on the remote at the start of each shift
Frequency | Task |
Before each shift | Visual walk-around of boom structure and hoses |
Before each shift | Functional test of all boom movements and hammer |
Every 2 hours | Grease tool bushing (if manual lubrication) |
Daily | Check HPU oil level and temperature |
Daily | Inspect working tool for wear and damage |
Weekly | Check nitrogen gas pressure |
Weekly | Measure pin and bushing clearance |
Weekly | Inspect cylinder rods |
Weekly | Inspect all hydraulic hoses and fittings |
Monthly | Inspect and replace hammer seals if required |
Monthly | Structural weld inspection |
Monthly | Fastener torque check |
Monthly | Replace hydraulic filter elements |
Monthly | Inspect control system electrical connections |
Quarterly | Full hammer disassembly and internal inspection |
Every 2,000 hrs | Hydraulic oil analysis and change |
The most common cause of premature tool bushing failure is insufficient lubrication. If your site does not have automatic lubrication installed, manual greasing must be enforced as a non-negotiable operating procedure. A tool bushing that seizes will damage the hammer body and cause a shutdown that takes hours to resolve.
Low nitrogen pressure reduces hammer performance gradually, making it easy to overlook. Operators often compensate by pressing harder or working longer on each blockage, which increases boom structural loading and wear. Check nitrogen pressure weekly and treat it as a critical maintenance item.
Contaminated hydraulic oil is the leading cause of premature failure in hydraulic hammers and control valves. Maintain filter change intervals strictly, conduct regular oil analysis, and investigate any sudden increase in system temperature or pressure as a potential contamination indicator.
A small weld crack that is repaired early costs one hour of a welder's time. The same crack, left to propagate under dynamic loading, can cause a boom arm failure that requires weeks of downtime and a major structural repair. Never defer a known crack repair.
Aftermarket seals, pins, and bushings that do not meet the original specification will fail earlier than OEM parts and may cause secondary damage to adjacent components. The cost saving on a non-OEM seal kit is typically recovered within one additional seal change interval—it is not a genuine saving.
For guidance on choosing a manufacturer that provides reliable OEM spare parts and after-sales support, see our article on how to choose a reliable rock breaker boom manufacturer in China.
To minimize downtime when maintenance is required, maintain the following spare parts inventory on site at all times:
Part | Quantity | Notes |
Complete hammer seal kit | 2 sets | Allows immediate seal replacement |
Working tools (moil points) | 2–3 pieces | Match to your hammer model |
Tool bushing | 1 piece | Critical wear item |
Boom pin set (full set) | 1 set | All pin sizes for your boom model |
Boom bushing set (full set) | 1 set | All bushing sizes |
Hydraulic filter elements | 3–6 elements | One full change plus spares |
Hydraulic hose assemblies | 2–3 pieces | Most common lengths and fittings |
Nitrogen gas cylinder and regulator | 1 set | For nitrogen recharge |
Grease cartridges | Adequate supply | Correct grade for your hammer |
Confirm spare parts availability with your manufacturer before purchase. A supplier who cannot guarantee parts delivery within a reasonable timeframe represents a significant operational risk.
Some maintenance tasks require specialist knowledge or equipment and should be performed by the manufacturer's service team or a qualified service agent:
Major structural repairs involving boom arm replacement or pedestal re-welding
Hydraulic cylinder re-sealing or rod replacement
Control system firmware updates or sensor calibration
Full system commissioning after relocation or reinstallation
Any situation where the root cause of a failure is not clearly understood
Do not attempt major structural or hydraulic repairs without the correct technical documentation. Contact your manufacturer's service team for guidance.
A: A well-maintained system from a reputable manufacturer should deliver 15 to 20 years of reliable service. The hydraulic hammer will require more frequent component replacement, but the boom structure itself has a very long service life if structural maintenance is performed correctly.
A: Tool life varies significantly depending on rock hardness and abrasiveness. In soft rock applications, a moil point may last several months. In highly abrasive hard rock, replacement may be required every few weeks. Inspect the tool daily and replace when the tip is worn beyond the manufacturer's wear limit.
A: No. Use only the grease grade specified by the hammer manufacturer. Hydraulic hammer tool bushings operate under high impact loading and require a grease with specific extreme-pressure (EP) additives and the correct consistency. Standard general-purpose grease will not provide adequate protection.
A: The most common causes are low nitrogen gas pressure, worn tool bushing, degraded seals, and contaminated hydraulic oil. Check nitrogen pressure first—it is the most frequently overlooked factor and one of the easiest to correct.
A: Minor weld repairs can be performed on site by a qualified welder with the correct equipment and procedure. However, any repair to a primary structural member—boom arms, pedestal, or cylinder mounting brackets—should be reviewed by the manufacturer's engineering team before work begins to ensure the repair method is appropriate.
A: Measure the clearance between each pin and its corresponding bushing using feeler gauges. Compare the measured clearance to the manufacturer's wear limit specification. Replace when the clearance exceeds the limit. Do not rely on feel or noise alone—by the time these symptoms are noticeable, secondary damage has usually already occurred.
A: Check hydraulic oil level and temperature first. Then check filter condition—a blocked filter will restrict flow and cause slow or erratic movement. If oil level, temperature, and filter are all correct, the issue may be in the control valve or a cylinder seal. Contact your manufacturer's service team for diagnosis.
A pedestal rock breaker boom system is a long-term capital investment. Like any capital asset, its return depends on how well it is maintained. A structured, disciplined maintenance program—covering the hammer, boom structure, hydraulic system, and control system—is the single most effective way to protect that investment and ensure the system delivers reliable performance throughout its service life.
The cost of maintenance is predictable and manageable. The cost of unplanned failure—in downtime, emergency repairs, and lost production—is not. The choice between the two is made every day, in the quality of the maintenance decisions taken on site.
For more information on selecting the right system for your application, see our complete guide on how to choose the right pedestal rock breaker boom system for your crusher. For guidance on understanding the full cost of ownership, see our article on how much does a pedestal rock breaker boom system cost.
At YZH, we support every pedestal rock breaker boom system and hydraulic hammer we manufacture with full spare parts availability, technical documentation, and after-sales service.
Whether you need a seal kit, a replacement tool, or technical guidance on a maintenance issue, our team is ready to help.
