China Crusher-Mounted Pedestal Boom Rock Breaker System

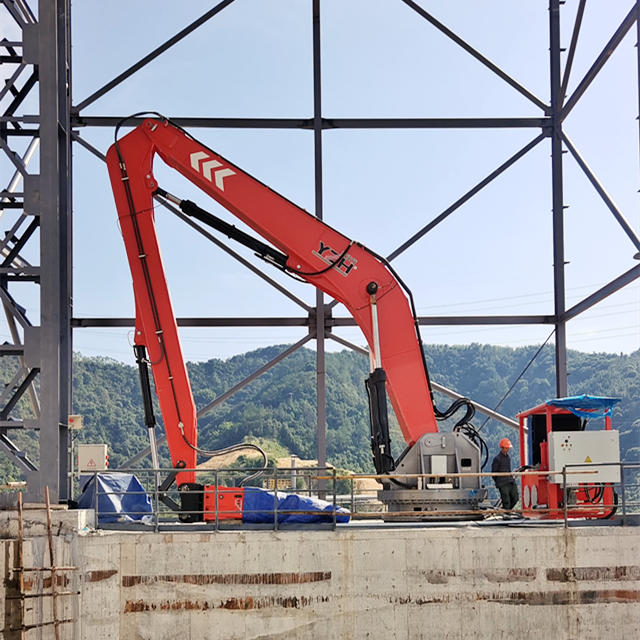

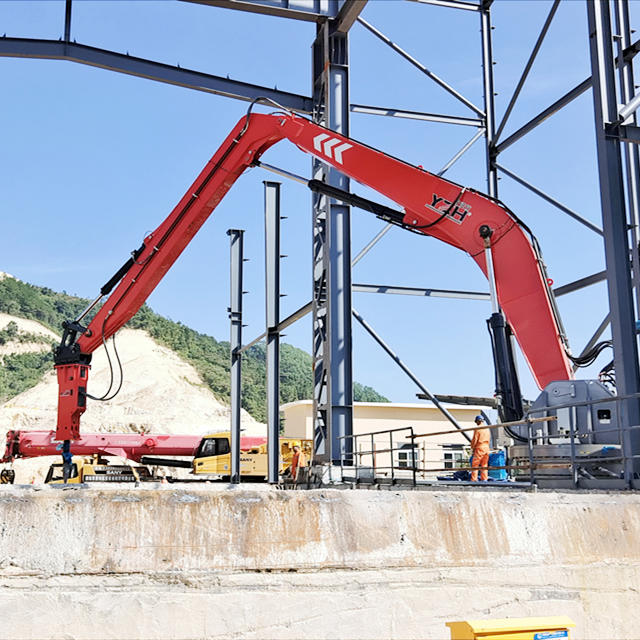

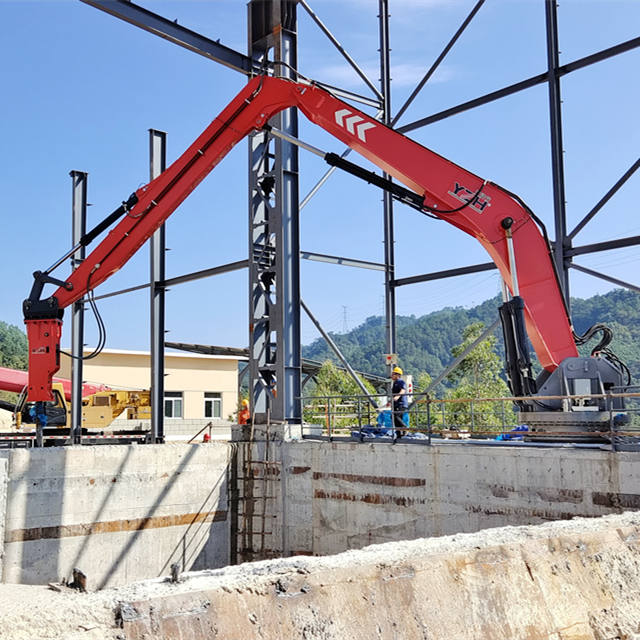

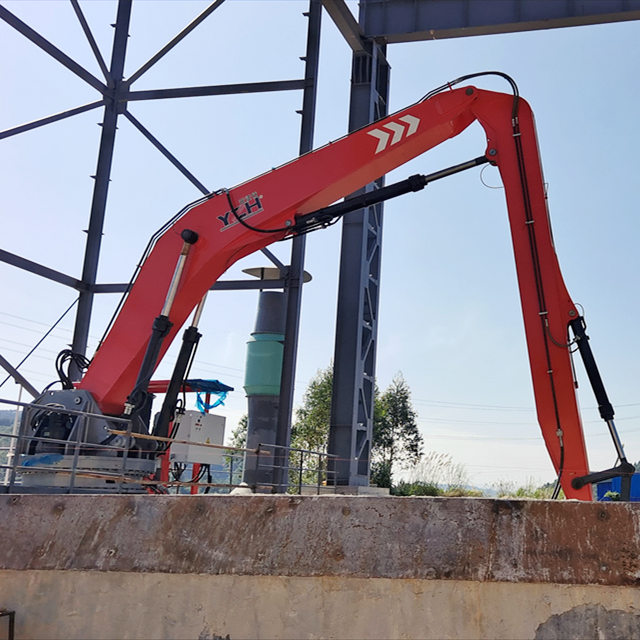

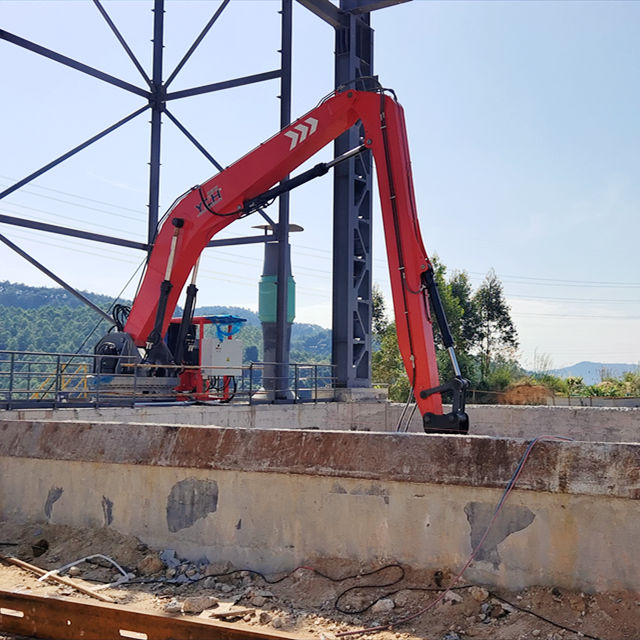

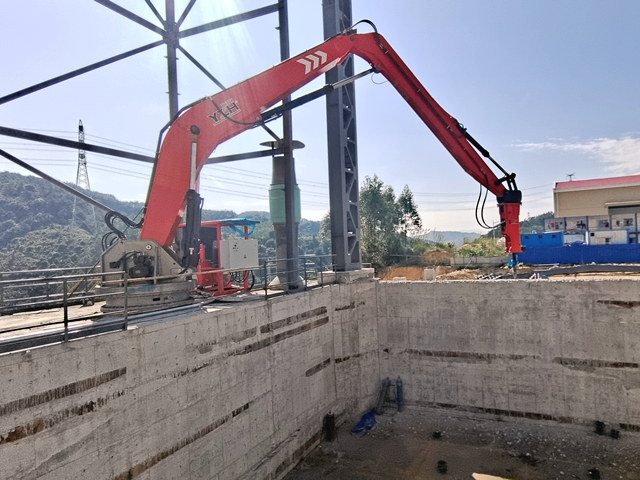

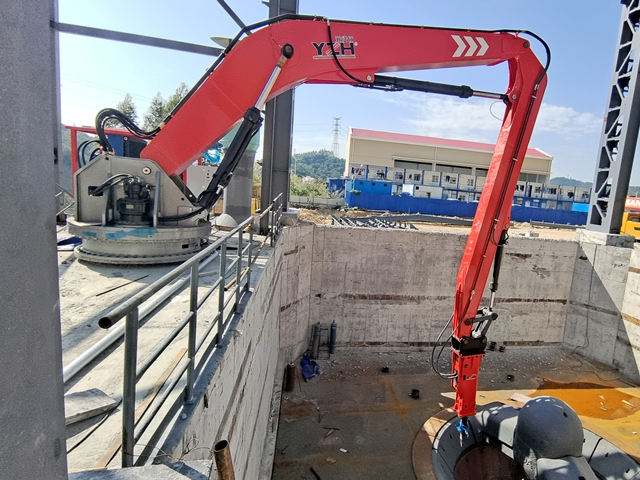

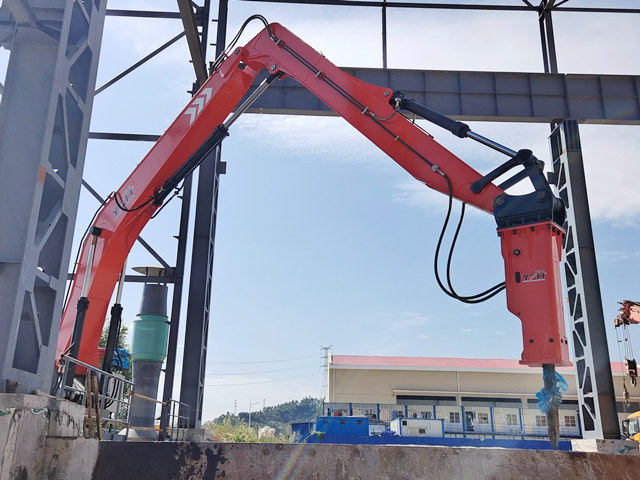

China crusher-mounted pedestal boom rock breaker system is a machine that can be mounted at crusher cavity to manage blockages and clear build ups to ensure smooth material flow.
Availability:
  • WHB710

  • YZH

Product Description

China Crusher-Mounted Pedestal Boom Rock Breaker System


China crusher-mounted pedestal boom rock breaker system is engineered in China to deliver reliable, high-impact performance in the most demanding material handling and rock-breaking applications. Purpose-built for integration with jaw crushers, gyratory crushers, grizzly feeders, and hopper systems, this heavy-duty boom system is ideal for controlling oversized rock at the crusher feed to ensure smooth, uninterrupted material flow and increased operational safety.

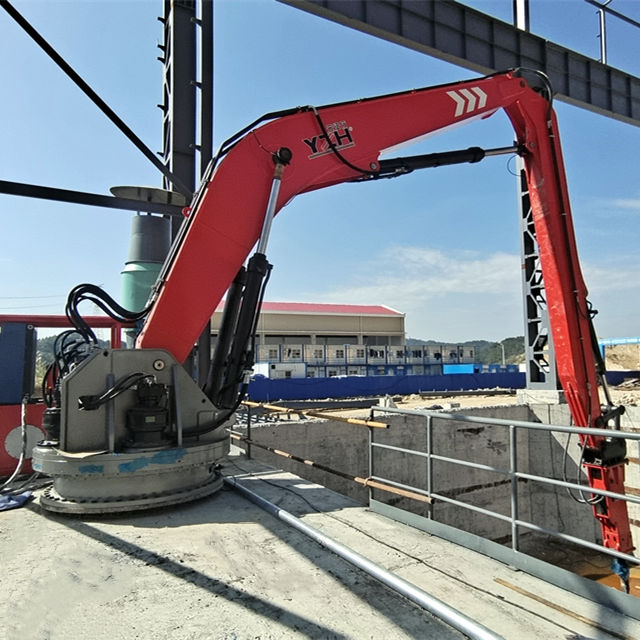

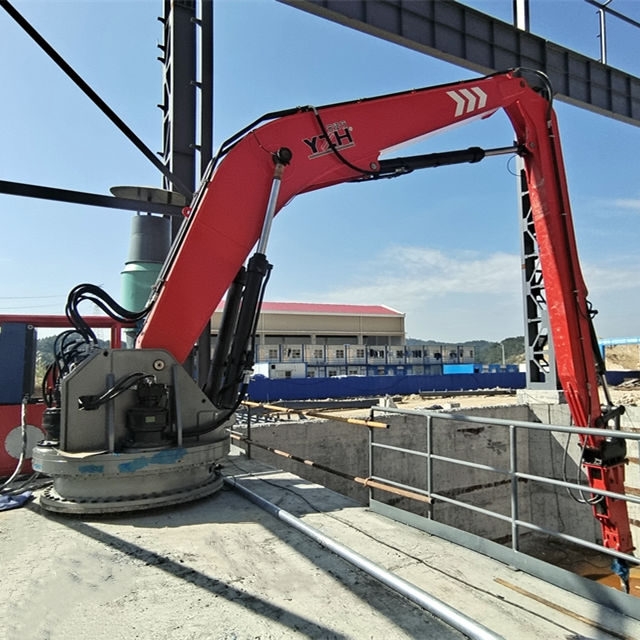

With a powerful hydraulic rotary base, this boom system features a 360° rotation angle, enabling precise positioning across a wide work area. Its robust pedestal mounting structure ensures stability during intensive hammering operations, while the articulating boom provides exceptional reach and coverage.


Optimized for medium to large crusher installations, this boom system supports a wide range of hydraulic breakers and offers enhanced control through electro-hydraulic joysticks or optional remote operation. It significantly reduces downtime caused by bridging and blockages, while improving productivity, operator safety, and equipment longevity.


Key Features of China Crusher-Mounted Pedestal Boom Rock Breaker System

1. Crusher-Mounted Configuration
Easily installs on jaw, impact, or cone crusher platforms, providing targeted coverage at the feed point.

2. Heavy-Duty Boom Construction
Reinforced with high-tensile steel and designed to absorb shock loads during continuous operation.

3. 360° Hydraulic Rotation
Offers wide-area coverage without the complexity of full 360° rotation—perfect for confined crusher environments.

4. Smooth Control System
Electro-hydraulic joystick or remote operation ensures accurate, safe, and responsive boom and hammer control.

5. Breaker Compatibility
Accepts 800–1500 kg hydraulic breakers, ideal for secondary breaking of large, uncrushable feed material.

6. Designed for Harsh Environments
Engineered for reliability in mining, quarrying, aggregate production, and underground crushing operations.


Applications of China Crusher-Mounted Pedestal Boom Rock Breaker System

1. Primary Crushing Stations

2. Aggregate Quarries

3. Mining and Ore Handling

4. Tunneling and Underground Rock Breaking

5. Construction & Demolition Recycling Facilities


Specification of China Crusher-Mounted Pedestal Boom Rock Breaker System

Model No. Unit WHB710
Max. horizontal working radius mm 9000
Max. vertical working radius mm 7150
Min. vertical working radius mm 2440
Max. working depth mm 6740
Rotation ° 360
