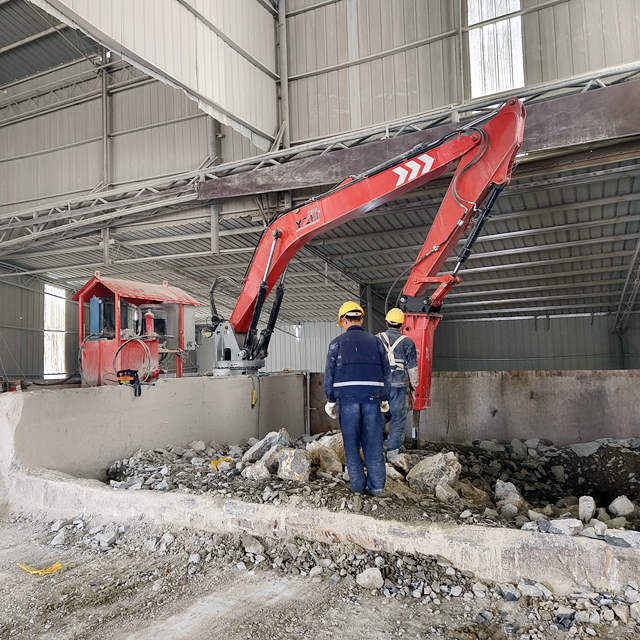

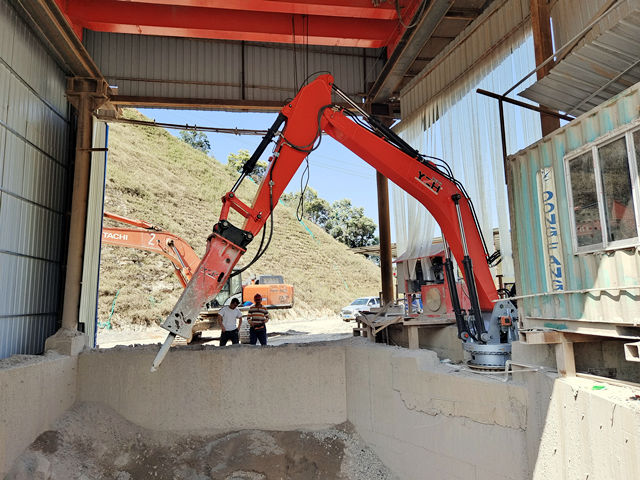

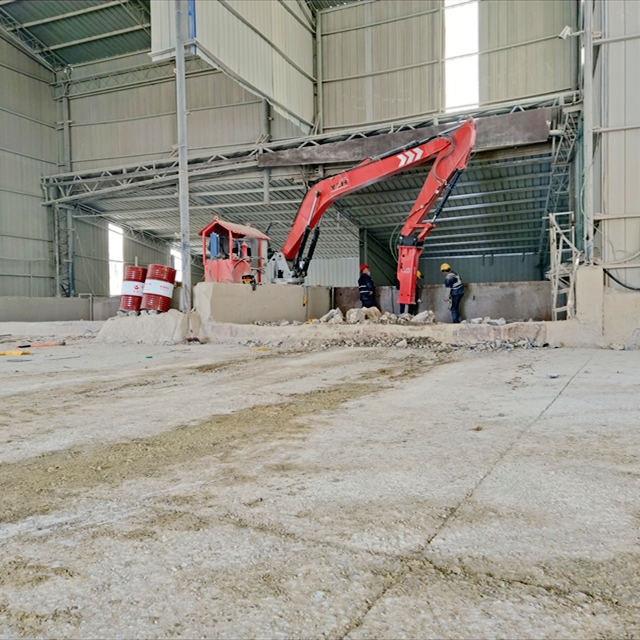

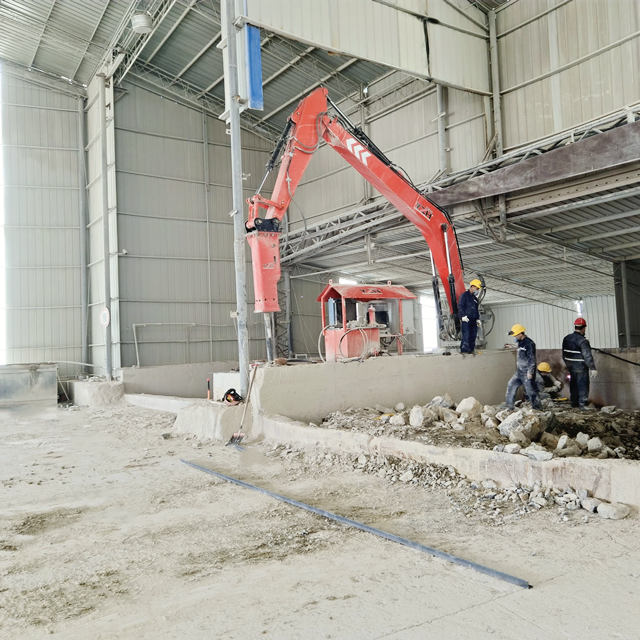

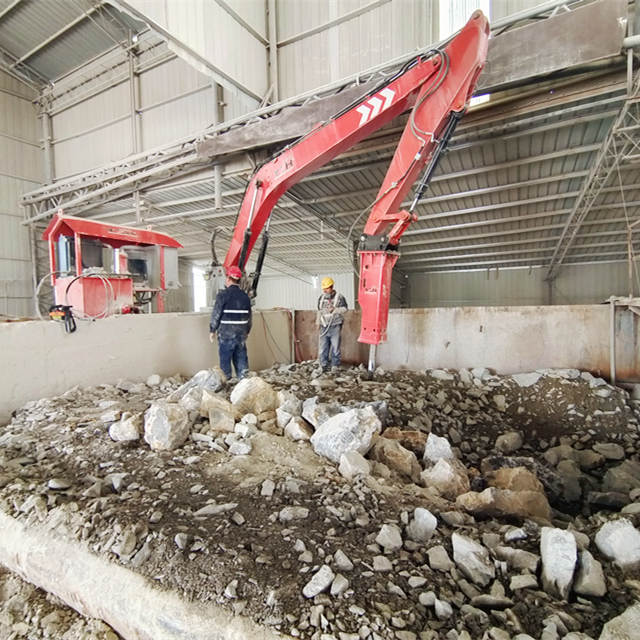

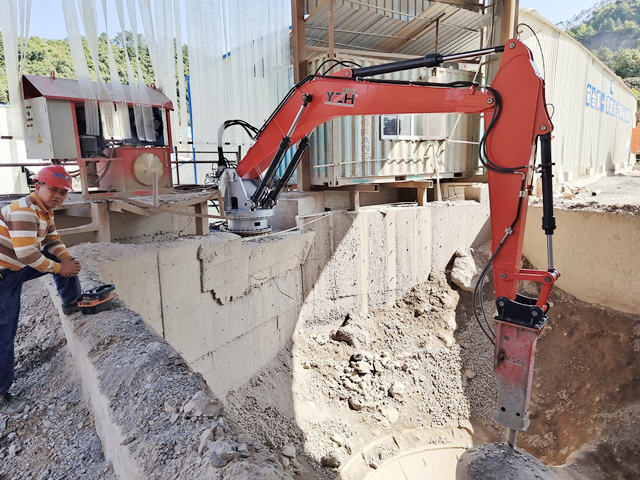

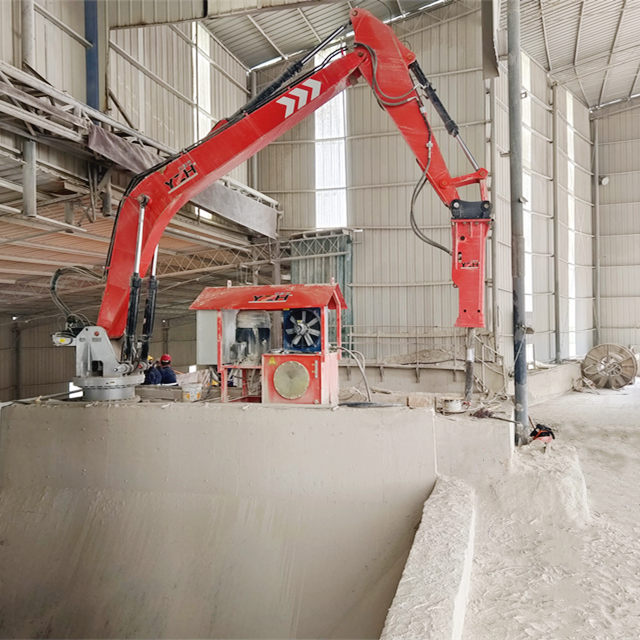

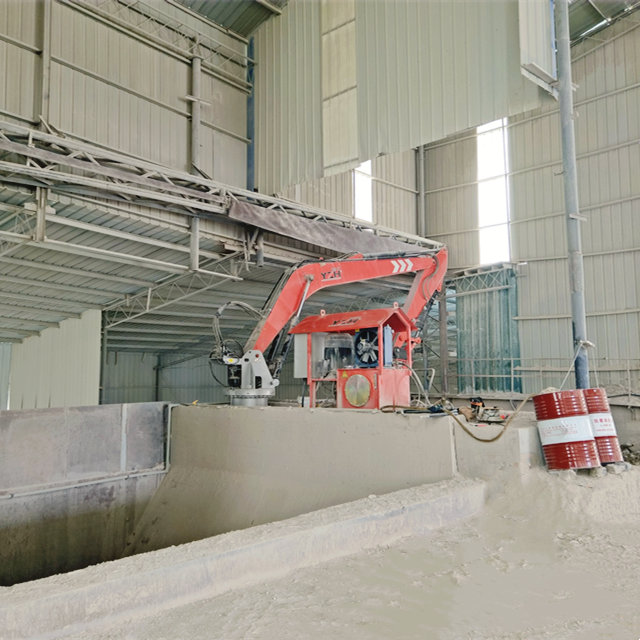

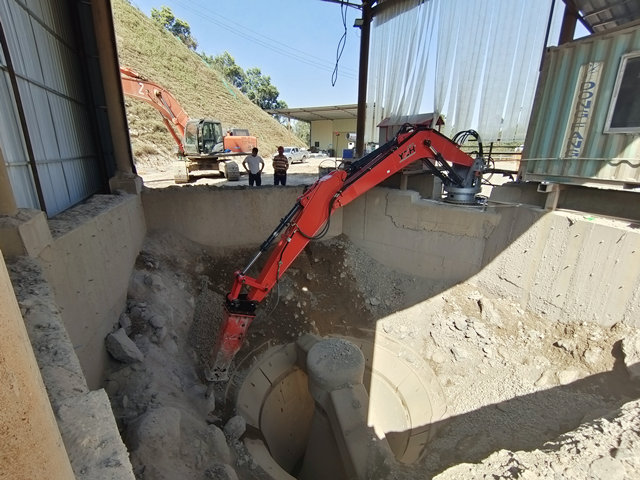

YZH Stationary Pedestal Rockbreaker Boom System Mounted at Gyratory Crusher Cavity
YZH stationary pedestal rockbreaker boom system is specifically designed to operate at the gyratory crusher cavity, where oversized boulders and bridged materials commonly obstruct the crushing process. Engineered for maximum strength, precision, and continuous duty, this system ensures safe and efficient rock breaking directly at the feed opening of the crusher, keeping production lines running smoothly and minimizing unplanned downtime.
Installed on a robust steel pedestal, YZH stationary pedestal rockbreaker boom system is built to withstand the intense conditions of primary crushing stations, particularly in high-capacity mining and aggregate operations. With an extended horizontal reach, wide working range, and high-powered hydraulic breaker compatibility, this system offers exceptional performance in breaking hard, abrasive rock that would otherwise choke the crusher chamber.
Controlled via joystick or optional remote, operators can safely and precisely maneuver the boom from a protected distance, eliminating the need for manual rock clearing and drastically improving site safety.
Key Features of YZH Stationary Pedestal Rockbreaker Boom System
1. Purpose-Built for Gyratory Crusher Applications
Strategically mounted to cover the entire feed hopper area of the gyratory crusher, enabling effective management of oversized material.
2. Heavy-Duty Pedestal Structure
Provides a secure and vibration-resistant base, designed to withstand constant hammering and harsh working conditions.
Extended Boom Reach
Boom lengths available from 6 to 12 meters, with powerful hydraulic articulation for deep cavity access and wide area coverage.
3. Hydraulic Slewing Mechanism
Offers full 360° rotation to ensure complete maneuverability across the crusher cavity.
4. Breaker Compatibility
Supports hydraulic breakers in the 1000 – 3000 kg range, delivering high-impact force for breaking large or tough rock formations.
5. Remote and Joystick Control Options
Enhances safety by allowing operators to control the system from a distance—reducing exposure to falling debris and crusher hazards.
6. Minimized Crusher Downtime
Prevents costly production halts caused by rock bridging, oversized feed, or material jamming in the crusher chamber.
Applications of YZH Stationary Pedestal Rockbreaker Boom System
1. Gyratory Crusher Primary Stations
Mounted above the feed opening to eliminate bridging and reduce blockages.
3. High-Tonnage Mining Sites
Ideal for continuous breaking of hard, abrasive ores and oversized material.
3. Aggregate and Quarry Plants
Increases efficiency and material flow at primary crushing stages.
4. Underground Crusher Installations
Compact yet powerful solution for confined spaces in shaft or tunnel operations.
Specification of YZH Stationary Pedestal Rockbreaker Boom System
| Model No. | Unit | WHC860 |
| Max. horizontal working radius | mm | 11000 |
| Max. vertical working radius | mm | 8665 |
| Min. vertical working radius | mm | 3000 |
| Max. working depth | mm | 7740 |
| Rotation | ° | 360 |
YZH stationary pedestal rockbreaker boom system is a critical asset for high-volume, high-pressure crushing environments. Designed to work non-stop under tough conditions, it ensures uninterrupted flow, enhanced safety, and optimized crusher performance.
