YZH Stationary Pedestal Boom System for Rock Breaking in Mining Site

YZH stationary pedestal boom system is a machine designed to break rocks in mining site to ensure smooth operation of necessary equipments such as grizzly screen and crusher.
Availability:
  • WHA560

  • YZH

Product Description

YZH Stationary Pedestal Boom System for Rock Breaking in Mining Site

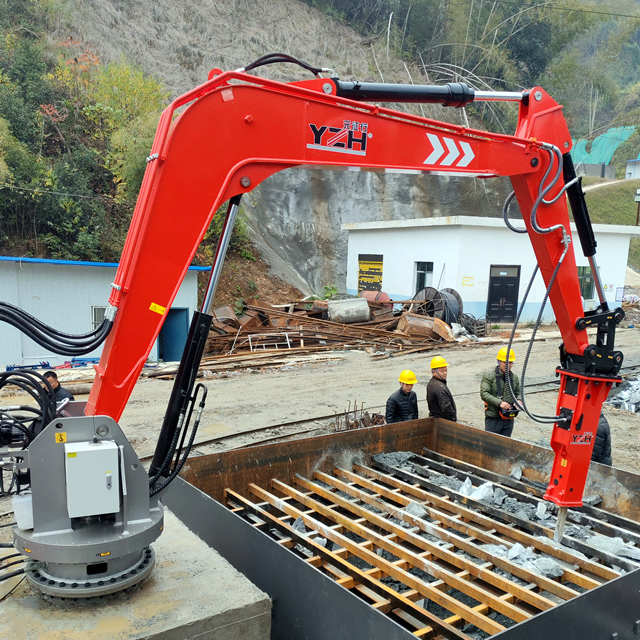

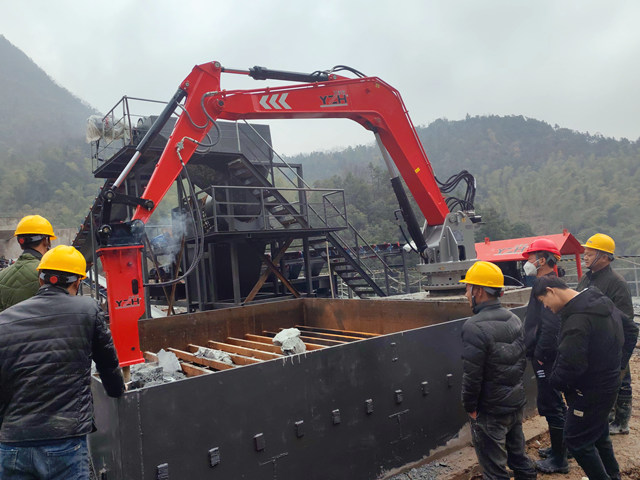

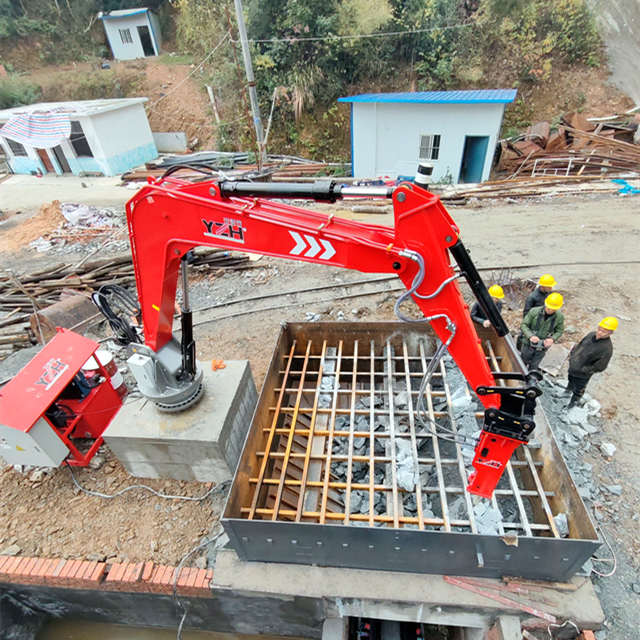

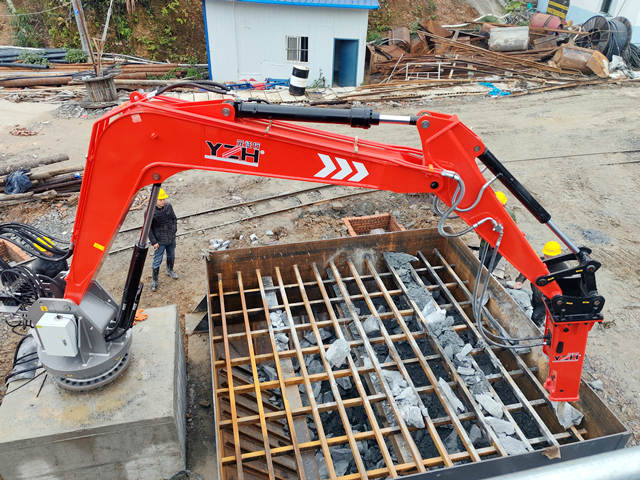

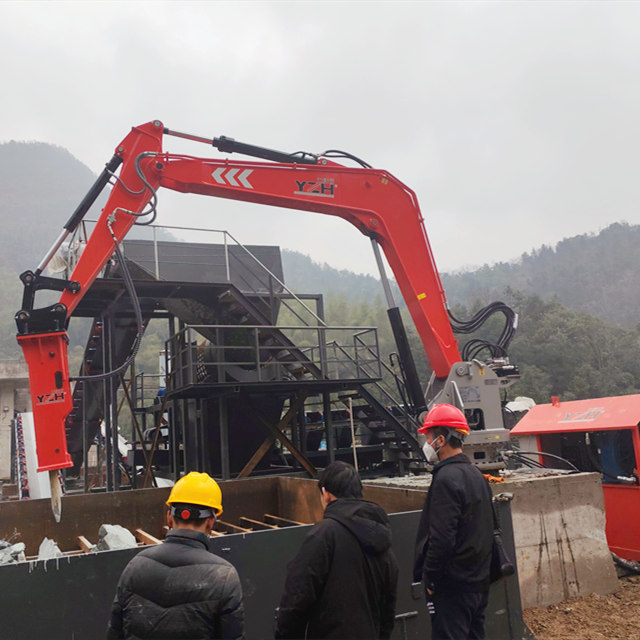

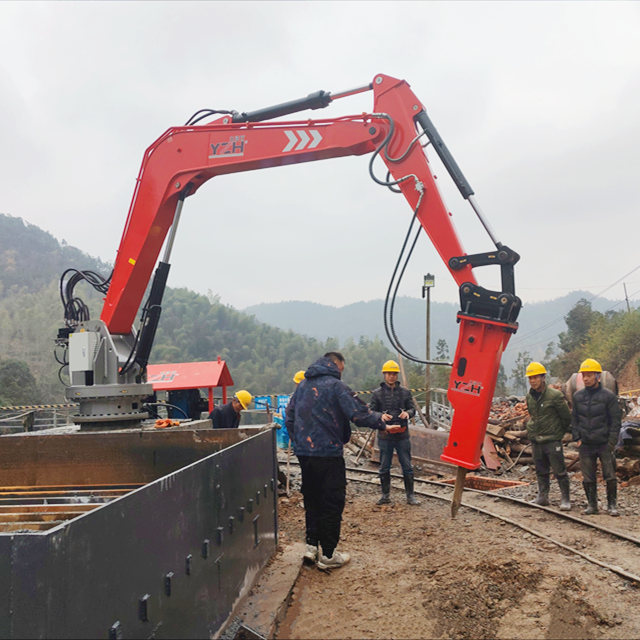

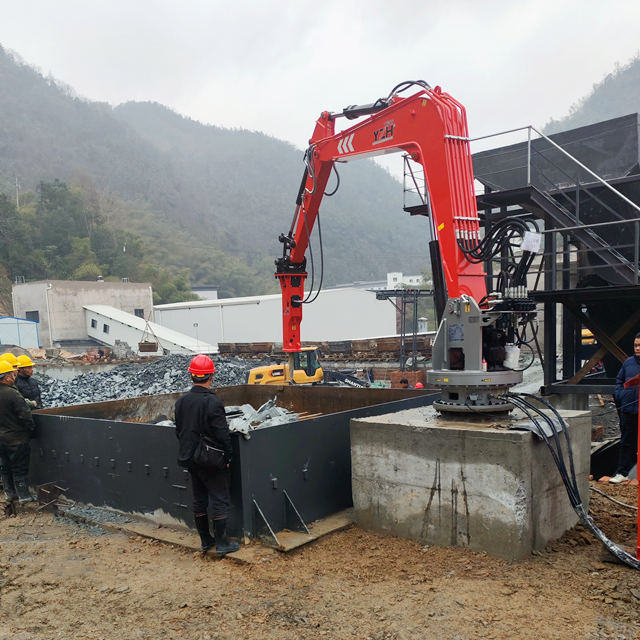

YZH stationary pedestal boom system is a rugged and high-performance rock breaking solution specifically engineered for demanding mining environments. Designed to be permanently installed at key crushing and material handling points, this system enables safe and efficient breaking of oversized rock and uncrushable materials that obstruct the crusher inlet or grizzly bars.


Purpose-built for continuous operation at mining sites, YZH stationary pedestal boom system enhances production efficiency, reduces crusher downtime, and significantly improves workplace safety. Featuring a robust pedestal-mounted design, precision-controlled hydraulic boom, and compatibility with a wide range of hydraulic breakers, it provides operators with the reach, flexibility, and impact force needed to manage the most challenging rock-breaking tasks.


Whether deployed at a jaw crusher, gyratory crusher, surge pile, or underground ore pass, YZH stationary pedestal boom system helps maintain a smooth and uninterrupted material flow for mining operations, minimizing costly equipment damage and production delays.


Features of YZH Stationary Pedestal Boom System

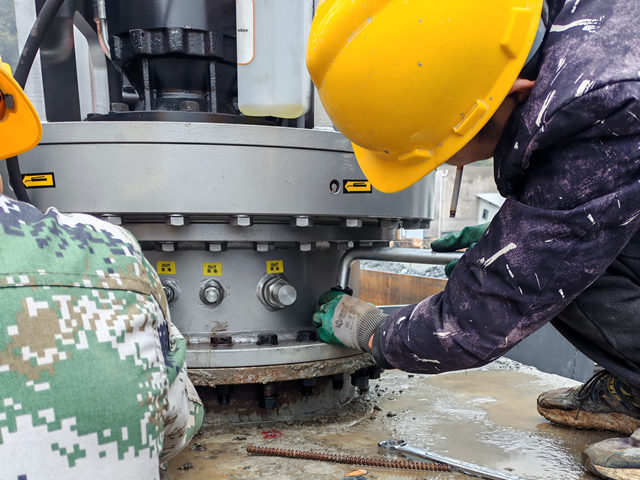

1. Heavy-Duty Pedestal Design
Built for permanent installation at high-impact zones in open-pit and underground mining sites, offering unmatched durability and stability.

2. Wide Working Range
Customizable boom length and working envelope with up to 360° hydraulic rotation to suit varied site layouts and equipment positioning.

3. Hydraulic Precision
Electro-hydraulic control system with smooth and responsive joystick operation for accurate breaker positioning and movement, even under extreme working conditions.

4. Breaker Versatility
Supports hydraulic breakers in the 500 kg – 3000 kg class, adaptable for light, medium, and heavy-duty rock-breaking tasks.

5. Safety-Oriented Engineering
Includes emergency shut-off systems, pressure relief valves, operator distance control, and reduced need for manual handling of boulders.

6. All-Weather Operation
Engineered to perform reliably in extreme mining environments—from icy high altitudes to dusty, hot desert sites.


Applications of YZH Stationary Pedestal Boom System

1. Primary Crusher Feed Area – For managing large boulders and preventing crusher blockages

2. Grizzly Feeder Stations – For clearing stuck rocks and maintaining uniform material flow

3. Underground Ore Passes – For safe, remote rock breaking where manual work is hazardous

4. Stockpile Discharge Points – For handling oversized material before secondary crushing

5. Remote or Hazardous Locations – Reduces need for explosives or manual labor in risky zones


YZH stationary pedestal boom system is the ideal choice for mining operators who demand reliable, automated, and safe rock-breaking solutions in high-volume production environments. Engineered for performance, built for durability—this system is an essential part of any modern mining site.


Specification of YZH Stationary Pedestal Boom System

Model No. Unit WHA560
Max. horizontal working radius mm 6710
Max. vertical working radius mm 5150
Min. vertical working radius mm 1260
Max. working depth mm 4820
Rotation ° 360
