YZH WH Series Auto-Lubricated Pedestal Rock Breaker System

YZH pedestal rock breaker system is a machine designed to enhance efficiency, safety, and productivity in demanding environments such as mines, quarries and aggregate industries.
Availability:
  • WHB710

  • YZH

Product Description

YZH WH Series Auto-Lubricated Pedestal Rock Breaker System


Features of YZH Pedestal Rock Breaker System

1. Heavy-duty construction – Made with high-strength steel to withstand extreme conditions in mining, quarrying, and aggregate plants.

2. Hydraulic operation – Provides powerful and efficient breaking with precise control over force and movement.

3. Customizable boom length & reach – Available in various sizes and configurations to suit different worksite needs.

4. 360-degree rotation – Offers complete flexibility in breaking operations, reducing repositioning time.

5. Remote-control option – Allows operators to control the breaker from a safe distance, enhancing safety.

6. Automated greasing system – Ensures optimal lubrication for extended equipment life.

7. Compatibility with different breaker attachments – Works with a range of hydraulic hammers for different rock sizes and hardness levels.

8. Shock absorption technology – Reduces vibration impact on the boom and surrounding structures.

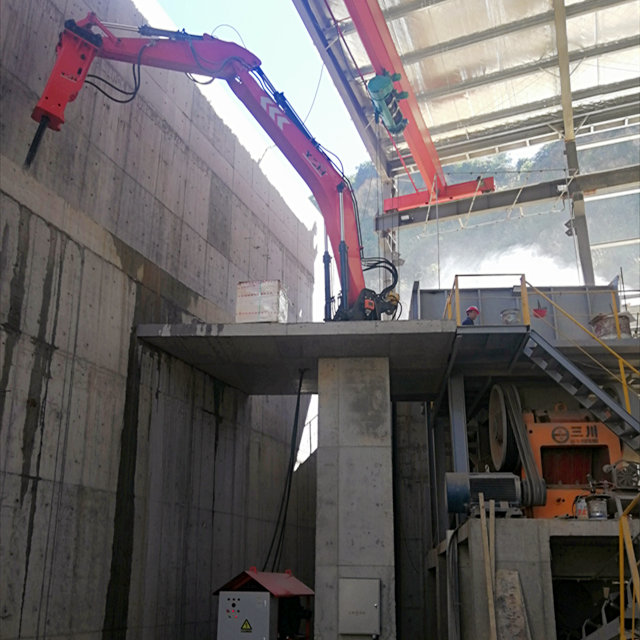

9. Easy installation – Can be mounted on primary crushers, grizzlies, and mobile equipment.

10. Weather-resistant design – Built to perform reliably in harsh outdoor environments.


Specification of YZH Pedestal Rock Breaker System

Model No. Unit WHB710
Max. horizontal working radius mm 9000
Max. vertical working radius mm 7150
Min. vertical working radius mm 2440
Max. working depth mm 6740
Rotation ° 360

pedestal boomboom system
