China YZH Stationary Rockbreaker Boom System Mounted at Jaw Crusher Cavity
YZH stationary rockbreaker boom system, designed and manufactured in China, is a powerful and reliable solution for rock breaking and blockage removal at the jaw crusher cavity. This robust pedestal-mounted system is engineered to operate around-the-clock in tough mining and quarry environments, where oversized rock and bridging frequently interrupt the crushing process.

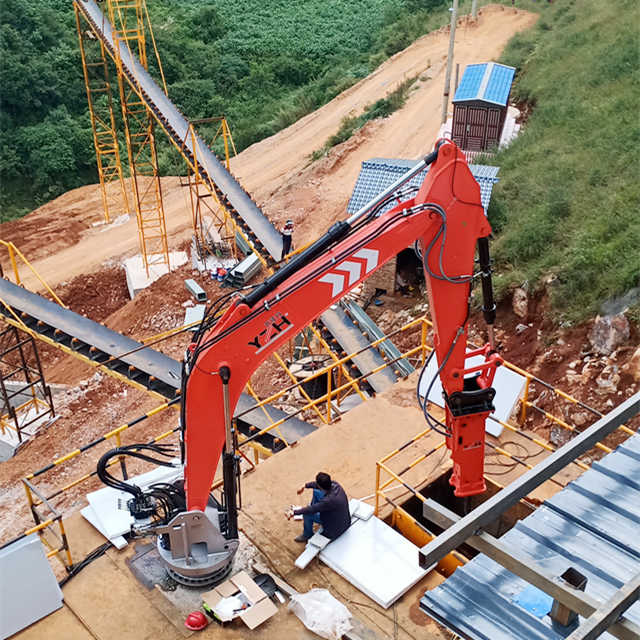

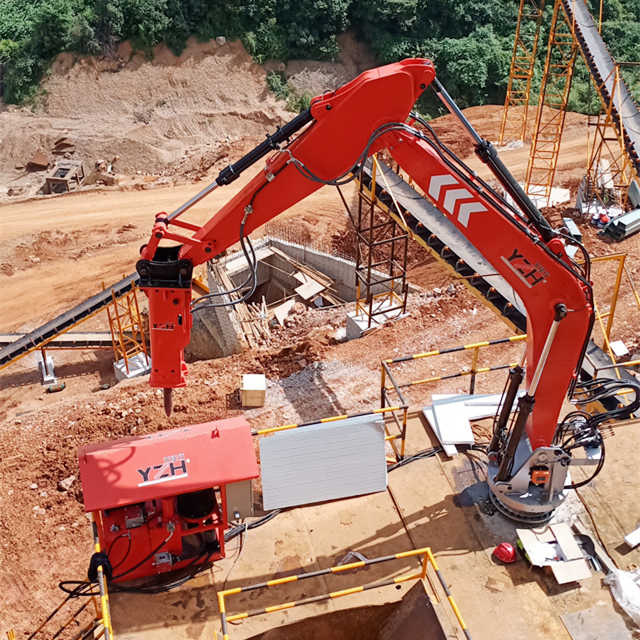

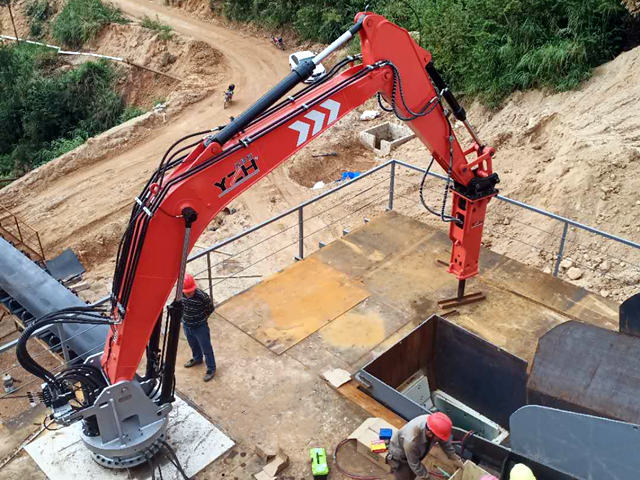

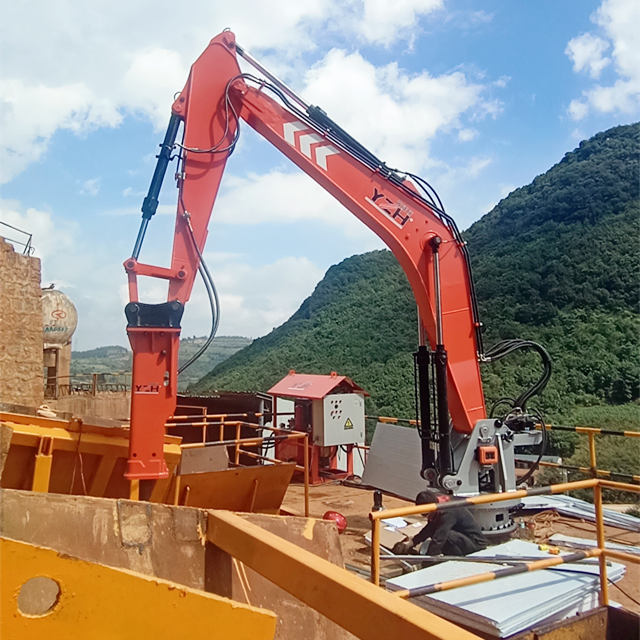

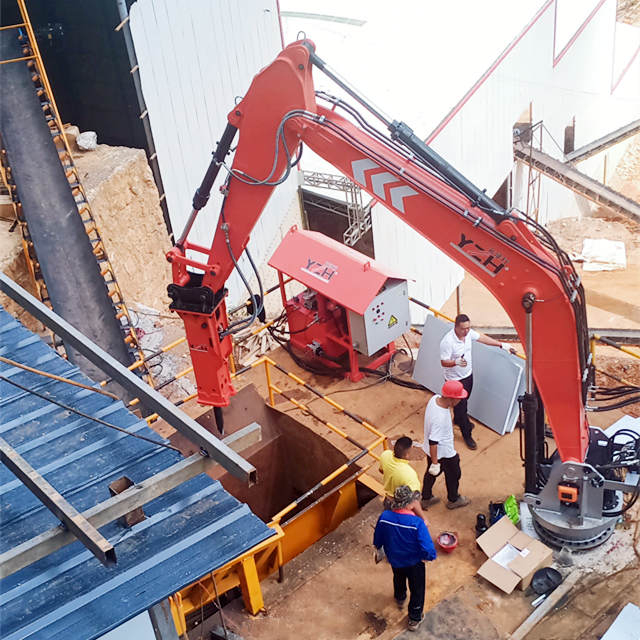

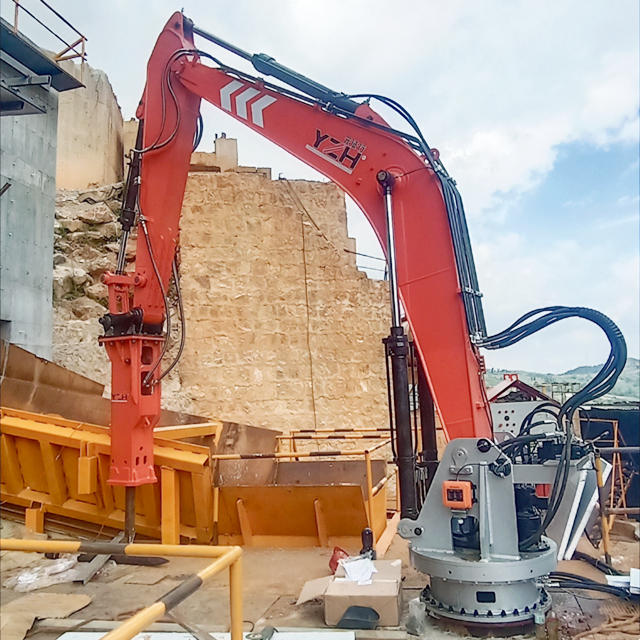

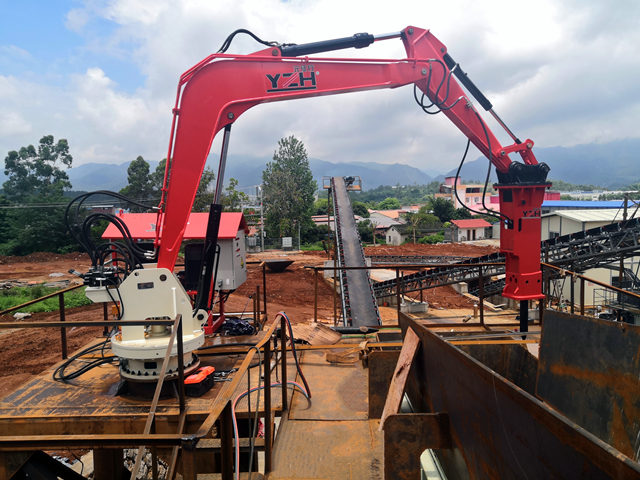

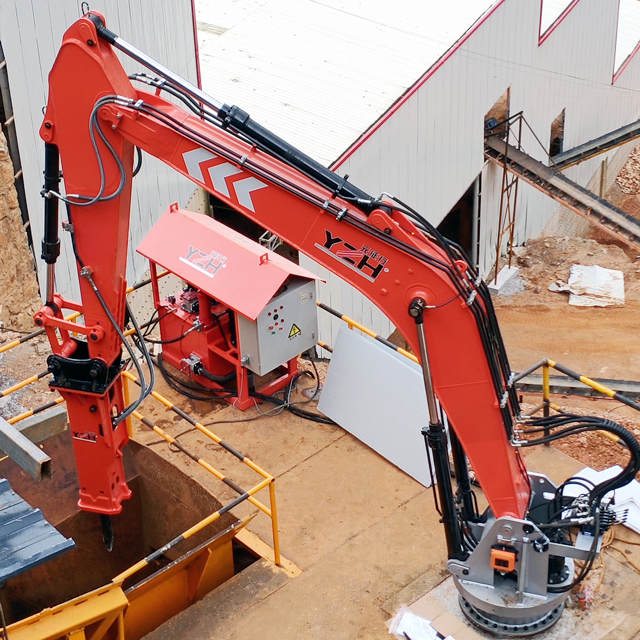

Installed above the jaw crusher's feed hopper, YZH stationary rockbreaker boom system gives operators complete control to safely and efficiently eliminate obstructions before they enter the crushing chamber. With heavy-duty steel construction, hydraulic precision control, and high-impact breaker compatibility, it ensures safer operations, reduced downtime, and improved crusher throughput.
YZH stationary rockbreaker boom system is ideal for large-scale open-pit and underground operations, aggregate production sites, and material handling plants seeking reliable, automated rock-breaking support at the primary crusher station.
Key Features of YZH Stationary Rockbreaker Boom System
1. Designed for Jaw Crusher Applications
Specifically engineered to address rock bridging and oversize material directly at the jaw crusher inlet.
2. Heavy-Duty Pedestal Construction
Anchored on a reinforced steel base for long-term stability, even under continuous impact force.
3. High-Precision Boom Operation
Offers customizable boom length and movement range for optimized access to the entire cavity area.
4. Hydraulic Slewing and Articulation
Features 360° hydraulic rotation, allowing smooth side-to-side operation across the crusher feed zone.
5. Breaker Compatibility
Compatible with hydraulic breakers from 500 kg to 3000 kg, providing flexibility for various material hardness and size.
6. Electro-Hydraulic Control
Joystick or remote-controlled for safe, accurate, and user-friendly rock breaking from a distance.
7. Increased Efficiency and Safety
Reduces the need for manual labor or blasting, minimizing the risk of injury and keeping crusher downtime to a minimum.
Applications of YZH Stationary Rockbreaker Boom System
1. Primary Jaw Crusher Stations – Break down large boulders and bridge materials before entry into the crushing zone.
2. Mining and Quarrying – Continuous duty in high-impact environments where oversized rock is frequent.
3. Material Handling Sites – Improves flow and processing efficiency at feed stations and grizzly bars.
4. Underground Mining – Adaptable for confined space installations with customized boom geometry.
Benefits of Choosing YZH Stationary Rockbreaker Boom System
1. Over 20 years of experience in hydraulic boom system manufacturing.
2. Tailor-made solutions for unique site conditions.
3. Factory-direct pricing from China with international quality standards.
4. Reliable technical support and parts availability.
Specification of YZH Stationary Rockbreaker Boom System
| Model No. | Unit | WHC960 |
| Max. horizontal working radius | mm | 11920 |
| Max. vertical working radius | mm | 9600 |
| Min. vertical working radius | mm | 3360 |
| Max. working depth | mm | 7815 |
| Rotation | ° | 360 |
YZH stationary rockbreaker boom system is an essential addition to any site utilizing jaw crushers, helping you maintain continuous production, enhance safety, and reduce operational disruptions. Built tough, designed smart—YZH keeps your crushing process flowing.
