Pedestal Rock Breaker Booms System XL1400

loading

Share to:
sharethis sharing button
Availability:
Quantity:
Inquire Add to Basket

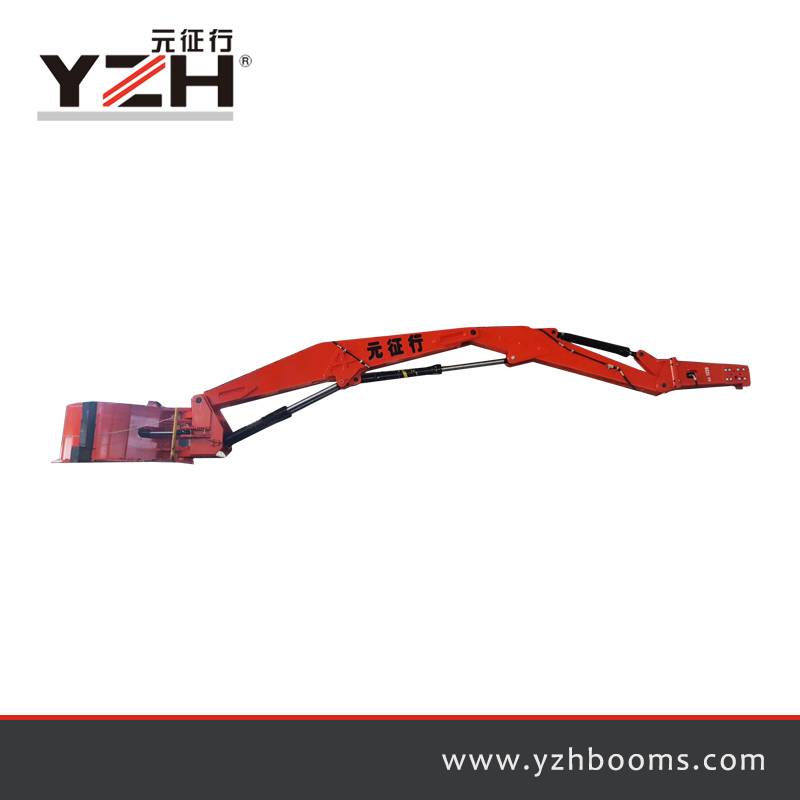

XL1400R Pedestal Rock Breaker Booms System


XL Series

Unit

XL1400
Weight

Kg

17500
Maximum Reach

m

17.0
Nominal Horizontal Reach (H)

m

14.1
Nominal Vertical Reach (V)

m

13.2
Swing°

°

170
Base Diameter

m

2.29
Recommended Hydraulic Hammer(Chisel Size )

mm

140,155,175
Recommended Power Packs

HA55,HA55HD,HA75

Features
Round pedestal
Heavy-duty design
Proven design
Long reach
360° swing option
Suitable hydraulic hammers for XL-booms are large series hammers up to 175

Pedestal Rock Breaker Booms System XL1400-2

Applications
Stationary crushers
Grizzlies
High production applications

Pedestal Rock Breaker Booms System XL1400-3
