Views: 0 Author: Kun Tang Publish Time: 2026-02-25 Origin: Jinan YZH Machinery Equipment Co., Ltd.
In the heavy equipment industry, versatility is just as valuable as power. The Hydraulic Rock Breaker is the "Swiss Army Knife" of the excavation world. Whether it is pulverizing reinforced concrete in a city center or shattering granite boulders in a remote quarry, the core principle remains the same: delivering concentrated kinetic energy to fracture material.
However, the application of this force varies significantly across industries. Understanding these specific use cases helps project managers select the right equipment—such as mobile attachments versus stationary Rock Breaker Booms Systems—to maximize ROI and safety.
Here is an analysis of how rock breakers are reshaping operations across three critical sectors.
In construction, the rock breaker is often the first machine on site (for ground preparation) and the last one to leave (for demolition).
The Challenge: Removing old infrastructure without damaging adjacent structures.
The Application: Hydraulic breakers are used for "selective demolition." Operators can surgically remove reinforced concrete walls or bridge decks. Modern breakers with variable frequency settings allow for high-speed, low-impact breaking, which reduces vibration transfer to nearby buildings.
The Challenge: Encountering bedrock or hard permafrost when digging foundations or trenches.
The Application: Before an excavator bucket can scoop, a breaker must fracture the ground. In road construction, breakers are essential for removing asphalt layers and preparing the sub-base for new paving.
This is the most demanding environment for any equipment. In mining, the rock breaker is not just a tool; it is a production-critical asset.
The Challenge: Oversized rocks (oversize) often block the intake of the primary jaw crusher or gyratory crusher. This blockage, known as "bridging," stops the entire processing plant.

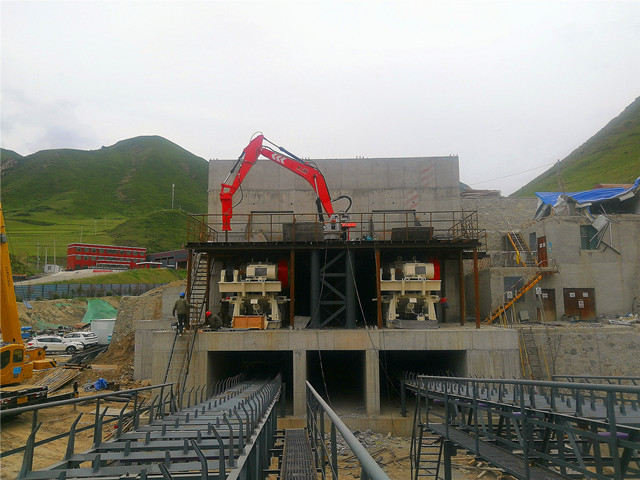

The Solution: This is the specific domain of the Rock Breaker Booms System. Unlike mobile excavators, these stationary pedestal booms are mounted permanently above the crusher. They allow the operator to safely reach into the crusher throat and break the blockage immediately, ensuring continuous throughput.
The Challenge: Blasting doesn't always reduce rock to a manageable size.
The Application: Mobile rock breakers traverse the pit floor or stockpile, breaking large boulders into smaller pieces that can fit into haul trucks or the crusher. This "secondary breaking" is cheaper and safer than secondary blasting.
Municipal projects often operate under strict time constraints and noise regulations.
The Application: Excavating trenches for water pipes and sewage lines often requires breaking through layers of limestone or old concrete infrastructure.
The Advantage: A hydraulic breaker mounted on a compact excavator allows crews to work in narrow urban alleyways where blasting is impossible and large machinery cannot fit.
The Application: While Tunnel Boring Machines (TBMs) do the heavy lifting, hydraulic breakers are used for "scaling" (removing loose rock from tunnel walls) and excavating cross-passages or ventilation shafts where the TBM cannot reach.
A large limestone quarry in Southeast Asia faced daily shutdowns due to oversized rocks jamming their primary crusher.
The Solution: They installed a heavy-duty Rock Breaker Booms System directly at the crusher feed.
The Result: Downtime caused by blockages dropped by 90%. The site no longer needed to divert a mobile excavator to clear jams, saving fuel and increasing overall plant production by 15%.
A contractor in Europe needed to demolish a highway overpass at night.
The Solution: They utilized a fleet of hydraulic breakers equipped with sound-suppression housing.
The Result: The project was completed within the 48-hour window without violating the city's noise ordinances.
From the precise demolition of a city bridge to the brute force required in an iron ore mine, the hydraulic rock breaker is indispensable.
However, the future of the industry lies in specialization. While mobile breakers offer flexibility, the mining and aggregate sectors are increasingly turning to dedicated Rock Breaker Booms Systems to guarantee production continuity.
Does your operation need a dedicated solution?Don't let oversized rock stop your crusher. Explore our specialized range of pedestal booms designed for maximum uptime.
Q1: What is the difference between a mobile breaker and a pedestal boom system?
A: A mobile breaker is an attachment mounted on an excavator (track or wheel). A Pedestal Boom System is a stationary unit, bolted to a concrete or steel foundation, typically positioned over a crusher or grizzly screen to clear blockages safely.
Q2: Can the same rock breaker be used for mining and demolition?
A: Technically yes, but it's not optimal. Demolition breakers often prioritize high frequency (speed) to break concrete. Mining breakers prioritize high impact energy (power) to fracture hard rock. Using a demolition breaker in a mine may lead to premature failure.
Q3: How do I choose the right size breaker for my project?
A: It depends on the carrier weight and the material hardness. Generally, the breaker weight should be about 10% of the excavator's operating weight. For stationary booms, the reach and lifting capacity are determined by the size of the crusher opening.
Q4: Why are pedestal booms preferred in quarries over excavators?
A: Safety and Cost. A pedestal boom removes the need for a human to drive a vehicle near the open crusher mouth. It is also electric-powered (usually), which is cheaper to run and maintain than a diesel excavator engine.
