How to Troubleshoot a Pedestal Rock Breaker Boom System: A Field Guide

Views: 0 Author: Kun Tang Publish Time: 2026-07-22 Origin: YZH Machinery

Table of Contents

When a pedestal rock breaker boom system stops working — or starts working poorly — the pressure to restore it quickly is intense. The crusher is waiting. Production is stopped. Every minute of diagnostic time has a direct cost.

This guide is written for maintenance engineers, plant technicians, and operators who need to identify and resolve faults in a pedestal rock breaker boom system as quickly as possible. It covers the most common fault categories — hydraulic system, hydraulic hammer, boom structure and cylinders, control system, and electrical system — with structured symptom-cause-solution tables for each.

This is not a substitute for the manufacturer's service manual. Always refer to the specific documentation for your system model before performing any maintenance or repair work. However, this guide will help you identify the fault category quickly, narrow down the likely cause, and determine whether the issue can be resolved on-site or requires specialist support.

Before beginning any troubleshooting work, ensure the system is isolated in accordance with your site's lockout/tagout procedure and that all relevant safety precautions are in place.

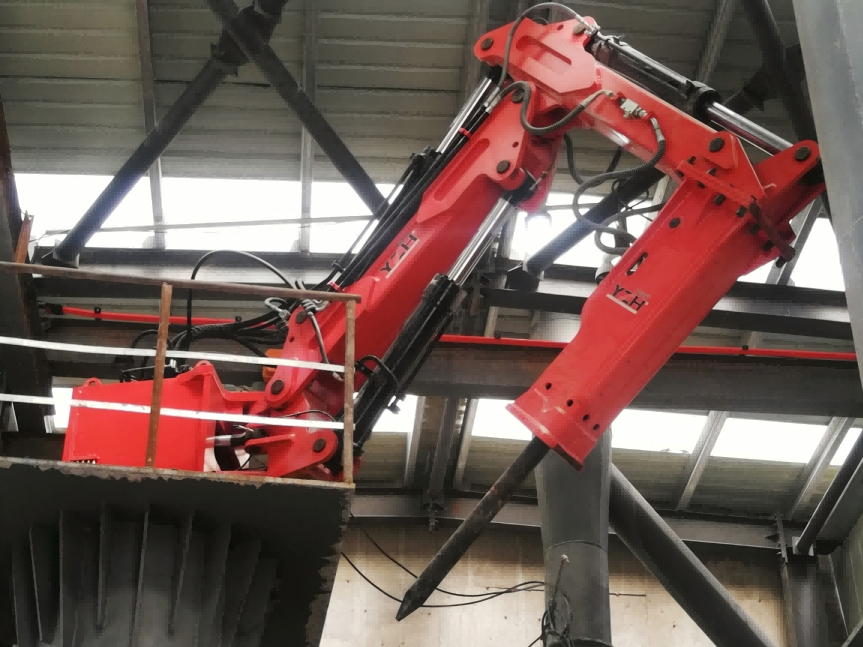

How to Troubleshoot a Pedestal Rock Breaker Boom System: A Field Guide

How to Use This Guide

Start with the symptom you are observing. Each section below is organised by symptom — what you see, hear, or measure — rather than by component. This allows you to go directly to the relevant section without needing to know in advance which component has failed.

The sections are:

Hydraulic System Faults
Hydraulic Hammer Faults
Boom Structure and Cylinder Faults
Control System Faults
Electrical System Faults
Post-Fault Checklist Before Returning to Service

Section 1: Hydraulic System Faults

The hydraulic system — comprising the power unit (HPU), pump, relief valves, directional control valves, hoses, and fittings — is the most common source of faults in a rock breaker boom system. Most hydraulic faults manifest as loss of power, slow movement, or erratic behaviour.

Symptom 1.1 — System Will Not Build Pressure

Possible Cause	Diagnostic Check	Corrective Action
HPU motor not running	Check motor starter, overload relay, and incoming power supply	Reset overload, check fuses, confirm power supply voltage
Pump coupling failed	Listen for pump rotation with motor running; check coupling through inspection cover	Replace coupling insert or full coupling assembly
Pump worn or failed	Check system pressure at pump outlet port with gauge	Replace pump if pressure is below specification
Main relief valve stuck open	Temporarily increase relief valve setting; if pressure builds, valve is faulty	Clean or replace main relief valve
Suction line blocked or collapsed	Inspect suction hose and strainer; check for collapsed hose	Clean strainer, replace collapsed hose
Hydraulic oil level critically low	Check tank level gauge	Top up to correct level; investigate cause of oil loss

Symptom 1.2 — System Pressure Low (Builds but Below Specification)

Possible Cause	Diagnostic Check	Corrective Action
Main relief valve set too low or worn	Check relief valve setting against specification	Adjust or replace relief valve
Pump worn — internal bypass increasing	Compare actual flow output to specification	Replace pump if flow is below specification
Internal leak in directional control valve	Isolate valve and check for bypass flow	Replace valve spool seals or full valve
Hydraulic oil overheating — viscosity too low	Check oil temperature; confirm correct oil grade	Check cooler operation; replace with correct oil grade
Suction restriction — partial blockage	Check suction strainer condition	Clean or replace suction strainer

Symptom 1.3 — Hydraulic Oil Overheating

Possible Cause	Diagnostic Check	Corrective Action
Oil cooler blocked or fan not running	Inspect cooler fins; check fan motor operation	Clean cooler; repair or replace fan motor
Oil level too low — insufficient thermal mass	Check tank level	Top up to correct level
Incorrect oil viscosity grade	Check oil specification against ambient temperature	Drain and refill with correct grade
System operating at excessive pressure	Check relief valve setting	Adjust to specification
Continuous high-duty operation without adequate cooling	Review duty cycle against system design rating	Install supplementary cooling if duty exceeds design
Internal bypass in pump or valve — energy converted to heat	Check pump and valve condition	Replace worn components

Symptom 1.4 — Hydraulic Oil Contamination (Milky or Dark Appearance)

Possible Cause	Diagnostic Check	Corrective Action
Water ingress — milky appearance	Take oil sample for water content analysis	Identify and seal ingress point; drain and refill tank; replace filter
Oxidation — dark colour, burnt smell	Check oil age and operating temperature history	Drain and refill; investigate overheating cause
Particulate contamination — dark, gritty	Take oil sample for particle count analysis	Flush system; replace all filters; identify contamination source
Cooler internal leak — water-cooled systems	Pressure test cooler	Replace cooler if leak confirmed

Note: Contaminated hydraulic oil is one of the leading causes of premature pump, valve, and hammer failure. If contamination is confirmed, do not return the system to service until the oil has been replaced and the contamination source identified and eliminated.

Symptom 1.5 — Hydraulic Hose Failure (Leak or Burst)

Possible Cause	Diagnostic Check	Corrective Action
Hose age and fatigue	Inspect hose outer cover for cracking, abrasion, and bulging	Replace hose; implement scheduled hose replacement programme
Hose chafing against structure	Inspect hose routing for contact points	Reroute hose; install chafe protection
Fitting corrosion or improper installation	Inspect fitting condition and seating	Replace fitting; confirm correct torque on reassembly
System pressure spike exceeding hose rating	Review pressure relief valve setting	Confirm hose pressure rating is adequate; adjust relief valve

Section 2: Hydraulic Hammer Faults

The hydraulic hammer is the highest-wear component in the system. Most hammer faults are related to the percussion mechanism, nitrogen gas charge, or tool and tool bushing wear.

Symptom 2.1 — Hammer Not Firing (No Impact)

Possible Cause	Diagnostic Check	Corrective Action
Hydraulic supply not reaching hammer	Check pressure at hammer inlet port	Trace supply circuit; check directional control valve operation
Nitrogen gas charge depleted	Check nitrogen pressure at charge valve	Recharge to manufacturer's specification
Percussion piston seized	Attempt to cycle hammer slowly; listen for mechanical binding	Disassemble hammer for inspection; replace piston if seized
Control valve in hammer body stuck	Check for contamination in hydraulic supply	Flush supply circuit; disassemble and clean control valve
Tool jammed — blank firing prevention activated	Inspect tool position; confirm tool is in contact with rock	Reposition tool against material; do not operate in blank-fire condition

Symptom 2.2 — Hammer Firing but Low Impact Energy

Possible Cause	Diagnostic Check	Corrective Action
Nitrogen gas pressure low	Check nitrogen pressure at charge valve	Recharge to specification
Hydraulic supply pressure low	Check pressure at hammer inlet	Refer to Section 1.2 — system pressure fault
Hydraulic flow to hammer insufficient	Check flow rate against hammer specification	Confirm HPU pump output; check for flow restriction in supply circuit
Percussion piston or control valve worn	Compare impact energy to new condition baseline	Disassemble for inspection; replace worn components
Incorrect hydraulic oil viscosity	Check oil grade against specification	Replace with correct grade

Symptom 2.3 — Hammer Firing Erratically or Stopping Mid-Operation

Possible Cause	Diagnostic Check	Corrective Action
Blank firing — tool not in contact with material	Observe tool contact during operation	Maintain firm tool contact; do not operate in blank-fire condition
Nitrogen gas pressure fluctuating	Check nitrogen charge valve for leakage	Replace charge valve if leaking; recharge
Hydraulic supply pressure fluctuating	Monitor pressure during operation	Refer to Section 1.2; check for intermittent relief valve opening
Contamination in hammer control valve	Inspect hydraulic oil cleanliness	Flush system; replace oil and filters
Thermal cutout activating — hammer overheating	Check hammer body temperature during operation	Allow hammer to cool; review duty cycle; check hydraulic flow

Symptom 2.4 — Rapid Tool Wear

Possible Cause	Diagnostic Check	Corrective Action
Incorrect tool type for rock hardness	Review tool specification against rock UCS	Change to appropriate tool type (moil point, chisel, or blunt)
Tool bushing worn — allowing lateral movement	Inspect bushing clearance	Replace tool bushing; confirm correct bushing specification
Insufficient lubrication at tool bushing	Check auto-lube system operation; inspect grease nipple	Service auto-lube system; manually grease if auto-lube has failed
Operating at incorrect angle — excessive side load	Observe hammer angle during operation	Train operator to maintain correct perpendicular tool angle
Rock hardness exceeding tool material specification	Obtain rock UCS data and compare to tool specification	Upgrade to higher-grade tool material

Symptom 2.5 — Hydraulic Oil Leaking from Hammer

Possible Cause	Diagnostic Check	Corrective Action
Piston rod seal worn	Identify leak location on hammer body	Replace piston rod seal; inspect piston rod for scoring
Through-bolt O-rings deteriorated	Inspect through-bolt seating areas	Replace O-rings; confirm correct torque on through-bolts
Hammer body cracked	Inspect body for cracks, particularly at port bosses	Replace hammer body; investigate cause (pressure spike, impact damage)
Hose fitting at hammer port leaking	Inspect port fittings	Retighten or replace fitting and sealing washer

For guidance on hammer selection and how to match the hammer to your application to minimise wear and fault frequency, see our article on how to choose the right hydraulic hammer for your breaker boom system.

Section 3: Boom Structure and Cylinder Faults

Symptom 3.1 — Boom Movement Slow or Weak in One or More Axes

Possible Cause	Diagnostic Check	Corrective Action
Hydraulic cylinder internal seal worn	Check for cylinder drift under load with valve centred	Rebuild cylinder with new seal kit
Directional control valve spool sticking	Manually actuate valve spool; check for smooth movement	Clean or replace valve spool
Flow control valve set too restrictive	Check flow control valve setting	Adjust to correct setting per manufacturer specification
Hydraulic supply pressure low	Check system pressure	Refer to Section 1.2
Cylinder rod bent or damaged	Visually inspect cylinder rod for straightness and surface damage	Replace cylinder rod or full cylinder assembly

Symptom 3.2 — Boom Drifting Under Load (Creeping When Controls Are Released)

Possible Cause	Diagnostic Check	Corrective Action
Cylinder internal seal bypass	Isolate cylinder and check for pressure decay	Rebuild cylinder with new seal kit
Load-holding valve (counterbalance valve) leaking	Check valve for internal bypass	Replace counterbalance valve
Directional control valve internal bypass	Check valve for internal leakage	Replace valve spool seals or full valve

Safety note: A boom that drifts under load is a safety hazard. Do not operate the system until the cause has been identified and corrected. Isolate the system and prevent access to the work area until repairs are complete.

Symptom 3.3 — Excessive Play or Knocking at Boom Joints

Possible Cause	Diagnostic Check	Corrective Action
Pin and bushing wear	Measure pin-to-bushing clearance; compare to wear limit	Replace worn pins and bushings
Bushing retaining hardware loose	Inspect retaining bolts and circlips	Retighten or replace retaining hardware
Structural weld cracking at pin boss	Inspect weld areas at all pin boss locations	Repair weld; investigate cause (overload, fatigue)

Symptom 3.4 — Cylinder Rod Corrosion or Surface Damage

Possible Cause	Diagnostic Check	Corrective Action
Inadequate rod wiper seal	Inspect wiper seal condition	Replace wiper seal; clean rod surface
Rod exposed to corrosive environment	Review rod protection specification	Apply rod protection coating; consider stainless rod upgrade
Physical impact damage	Inspect rod for dents, gouges, and scoring	Replace rod if damage exceeds acceptable limits; minor scoring can be polished

Section 4: Control System Faults

Symptom 4.1 — No Response from Controls (Boom and Hammer Unresponsive)

Possible Cause	Diagnostic Check	Corrective Action
Control panel power supply fault	Check control panel power indicator; check fuses	Replace fuse; check incoming supply to panel
Emergency stop activated	Check all e-stop buttons on panel and remote	Release e-stop; confirm reason for activation before resuming
Control system PLC or relay fault	Check PLC status indicators and fault codes	Refer to PLC fault code list; reset or replace faulty module
Wireless remote battery flat	Check remote battery indicator	Replace or recharge battery
Wireless remote signal loss	Check remote-to-receiver distance and obstructions	Move closer to receiver; check antenna connection

Symptom 4.2 — Some Functions Respond, Others Do Not

Possible Cause	Diagnostic Check	Corrective Action
Individual solenoid valve coil failed	Check solenoid coil resistance with multimeter	Replace faulty solenoid coil
Control cable damaged — specific circuit open	Inspect cable routing for damage; check continuity	Repair or replace damaged cable section
PLC output module fault — specific channel	Check PLC output status for affected channel	Replace output module
Joystick or pushbutton contact worn	Test control input signal at PLC input	Replace worn joystick or pushbutton

Symptom 4.3 — Wireless Remote Not Communicating

Possible Cause	Diagnostic Check	Corrective Action
Remote battery depleted	Check battery level indicator	Replace or recharge battery
Remote not paired to receiver	Check pairing status indicator	Re-pair remote to receiver per manufacturer procedure
Radio frequency interference	Check for other radio equipment operating nearby	Change operating frequency channel if system supports it
Receiver antenna damaged	Inspect antenna and connection	Replace antenna
Remote transmitter internal fault	Test with a known-good spare remote	Replace transmitter unit

Section 5: Electrical System Faults

Symptom 5.1 — HPU Motor Will Not Start

Possible Cause	Diagnostic Check	Corrective Action
Incoming power supply fault	Check incoming voltage at motor starter	Investigate supply fault with site electrician
Motor overload relay tripped	Check overload relay status	Reset overload; investigate cause before restarting
Motor starter contactor failed	Check contactor operation	Replace contactor
Motor winding fault	Measure winding resistance and insulation resistance	Rewind or replace motor
Interlock not satisfied	Check all interlocks (e-stop, oil level, temperature)	Identify and resolve unsatisfied interlock condition

Symptom 5.2 — Motor Overload Tripping Repeatedly

Possible Cause	Diagnostic Check	Corrective Action
Overload relay set too low	Check relay setting against motor full-load current	Adjust to correct setting
Motor operating overloaded — hydraulic system fault	Check system pressure and pump condition	Refer to Section 1.1 and 1.2
Motor winding deteriorating	Measure winding insulation resistance	Replace motor if insulation resistance is below limit
Supply voltage low or unbalanced	Measure supply voltage on all three phases	Investigate supply quality with site electrician
Ambient temperature too high — motor cooling inadequate	Check motor temperature during operation	Improve ventilation; consider motor derating

Symptom 5.3 — Solenoid Valve Coil Burning Out Repeatedly

Possible Cause	Diagnostic Check	Corrective Action
Supply voltage too high	Measure voltage at coil terminals	Confirm correct voltage coil is installed; check supply voltage
Coil operating in incorrect ambient temperature	Check coil temperature rating against installation environment	Replace with correct temperature-rated coil
Mechanical valve spool stuck — coil energised continuously	Check valve spool movement	Free or replace stuck spool; investigate contamination
Incorrect coil specification	Confirm coil voltage and frequency match supply	Replace with correct specification coil

Section 6: Post-Fault Checklist Before Returning to Service

After completing any repair, work through this checklist before returning the system to production service:

Hydraulic System

Hydraulic oil level confirmed correct
Hydraulic oil condition confirmed — no contamination, correct colour
All disturbed hose connections checked for leaks at operating pressure
System pressure confirmed at specification
Oil temperature confirmed stable during 15-minute run-in

Hydraulic Hammer

Nitrogen charge pressure confirmed at specification
Hammer fires consistently on test material
No oil leaks from hammer body or port connections
Tool condition inspected — no excessive wear or damage
Tool bushing lubrication confirmed

Boom Structure

All boom movements confirmed smooth and responsive
No drift observed with controls released and boom under load
All pin and bushing joints inspected — no excessive play
All structural fasteners confirmed torqued to specification
No hydraulic leaks from cylinders or fittings

Control System

All control functions confirmed operational from fixed panel
Wireless remote confirmed operational (if fitted)
All emergency stops confirmed functional
All interlocks confirmed operational

Electrical System

All electrical enclosures confirmed closed and sealed
No warning indicators active on control panel
Motor current confirmed within normal range during operation

When to Call the Manufacturer

Some faults are beyond the scope of on-site repair and require manufacturer support or specialist service personnel. Contact your manufacturer when:

The percussion mechanism requires disassembly beyond tool and seal replacement
Structural cracking is found in the boom body or pedestal
The control system PLC requires firmware update or replacement
Hydraulic pump replacement is required and you are uncertain of the correct specification
The fault cannot be identified using this guide and the system remains non-functional

When contacting the manufacturer, have the following information ready:

System model and serial number
Date of installation and total operating hours
Description of the fault symptom and when it first appeared
Any fault codes displayed on the control panel
Any recent maintenance work or modifications

YZH provides technical support for all systems we manufacture. If you are operating a YZH rock breaker boom system and require troubleshooting assistance, contact our after-sales team directly:

Phone / WhatsApp:+86-15610128027Email:yzh@breakerboomsystem.comOnline:Submit a support request

Preventing Faults: The Link Between Maintenance and Reliability

The majority of faults described in this guide are preventable through a structured preventive maintenance programme. Hydraulic oil contamination, hose failures, pin and bushing wear, and hammer seal deterioration are all progressive conditions that can be identified and corrected before they cause a system shutdown — if the maintenance programme is being followed.

For a complete preventive maintenance schedule covering all four maintenance zones of a pedestal rock breaker boom system, see our article on how to maintain a pedestal rock breaker boom system.

For guidance on selecting a system with the reliability and serviceability characteristics that minimise fault frequency in the first place, see our article on how to choose a reliable rock breaker boom manufacturer in China.

FAQ

Q: My hydraulic hammer was working fine yesterday and has stopped firing today. Where do I start?

A: Start with the simplest checks first. Confirm the HPU is running and system pressure is at specification (Section 1.1). Then check the nitrogen gas pressure on the hammer (Section 2.1). These two checks resolve the majority of sudden hammer stoppage faults. If both are normal, move to the control system (Section 4.1) to confirm the hammer control signal is being sent.

Q: The boom moves but is very slow on one axis only. What is the likely cause?

A: A single-axis slow movement fault most commonly indicates a cylinder internal seal bypass (Section 3.1) or a directional control valve spool sticking on that specific circuit. Check for cylinder drift with the controls released — if the boom drifts on that axis, the cylinder seals are the likely cause.

Q: We keep burning out solenoid coils on the same valve. What is causing this?

A: Repeated coil burnout on a specific valve usually indicates either incorrect supply voltage, a mechanically stuck valve spool keeping the coil energised continuously, or an incorrect coil specification. See Section 5.3 for the full diagnostic sequence.

Q: How do I check the nitrogen gas pressure on my hydraulic hammer?

A: The nitrogen charge valve is typically located at the back end (top) of the hammer body, protected by a threaded cap. Use a dedicated nitrogen charging kit with a calibrated gauge — do not use compressed air. The correct charge pressure is specified in your hammer service manual and varies by hammer model and ambient temperature. Contact YZH if you do not have the correct charge pressure specification for your hammer model.

Q: The boom is drifting slowly downward when I release the controls. Is this dangerous?

A: Yes. Boom drift under load is a safety hazard and must be investigated immediately. Isolate the system and prevent access to the work area. The most common causes are cylinder internal seal bypass or a faulty counterbalance valve (Section 3.2). Do not return the system to service until the cause has been identified and corrected.

Q: Our rock breaker boom system is from a different manufacturer. Is this guide still useful?

A: The fault categories, symptoms, and diagnostic logic in this guide apply to all pedestal rock breaker boom systems regardless of manufacturer, as the fundamental hydraulic, mechanical, and electrical principles are the same. However, always refer to your specific manufacturer's service manual for component specifications, torque values, and pressure settings before performing any repair work.

Conclusion

Fast, accurate fault diagnosis is the difference between a 30-minute repair and a half-day shutdown. The structured approach in this guide — starting from the observed symptom, working through the most likely causes in order of probability, and confirming the diagnosis before beginning repair — minimises diagnostic time and reduces the risk of misdiagnosis.

Keep this guide accessible to your maintenance team and operators. The best time to read it is before a fault occurs, not during one.

For the complete preventive maintenance programme that reduces fault frequency in the first place, see our article on how to maintain a pedestal rock breaker boom system.

For technical support on a YZH system, contact our after-sales team at any time: +86-15610128027 or yzh@breakerboomsystem.com
